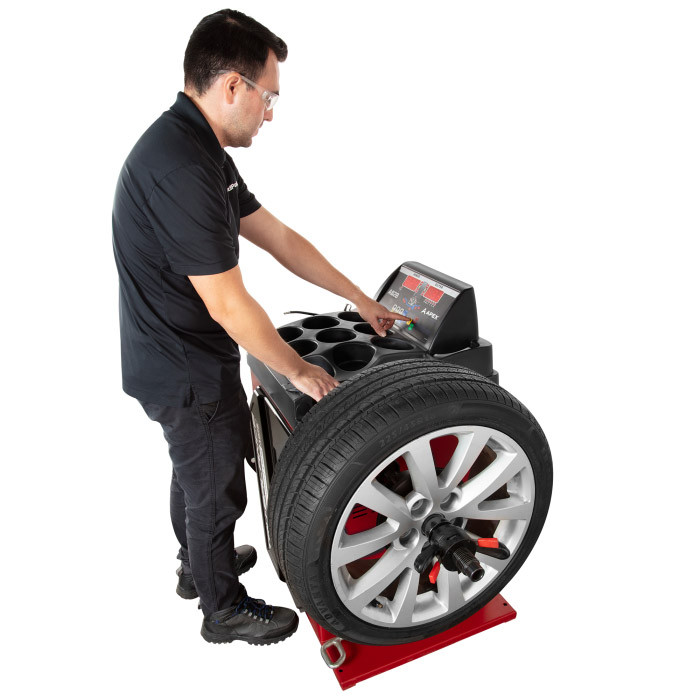

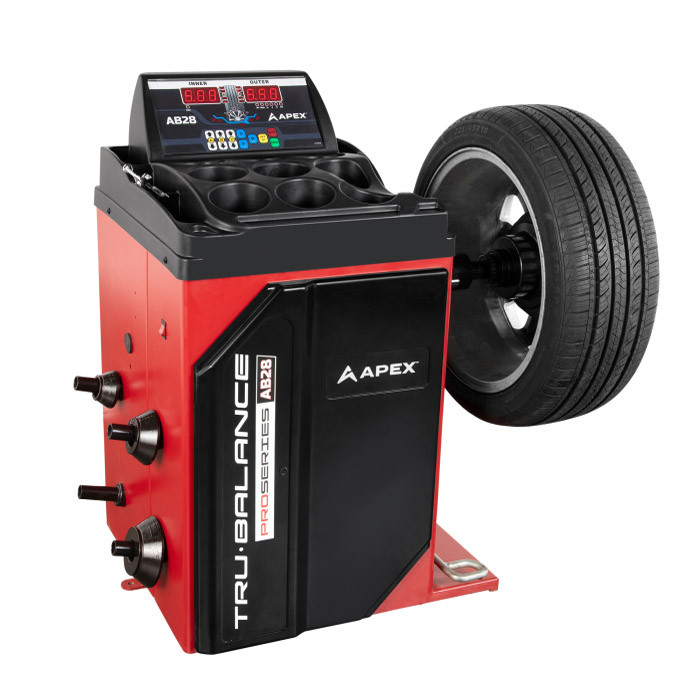

AB28 Wheel Balancer
- Advanced Digital Sensor Technology
Delivers fast, repeatable balance accuracy down to hundredths of an ounce. - Multi-Directional Quartz Load Sensors
Measures imbalance forces across multiple axes for consistent, precise results. - Direct-Axis Drive System
Provides smooth, vibration-free rotation for accurate measurement. - Fast Balance Cycle Times
Improves shop throughput and reduces vehicle wait times. - Graphic User Interface
Intuitive display guides technicians through data entry and balancing procedures. - LED Weight Placement Indicators
Clearly guides exact clip-on, tape, and split-weight placement. - No-Mar Quick-Nut Mounting System
Speeds wheel mounting while helping protect wheel finishes. - Comprehensive Cone Package Included
Supports a wide range of passenger, light truck, and performance wheels. - Automatic Wheel Braking
Holds the wheel precisely at weight placement positions. - Heavy-Duty Shaft and Rigid Construction
Ensures stable operation and long-term durability under daily use.
Motor
0.5 HP / 0.37kw 110/220V
Cycle Time
5 - 7 Seconds (avg.)
Balancing Modes
Dynamic / Static / 3-Alloy
Drive System
Belt Drive
Wheel Braking
Foot Pedal
Cones Included
Single-Plane / 4 pcs
Max. Tire Diameter
44" (1,118 mm)
Max. Tire Weight
145 lbs. (65 kg)
Wheel Diameter Capacity
12" - 28" (305 mm - 711 mm)
Wheel Width Capacity
4" - 15" (102 mm - 381 mm)
Balancing Increments
0.25 or 0.01 oz
Balancing Speed
260 RPM
Accuracy
+/- 1 gram (.035 oz)
Resolution
0.01 ounce, 1.4°
Shipping Weight
276 lbs. (125 kg)
Shipping Dimension
38" x 30" x 46" (965 mm x 762 mm x 1,168 mm)
Specifications
Power 110V
Type Wheel Balancer
Phase 1-Ph
Frequency 50/60HZ
