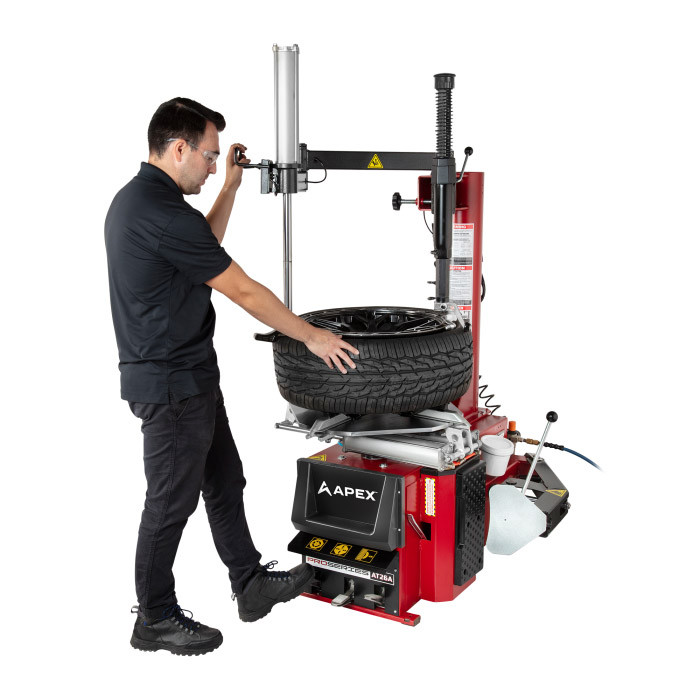

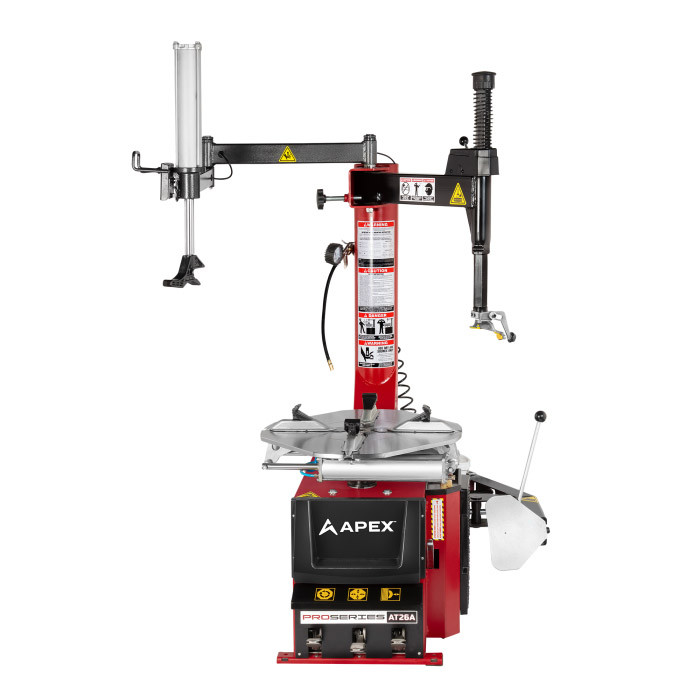

AT26A Swing-Arm Tire Changer with Assist Tower
- High-Torque Electric Turntable Drive
Provides smooth, controlled rotation with reversible direction for precise mounting and demounting on modern tire designs. - Pneumatic Assist Tower
Stabilizes stiff, low-profile, and heavy tires while holding beads in the drop center for safer, easier installation. - High-Power Bead Breaking System
Oversized pneumatic cylinder delivers fast, consistent bead loosening on stubborn tire assemblies. - Multi-Axis Adjustable Bead Breaker Blade
Allows optimal approach angles for a wide range of wheel and tire combinations while reducing flex and wear. - Spring-Assisted Tool Shaft and Rigid Swing Arm
Ensures precise tool positioning with minimal deflection, improving repeatability and reducing wheel damage risk. - Dual Mount and Demount Heads Included
Includes both hardened steel and polymer heads so technicians can choose durability or wheel protection as needed. - Wheel Protection Components Standard
Plastic clamp covers and protective accessories are included to prevent metal-to-metal contact on delicate wheels. - Brushless AC Motor
Delivers consistent power with reduced heat, noise, and long-term maintenance requirements. - Maintenance-Free Gearbox
Sealed lubrication system ensures smooth operation and long service life without routine servicing. - Ergonomic Control Layout
Upfront, intuitive controls improve workflow efficiency and reduce operator fatigue.
Assist Arm
Central Assist Arm
Drive System Type
Electric / Air
Internal Rim Clamping
12" - 24" (305 mm - 610 mm)
External Rim Clamping
10" - 22" (254 mm - 559 mm)
Turntable Tire Width Capacity (Mounting)
15" (381 mm)
Bead Breaker Tire Width Capacity (Demounting)
14" (356 mm)
Max. Tire Diameter
50" (1,270 mm)
Product Dimensions
50" L x 38" W x 39" H
(1270 mm x 965 mm x 991 mm)
(1270 mm x 965 mm x 991 mm)
Motor
1.1KW 110/220V
Air Inflation Indicator
Hand-held inflation gauge
Specifications
Power 110V
Type Tire Changer
Style Swing Arm
Phase 1-Ph
Frequency 50/60HZ
