Style

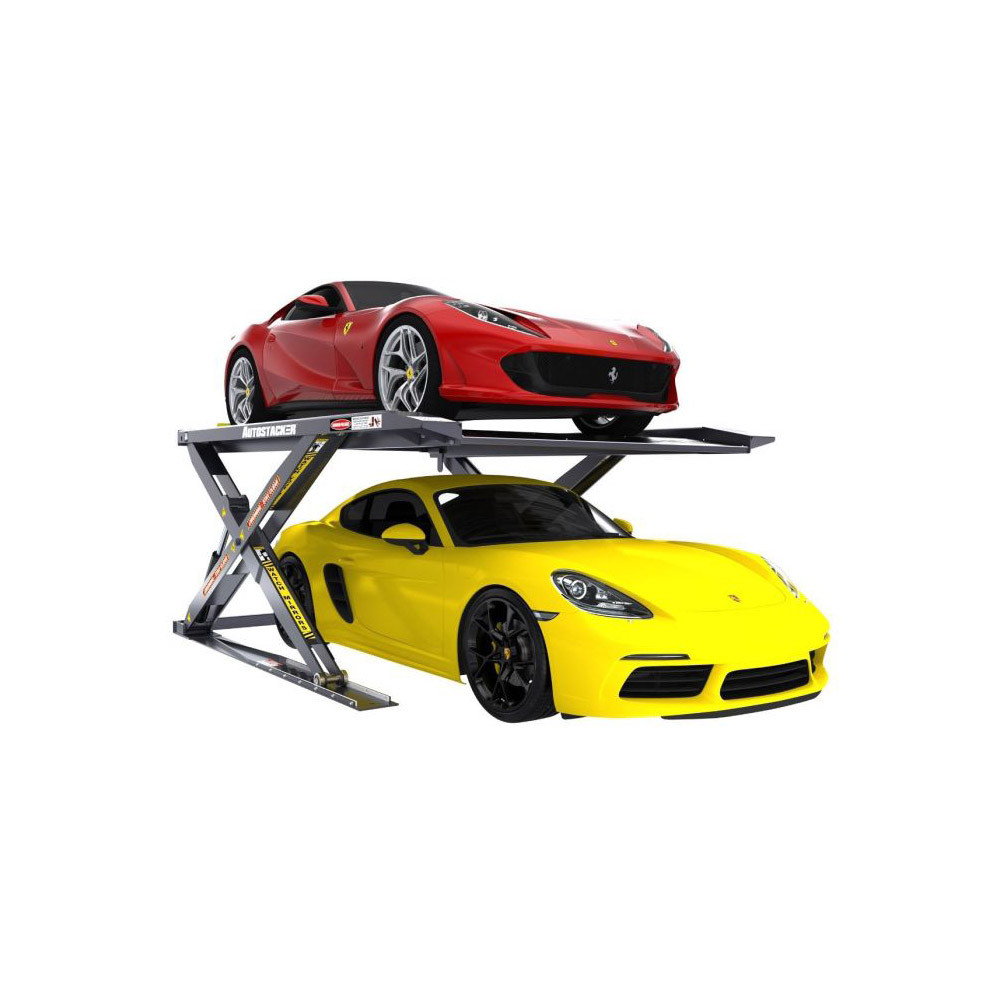

| Style: | Multi-Platform Parking Lift |
Capacity
| Model: | Autostacker A6W-OPT1-G |
| Description: | 6K Capacity Parking Lift / WIDE / STD Console w/PU / Galvanized / 208-240V, 50/60HZ, 1-Phase |
| Lifting Capacity: | 6,000 lbs. (2,722 kg) |
| Finish: | Galvanized Steel |
| Overall Width: | 111" (2,815 mm) |
| Overall Length: | 144" (3,658 mm) |
| Platform Length: | 124" (3,150 mm) |
| Platform Width: | 91.75" (2,331 mm) |
| Platform Height (Forward): | 13" (330 mm) |
| Ramp Height (Entry): | 2" (51 mm) |
| Maximum Underclearance: | 80" (2,032 mm) |
| Under Clearance on 1st Lock (Lowest): | 52.5" (1,331 mm) |
| Under Clearance on 2nd Lock: | 60.75" (1,543 mm) |
| Under Clearance on 3rd Lock: | 68.5" (1,736 mm) |
| Under Clearance on 4th Lock: | 75" (1,909 mm) |
| Under Clearance on 5th Lock (Highest): | 81.25" (2,064 mm) |
| Motor: | 208-240V, 50/60HZ, 1-Phase |
| Control Console: | STD Console w/PU |
| Noise: | 52 dB |
| Shipping Weight: | 3,350 lbs. (1,530 kg) |
| Shipping Dimensions: | 144" x 28" x 30" (3,657 mm x 711 mm x 762 mm) |
Specifications
Capacity 6000
Design Scissor
Type Parking
