Autel MS909CV : MaxiSYS Heavy Duty Commercial Diagnostic Tablet Scanner

Name: Autel MS909CV : MaxiSYS Heavy Duty Commercial Diagnostic Tablet Scanner
Brand: Autel
SKU: MS909CV
Price: 5450 USD
Availability: InStock

Autel

$5,450.00

Write a Review

SKU:: MS909CV
UPC:: 849438002114
Shipping:: Free Shipping
Type:: Diagnostics Tablet
Application:: Commercial / Heavy Duty
Category:: Diagnostics Tablets

Product Description

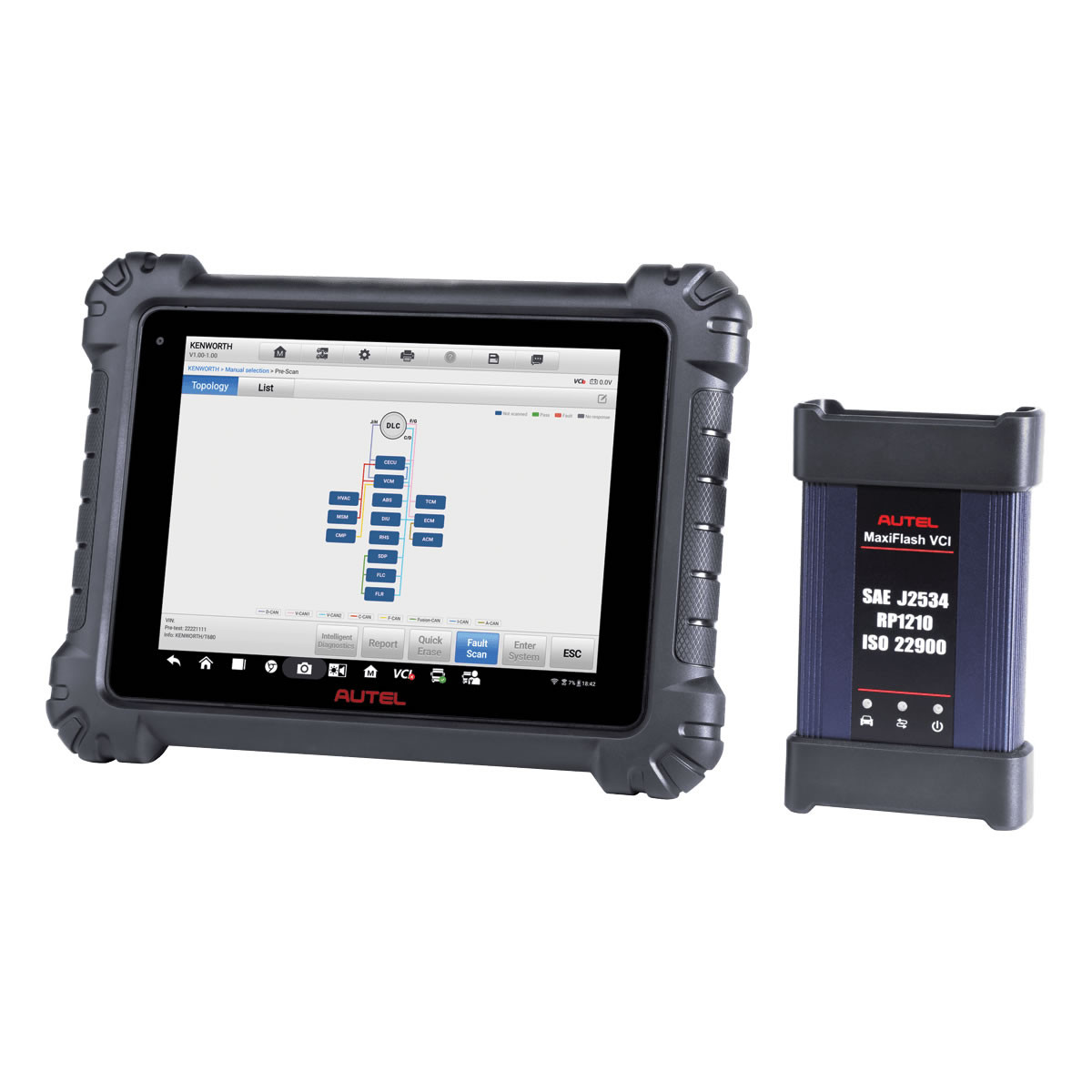

The Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tablet compatible with 80+ models of light, medium and heavy-duty vehicles. The 9.7-inch wireless Android-based touchscreen tablet performs extensive diagnostics including the ability to read/erase codes, view/graph live data, and perform active tests. The tablet includes a Bluetooth-enabled vehicle communication interface (VCI)/J2534 pass-thru programmer, the MaxiBAS B200 battery/starting/charging system test device, alligator clamps, multimeter and amp clamps. The tablet also includes ADAS Calibration Software for Class 3-5 vehicles and Class 6-8 vehicles with dynamically calibrated systems. The MS909CV includes one-year limited warranty and a year of free software updates.

Features:

MaxiSYS MS909CV performs enhanced system diagnostics on more than 80 models of light, medium, and heavy duty commercial vehicles
9.7-inch Wireless Android-Based Touchscreen Diagnostics Tablet
Octa-core Processor / 128 GB Storage Memory
Wireless Vehicle Communication Interface (VCI)/J2534 passthru programming device
Topology Module Mapping, Guided Repair, Detailed Repair information including TSB and OE Campaigns
Performs Starting and Charging Systems Analysis with included MaxiBAS B200 tester with alligator clamps
Includes Multimeter & Amp Clamp
ADAS Calibration Software for Class 3-5 vehicles and Class 6 to 8 Vehicles with Dynamically Calibrated Systems
Rapid Vehicle Identification via VINscan and AutoVin
Includes One Year Limited Warranty and Free Software Updates

Specifications
Product Videos
Specifications

Specifications

Operating System	Android 7.0
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	Dual Wi-Fi (802.11 a/b/g/n/ac 2×2 MIMO) BT V5.0 + BR/EDR GPS USB 2.0 (2 USB TYPE-A ports and a Mini USB port) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 16 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jac
Power and Battery	15000mAH 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/1.3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight	1.66kg (3.66 lb.)
Protocols	oIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
