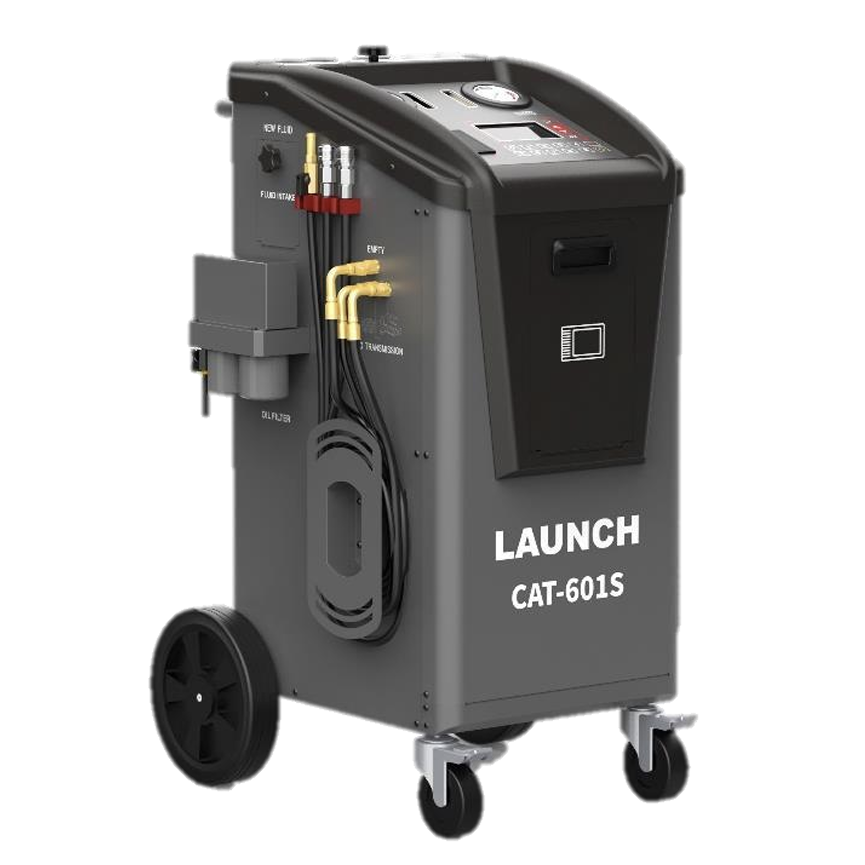

Launch CAT-601S : Automatic Transmission Cleaning and Oil Change Machine, 110V

Product Description

Key Product Features:

• Automatic transmission cleaning and fluid exchange: Combines gearbox circulation cleaning, used-fluid removal, new-fluid installation, and fluid-level adjustment in one mobile service machine.
• 110V shop operation: This configuration operates on 110V/60Hz power for compatibility with North American automotive service facilities. The product platform is also offered in a 220V/50Hz version in other markets.
• High-accuracy equivalent exchange: Integrated weight and volume measurement help the machine replace used fluid with a closely matched quantity of new ATF.
• ±100 ml exchange accuracy: Manufacturer literature specifies an equivalent fluid-exchange error of approximately ±100 ml.
• Automatic fluid-flow recognition: Identifies transmission-fluid circulation direction, reducing connection errors and simplifying machine setup.
• Guided operating procedure: The user interface leads the technician step by step through sampling, detergent addition, cleaning, fluid exchange, and level adjustment.
• Cycle cleaning with detergent: Allows a suitable transmission cleaning agent to be introduced before fluid replacement to help circulate and remove deposits from the gearbox system.
• Automatic cleaning cycle: Once detergent is added and the vehicle is running, the system can perform a circulation-cleaning process while the technician shifts through the transmission ranges according to the service procedure.
• Old-fluid sampling: A dedicated outlet lets technicians collect a transmission-fluid sample before or after service for visual inspection or testing.
• New and used fluid comparison: Illuminated sight indicators allow technicians to observe fluid flow and compare the condition and color of incoming and outgoing ATF.
• Automatic used-fluid collection: Old transmission oil is directed into the machine’s used-fluid tank during the exchange process.
• Fluid-level adjustment: Supports adding or removing ATF after the exchange to establish the correct transmission-fluid level according to the vehicle service procedure.
• Add and reduce fluid functions: Dedicated operating modes allow technicians to increase or decrease the transmission fluid quantity after servicing.
• Direct-input exchange mode: Lets the operator manually enter the amount of ATF to be exchanged when a vehicle database selection is not used.
• Vehicle-selection mode: Supports setup using stored vehicle and transmission information for more efficient service preparation.
• Optional ATF database: Provides vehicle, transmission, fluid specification, capacity, and adapter-reference information to help technicians prepare for the service.
• Frequently used vehicle storage: Allows commonly serviced vehicle information to be saved for faster access during future transmission services.
• Expandable vehicle database: Technicians can add vehicle or transmission entries to the machine’s menu when required.
• History records: Stores completed service information for review, workflow tracking, and customer documentation.
• Integrated printer support: The system can print exchange information, including the quantity of new fluid installed and related service results.
• Filter replacement warning: Monitors filter condition or service intervals and alerts the technician when filter maintenance is required.
• 5-micron filtration: Manufacturer technical literature specifies fine filtration down to 5 microns to help protect the machine and transmission during fluid circulation.
• Pressure monitoring: Integrated pressure gauges help technicians observe transmission-fluid outlet and return conditions during operation.
• Temperature monitoring: Monitors transmission-fluid temperature to support proper fluid exchange and level-setting procedures.
• Approximately 2 L/min pump performance: Manufacturer literature lists pump efficiency at approximately 2 liters per minute.
• 150-watt maximum power: The CAT-601S is rated at approximately 150 watts maximum power.
• Near-complete fluid replacement: Launch states that a correctly performed flush can replace nearly all old fluid, including fluid held in the transmission, torque converter, and cooler lines.
• Efficient service cycle: Manufacturer literature indicates that a complete transmission-fluid change can be performed in approximately 20 minutes under suitable service conditions.
• Dual-clutch and CVT compatibility: Optional adapter packages expand coverage to many conventional automatic, dual-clutch, DSG, and CVT transmission systems.
• Broad vehicle coverage: Available adapter packages support numerous European, Asian, and North American vehicle manufacturers.
• Optional CAT remote control: Compatible Launch X-431 diagnostic devices can control selected machine functions through the optional CAT application and activation package.
• Wi-Fi connectivity: Supports compatible connected functions, database access, and equipment integration.
• USB and serial updates: Launch literature states that equipment updates can be completed through USB or serial connections.
• Multilanguage interface: Provides multiple language settings to support technicians in professional service environments.
• Mobile workshop design: Large rear wheels, front swivel casters, an integrated handle, and organized hose storage make the machine easier to move between service bays.
• Machine dimensions: Approximately 590 × 700 × 1,037 mm, or about 23.2 × 27.6 × 40.8 inches.
• Low operating noise: Manufacturer specifications list a sound level of approximately 70 dB(A).
• Professional applications: Ideal for automotive dealerships, transmission specialists, independent repair shops, fleet maintenance departments, quick-service facilities, and vocational automotive programs.
