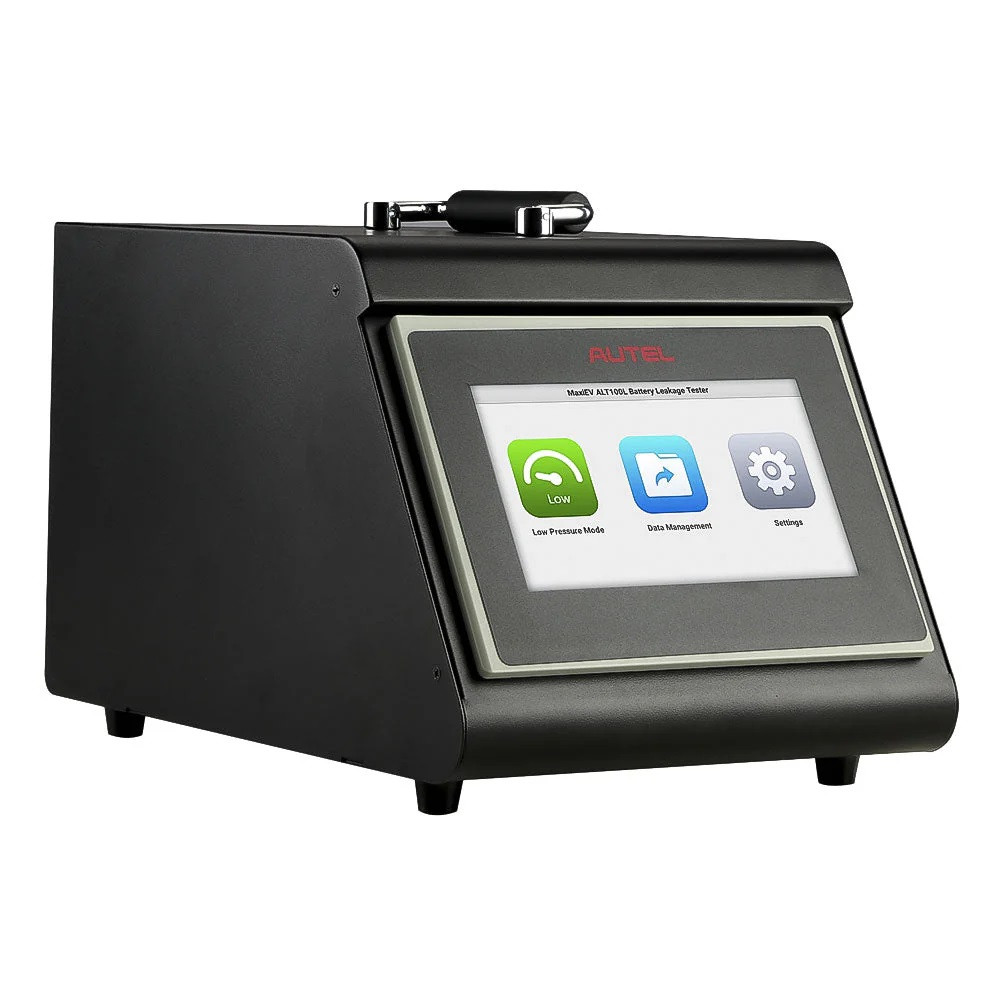

Autel MaxiEV ALT100L : EV Battery Leakage and Airtightness Tester with Dual Pressure Display

Product Description

Key Product Features:

• Manufacturer model: MaxiEV ALT100L.
• Designed for EV battery leakage and airtightness testing.
• Tests high-voltage battery-pack enclosures for sealing integrity.
• Suitable for checking high-voltage thermal-management systems.
• Can be used to test coolant-system and air-conditioning-system components for leaks.
• Uses controlled compressed air for clean, nondestructive testing.
• Test pressure range: 0–30 kPa.
• High-sensitivity pressure sensor improves test stability and accuracy.
• Sensor resolution: 1 Pa.
• Test accuracy: ±5 Pa.
• Maximum test power consumption: 20W.
• Dual pressure display shows current pressure and leakage fluctuation simultaneously.
• Displays the pressure dial and test curve on the same screen.
• Large 7-inch color LCD touchscreen.
• On-screen display tracks the complete test process.
• Visual test curve helps technicians monitor pressure changes over time.
• Displays the progress time for each testing stage.
• Supports customizable battery-pack ID information.
• Allows technicians to enter battery-pack volume.
• Adjustable target test pressure.
• Customizable inflation, holding and testing times.
• Adjustable leakage and alarm parameters.
• Automatically remembers previously used test settings.
• Stored parameters simplify repeat tests and adjustment procedures.
• Audible and visual alarms indicate abnormal or failed tests.
• Built-in safety notifications help technicians respond to unsuccessful testing conditions.
• Internal memory stores test information.
• Test data can be exported through a USB drive.
• Supports saving test-result screenshots for reports.
• RS-232 and USB communication ports.
• Wi-Fi supports online system updates.
• Optional cloud-platform functions may support remote data transmission and management.
• Supports barcode-scanner connection for battery-pack ID entry.
• Software and system updates can be installed through downloaded files.
• Power supply: AC 220V.
• Required air supply: 0.1–1.0 MPa dry compressed air.
• Air inlet connection: 6 mm air pipe.
• Test-port connection: 6 mm air pipe.
• Operating humidity: 10%–90% at 25°C, non-condensing.
• Compact dimensions: approximately 280 × 300 × 200 mm.
• Lightweight design weighs approximately 3.5 kg.
• Suitable for EV repair facilities, battery-service centers, dealerships and specialized automotive workshops.
• Helps technicians confirm enclosure integrity after battery repairs or disassembly.
• Supports pollution-free, quick and repeatable battery-pack testing.
• Main unit includes integrated data acquisition and processing systems.

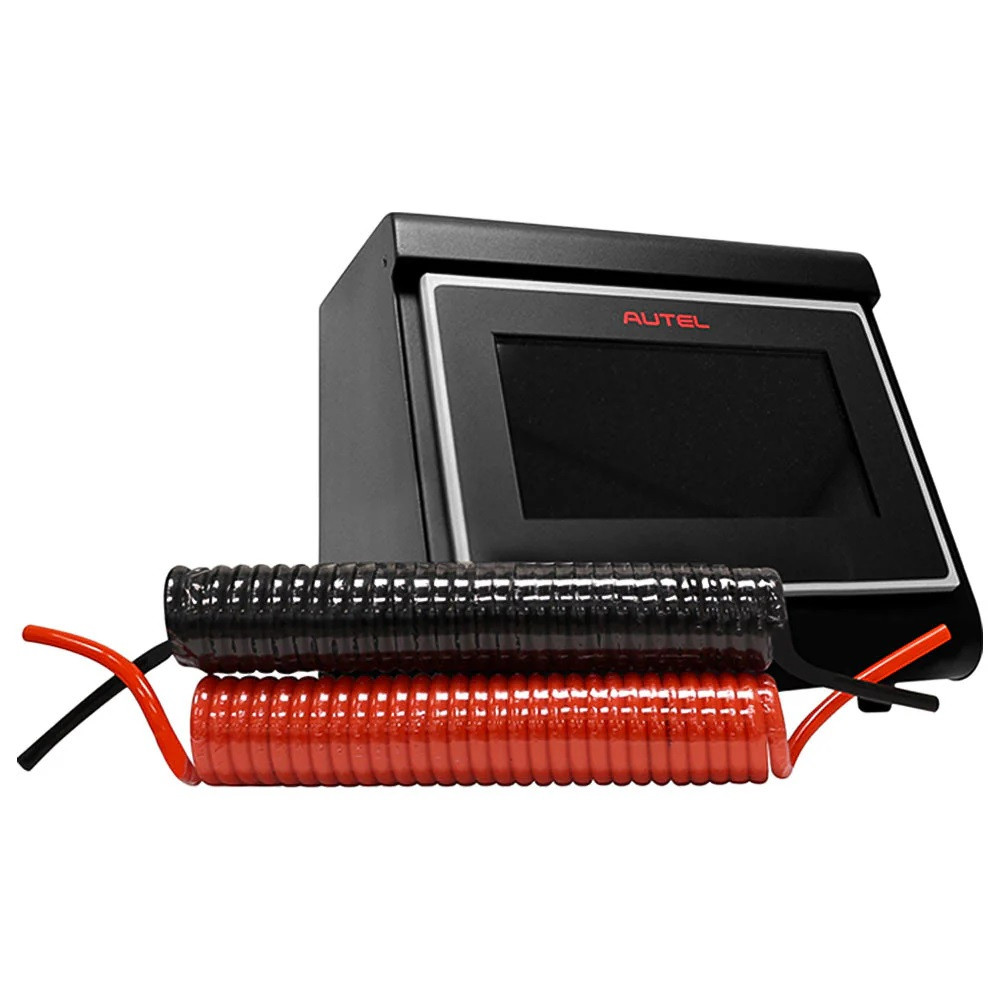

• Supplied equipment may include the main tester, air inlet pipe, test pipe, AC power cable, USB drive, user manual and carrying case.
• Operators should use dry, clean compressed air and follow all manufacturer safety instructions.
