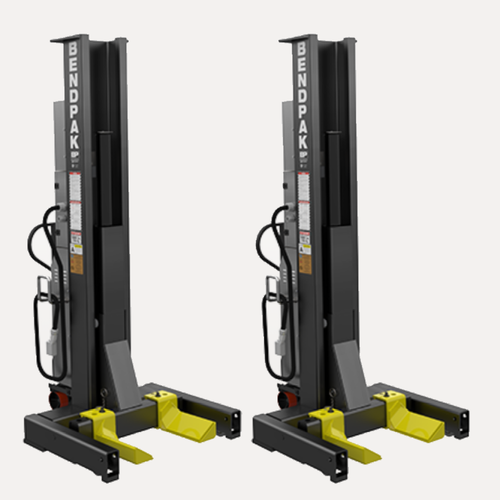

BendPak PCL-18B-2 : 18,000 LB Mobile Column Lift (Set of 2)

Name: BendPak PCL-18B-2 : 18,000 LB Mobile Column Lift (Set of 2)
Brand: BendPak
SKU: 5175291
Price: 31495 USD
Availability: InStock

BendPak

$31,495.00

Write a Review

SKU:: 5175291
Capacity:: 36000

Product Description

36,000-lb. Capacity / Mobile Lift System / 208-230-190V, 50-60 Hz / 3 Ph / Set of 2 / This PCL-18B mobile column lift system comes in a set of 2. When combined, the system lifts up to 36,000 lbs. A set of 2 is the perfect way to expand your lifting capabilities on vehicles with three or four axles. Sets of 4, 6 and 8 are also available.

18,000-lb. individual column capacity / 108,000-lb. maximum system capacity
Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
208-240V, 3-phase main power system - optional voltages available upon request
SINGLE, PAIR or TEAM operation
For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions
Simple operation, long service life and minimum maintenance
Intuitive controls allow the lift to be fully programmed and controlled from any column
Control systems feature 24-volt safety circuitry
The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls, which can be very expensive to service or replace
Smart electronics feature self-diagnostics and self-calibration functions
Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting
Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights
Two-speed lowering option – turtle or rabbit speed settings
Each column is equipped with a warning light and audible alarm for critical warning alerts
Emergency shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator
Separate key lock enclosure on each column
Electronics are multi-fuse protected
An enclosed electric-hydraulic power system that ensures quieter operation is better suited for sound-sensitive areas
Pallet-jack style steering wheels enable the columns to be lowered firmly on the floor vs. constantly loaded spring-type steering wheels that can cause columns to roll when unladen by the weight of a vehicle
Low-mounted power units and cylinders means a lower center of gravity, making the columns easier to move and less likely to topple vs. screw-drive systems with heavy overhead motors and drive systems
Extended forks accommodate wide tires and deep wheel configurations
Multi-width wheel forks with locking pins accommodate the widest range of wheels, eliminating the need for specialty wheel adapters
Tandem 8” diameter polyurethane covered steel wheels with sealed roller bearings easily roll over dirt and debris
Heavy-duty steel carriage rollers feature turned, ground and polished axle pins
Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks
Durable forklift pockets provide simplistic handling when moving the lift columns from one facility to another
Inverted hydraulic cylinders feature an integrated safety valve to prevent accidental uncontrolled lowering in the event of oil pressure loss
Multiple, automatic, independent safety locks spaced every four inches ensure safe operation
Space-saving design, reduced column weight and a tight turning radius provides improved mobility
Use the lift to place vehicles on tall jack stands then use the columns to raise another vehicle in an adjoining bay
Durable powder coat finish

Specifications

Lifting Capacity

18,000 lbs. (8,165 kg)

A - Overall Height (RAISED)

101” (2,565 mm)

B - Overall Height (LOWERED)

146.5” (3,721 mm)

C - Max. Lifting Height

71.5” (1,889 mm)

D - Overall Depth

48.75” (1,238 mm)

E - Overall Width

45” (1,143 mm)

F - Chassis Length

32.25” (819 mm)

G - Min. Lifting Fork Width

9.5” (241 mm)

H - Max. Lifting Fork Width

35” (889 mm)

I - Lifting Fork Length

11.5” (292 mm)

Power System (Motor)

208-240V, 3-Phase

Turning Circle

Turning Circle

Column Weight

1,450 lbs. (657 kg)

Lifting Speed

85 sec

Shipping Weight per Column

1,450 lbs. (657 kg)

Shipping Dimensions per Column

106'' x 55'' x 41'' (2,696 mm x 1,397 mm x 1,041 mm)

Specifications

Capacity 36000
