Style
Style:

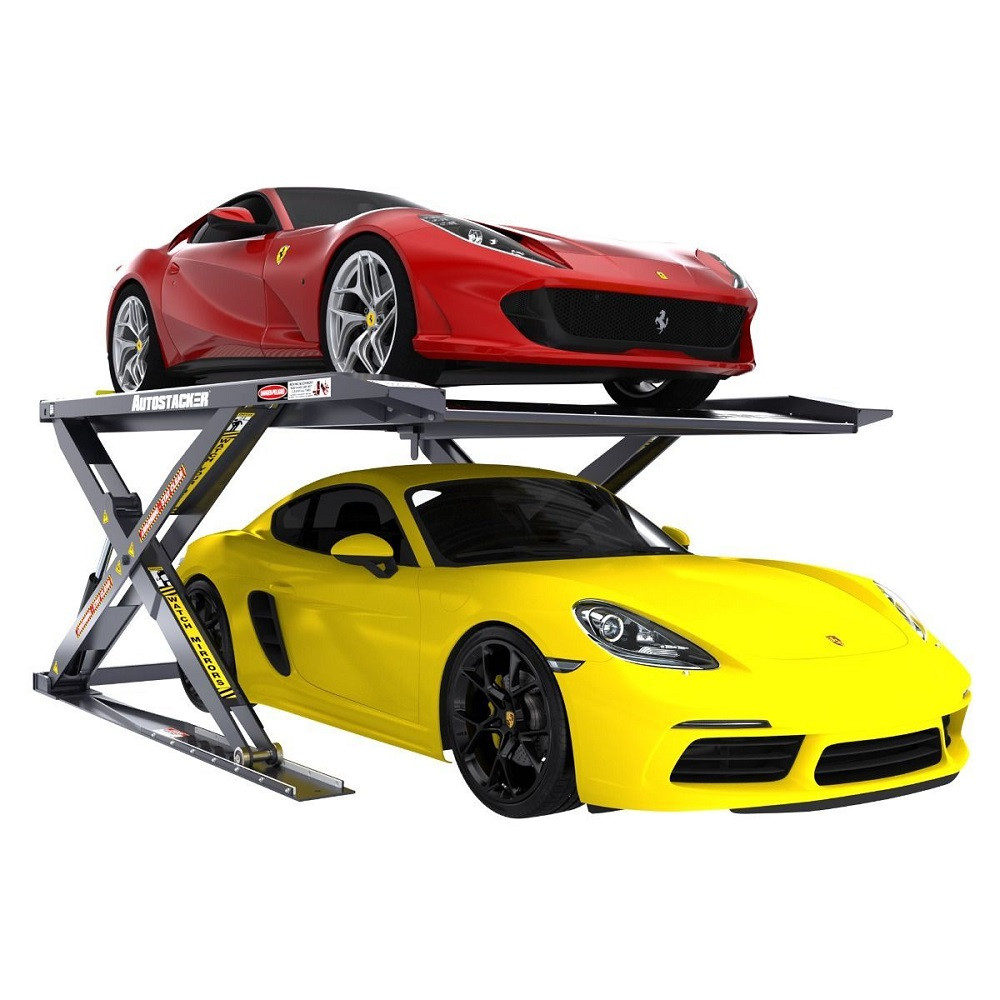

Multi-Platform Parking Lift
Capacity
Lifting Capacity:
6,000 lbs. (2,722 kg)
Overall width:
111” (2,815 mm)
Overall length:
144” (3,658 mm)
Platform length:
124” (3,150 mm)
Platform width:
91.75” (2,331 mm)
Platform height (forward):
13” (330 mm)
Ramp height (entry):
2” (51 mm)
Maximum underclearance:
80” (2,032 mm)
Under clearance on 1st lock (lowest):
52.5" (1,331 mm)
Under clearance on 2nd lock:
60.75" (1,543 mm)
Under clearance on 3rd lock:
68.5" (1,736 mm)
Under clearance on 4th lock:
75" (1,909 mm)
Under clearance on 5th lock (highest):
81.25" (2,064 mm)
Motor:
208-240V, 50/60 Hz / 1 Ph
Noise:
52 dB
Shipping weight:
3,350 lbs. (1,530 kg)
Shipping Dimensions:
144'' x 28'' x 30'' (3,657 mm x 711 mm x 762 mm)
Specifications
Capacity 6000
Design Scissor
Type Parking
Overall width 111”
Overall length 144”
