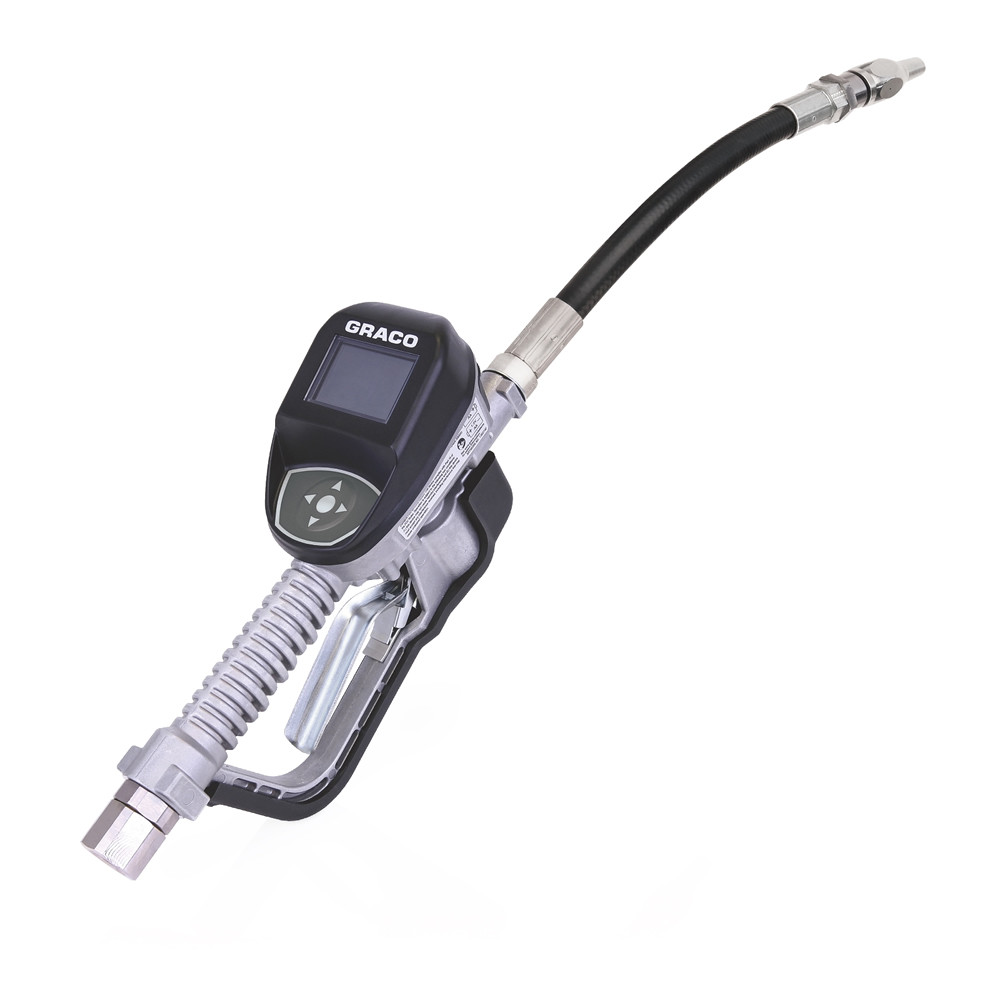

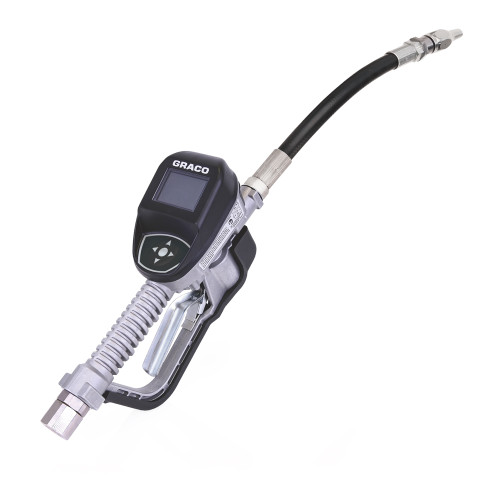

Graco 26C354 : SDP8 1/2" Inlet Electronic Preset Oil Meter

Name: Graco 26C354 : SDP8 1/2" Inlet Electronic Preset Oil Meter
Brand: Graco
SKU: 26C354
Price: 1155.84 USD
Availability: InStock

Graco

$1,155.84

Write a Review

SKU:: 26C354
Shipping:: Free Shipping
Extension Type:: Flexible
GPM:: 8
Inlet Size:: 1/2 in.

Product Description

Graco's premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

Features:

Upgradeable”SD Preset meters are compatible with PULSE FC fluid control system
Large, Intuitive Display”high-contrast display for low and bright light conditions
Long valve life”cartridge spool valve specifically designed to reduce wear and reduce costly down time
Ergonomic”four-finger trigger and easy-to-use button pad reduce worker fatigue
Reliable”time-tested Graco engineering
Durable”Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
Long battery life”uses 4 AA easy-to-replace batteries

Specifications
Specifications

Specifications

Technical Specifications

COMPATIBLE MATERIAL	Oil, ATF
DISPENSE TYPE	Preset
DISPLAY TYPE	Electronic
EXTENSION TYPE	Flexible
FLUID INLET THREAD GENDER	Female
FLUID OUTLET THREAD GENDER	Female
INCLUDES	喷嘴,柔性扩展, ノズル、フレックスエクステンション, Nozzle, Flexible Extension, Boquilla, extensión flexible, 노즐, 연성 연장
INLET SIZE (CM)	1.27
INLET SIZE (IN)	1/2
INLET SIZE (MM)	12.7
INLET THREAD TYPE	NPT
MAXIMUM FLOW RATE (GPM)	8
MAXIMUM FLOW RATE (L/MIN)	30
MAXIMUM OPERATING TEMPERATURE (°C)	70
MAXIMUM OPERATING TEMPERATURE (°F)	158
MAXIMUM RECORDED DISPENSE	9999
MAXIMUM STORAGE TEMPERATURE (°F)	158
MAXIMUM STORAGE TEMPERATURE (°C)	70
MAXIMUM WORKING PRESSURE (PSI)	1500
MAXIMUM WORKING PRESSURE (KPA)	10340
MAXIMUM WORKING PRESSURE (BAR)	103.4
METER ACCURACY (%)	±0.5
OVERALL HEIGHT (CM)	14.6
OVERALL HEIGHT (IN)	5.75
OVERALL HEIGHT (MM)	146
OVERALL LENGTH (CM)	33
OVERALL LENGTH (IN)	13
OVERALL LENGTH (MM)	330
OVERALL WIDTH (CM)	9.5
OVERALL WIDTH (IN)	3.75
OVERALL WIDTH (MM)	95
METER TECHNOLOGY	椭圆齿轮, オーバルギア, Oval Gear, Engranaje oval, 오발 기어
METERING GUN WEIGHT (LB)	5.3
METERING GUN WEIGHT (KG)	2.4
MINIMUM FLOW RATE (GPM)	0.25
MINIMUM FLOW RATE (L/MIN)	0.9
WETTED MATERIAL	Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS
WARRANTY	结构组件 5 年,电子设备 3 年,磨损部件 1 年, 5 年間の構造部品、3 年間の電子機器、1 年間の消耗部品, 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts, 5 años de componentes estructurales, 3 años de componentes electrónicos, 1 año de piezas de desgaste, 구조 부품에는 5년, 전자 장치에는 3년, 마모 부품에는 1년
UNIT OF MEASURE	Quart, Pint, Gallon, Liter
TRIGGER PROTECTION TYPE	Guard
TRIGGER LOCK	Locking
RECOMMENDED ENVIRONMENT	Indoor
OUTLET THREAD TYPE	Straight Thread O-Ring Boss
NOZZLE TYPE	Oil Automatic Quick-Close
MINIMUM OPERATING TEMPERATURE (°F)	4
MINIMUM OPERATING TEMPERATURE (°C)	-16
TYPE	Electronic Metered Dispense Valve
VALVE TYPE	Metered
MAXIMUM WORKING PRESSURE (MPA)	10.3
PRODUCT TYPE	Meter
MODEL	SDP8

Specifications

Extension Type Flexible

GPM 8

Inlet Size 1/2 in.
