Forward F12N303 : 12,000 LB Symmetric 2-Post Lift - 143 in. Height

Name: Forward F12N303 : 12,000 LB Symmetric 2-Post Lift - 143 in. Height
Brand: Forward Lift
SKU: F12N303
Price: 10994 USD
Availability: InStock

Forward Lift

$10,994.00

Write a Review

SKU:: F12N303
Shipping:: Free Shipping
Capacity:: 12000
Design:: Two-Post
Configuration:: Symmetric
Overall Height:: 143''
Overall Width:: 140''
Inside Columns:: 115''
Colors:: Red
Colors:: Blue
Country of Origin:: Asia

Current Stock:

Quantity:

Adding to cart… category.add_cart_announcement

Product Description

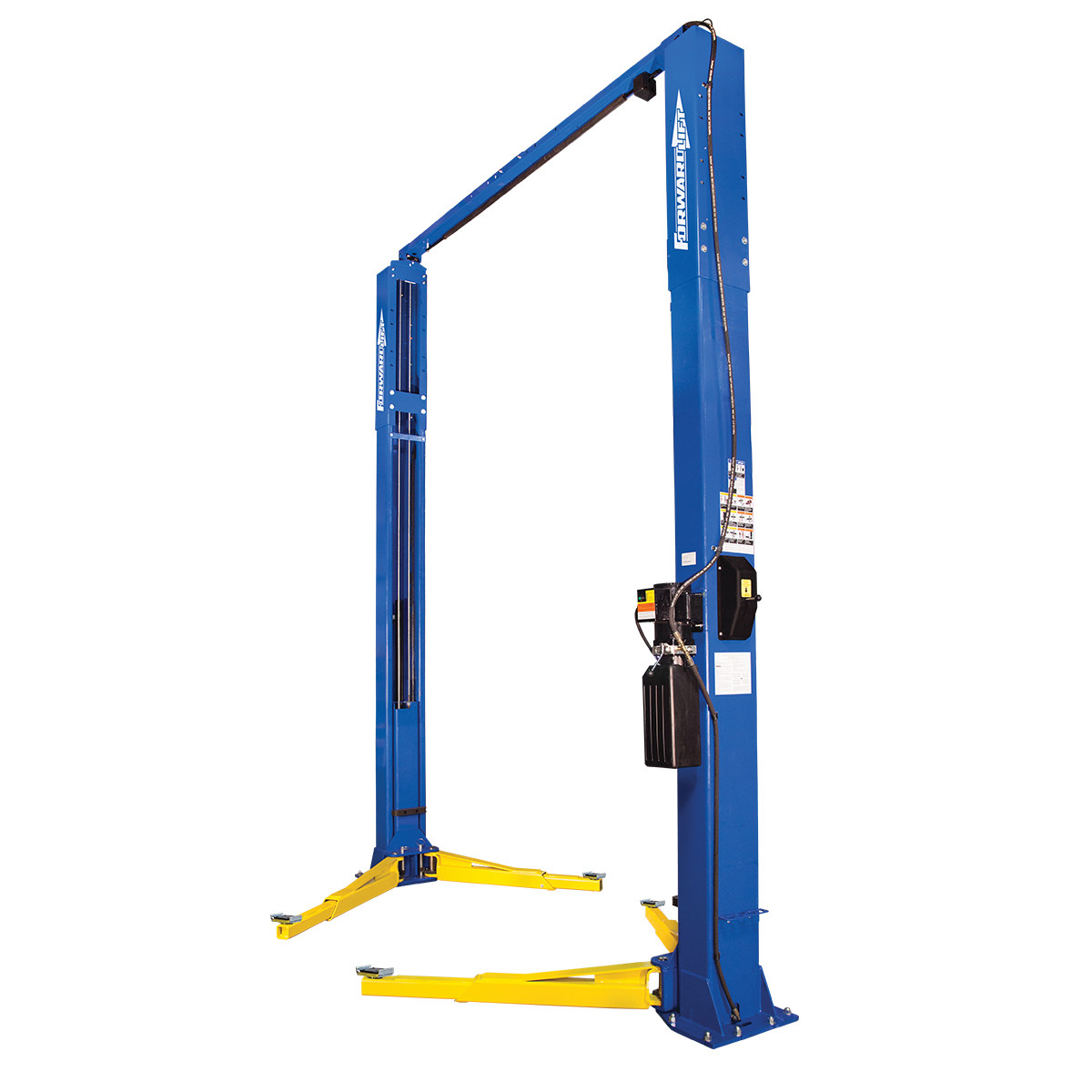

Forward's F12 two-post lift is gold certified with a 12,000 pound capacity for raising most passenger cars, trucks, and vans. With two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize down-time. Cylinders are located in each column concealed within the carriage itself. Durable powder coat finish provides exceptional protection from the wears a shop will see over the years. Forward's spring operated arm restraints are just one feature that keep these heavy duty lift arms constantly performing at their peak performance.

Features:

143" Overall Height
Hydraulic cylinders in each column
Full Stroke
Cylinder rod concealed inside carriage
72-1/2" Rise | 77-1/2" Rise (With 5" adapter extensions)
2 Stage Arm Design
Overhead cable equalization
Single Point lock release
Large rubber-padded swivel adapter with extra height extensions (3.5" and 5") are standard
Spring operated arm restraints, disengage at floor level
2-stage front and rear arms
Durable powder coat finish

Specifications
Specifications

Specifications

Specifications	F12
Capacity	12,000 lbs.
Maximum Rise	77-1/2â?³ With 5â?³ adapter extension
Adjustable Overall Height Options	I12N300 13â?? 10â?³ Standard I12N301 14â?? 10â?? Max. Height I12N302 12â?? 10â?? I12N303 11â?? 11â??
Overall Width	11â?? 8â?³ or optional 12â?? 2â?³
Drive Through Clearance	102-3/4â?³ or optional 108-3/4â?³
Overhead Switch Height Options	I12N300 160 1/8â?³ Standard I12N301 172 1/8â?³ Extended I12N302 148 1/8â?³ I12N303 137 1/8â?³
Front Arm Reach (Min./Max.)	27 3/4â?? / 59â??
Rear Arm Reach (Min./Max.)	27 3/4â?? / 59â??
Min./Max. Adapter Height	4-3/4â?³ w/ no adapter extension 9-3/4â?³ w/ 5â?³ adapter extension
Width Inside Columns	114 7/8â?? Standard 120 7/8â?³ Optional
Voltage/Amps	208-230v, 17 amps
Motor/Phase**	2HP / 1 PH
Ceiling Height Required	168â?³ (4267mm)
Specifications subject to change without notice or liability. *Lifts available in blue (BL) and red (RD)

Specifications

Capacity 12000

Design Two-Post

Configuration Symmetric

Overall Height 143''

Overall Width 140''

Inside Columns 115''

Colors Red

Colors Blue

Country of Origin Asia
