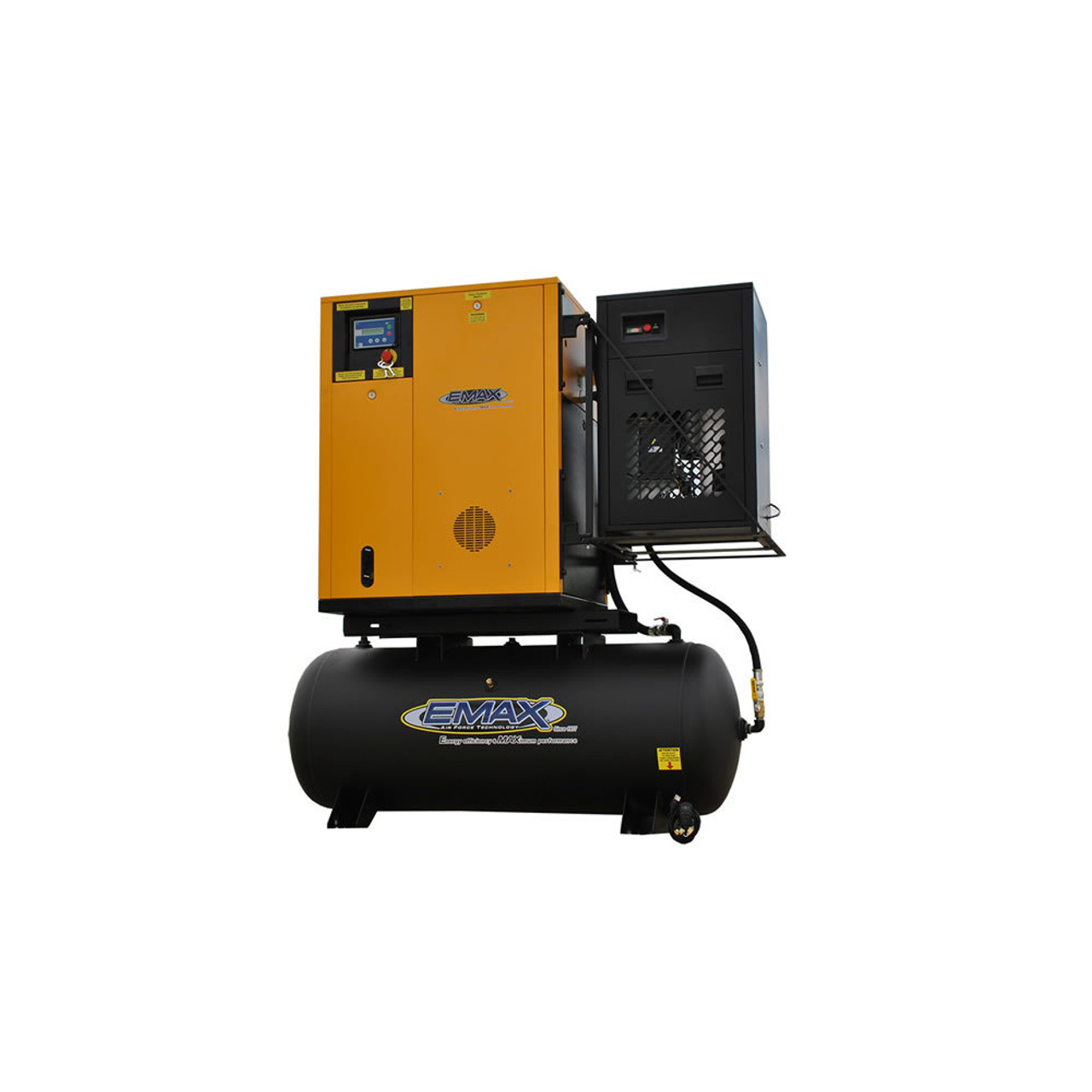

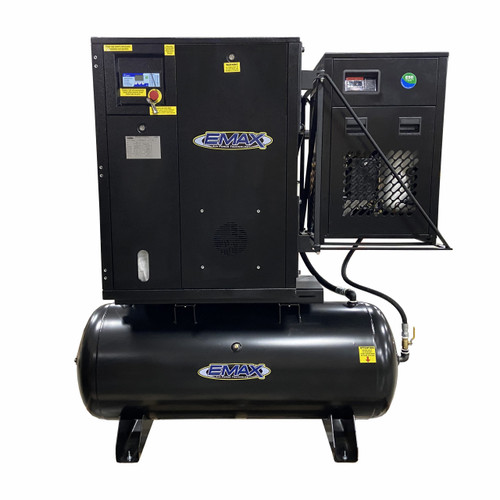

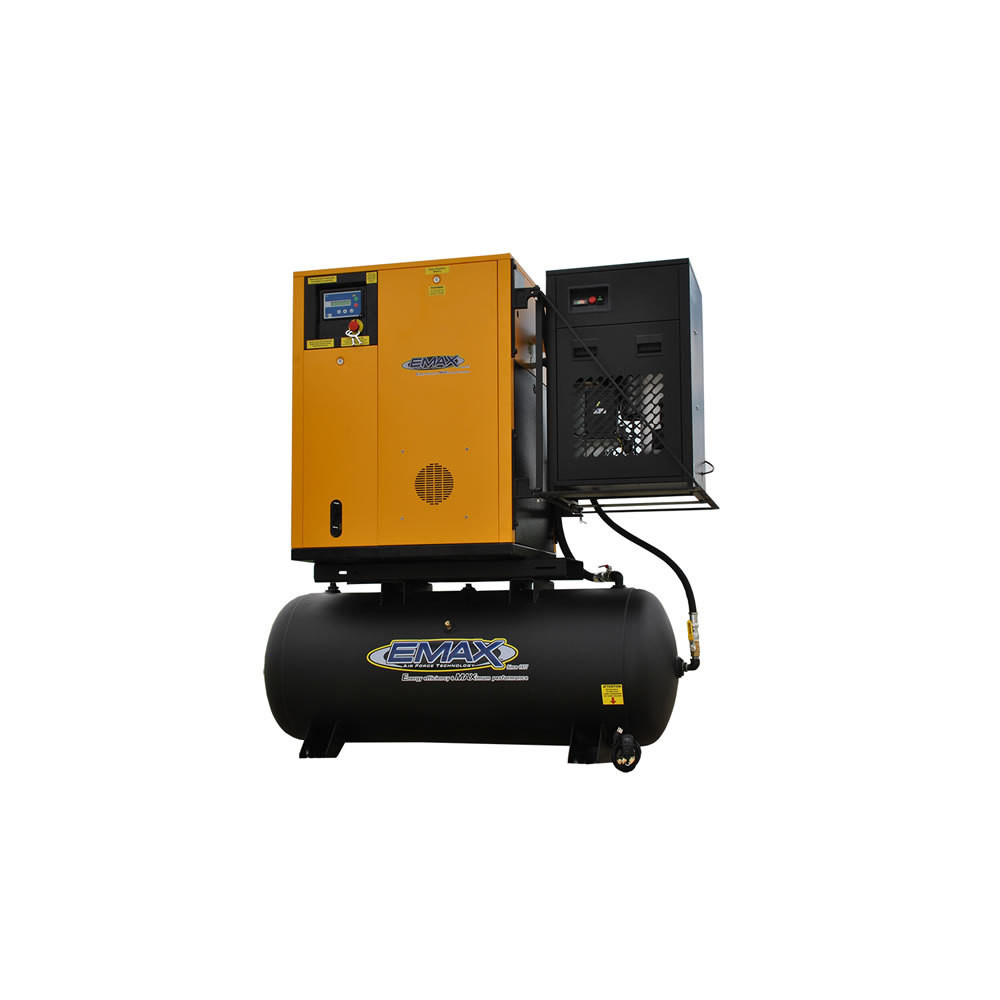

EMAX ERVK070001 : 7.5 HP 24 CFM 1P Rotary 120 Gal. Horizontal Tank w/ Dryer

Name: EMAX ERVK070001 : 7.5 HP 24 CFM 1P Rotary 120 Gal. Horizontal Tank w/ Dryer
Brand: Emax
SKU: ERVK070001
Price: 11899 USD
Availability: InStock

Emax

$11,899.00

Write a Review

SKU:: ERVK070001
Shipping:: Free Shipping
Voltage:: 208V
Voltage:: 230V
HP:: 7.5 HP
CFM:: 21-30
Tank Size:: 120 Gal
Tank Orientation:: Horizontal
Phase:: 1 Phase
Speed:: Variable
Mount Type:: Tank Mount

Product Description

All Emax Air Rotary Screw air compressors are equipped with these state of the art screw airend compressors manufactured in Germany and Finland. These airends have precision-aligned back-to-back tapped roller bearings with close tolerances guarantee long life cycles and outstanding reliability. Each air end is tested to meet consistent high-quality standards.

Premium Industrial Motors

We use only premium industrial name brand motors to run our compressors. Emax uses only low 1750 RPM motors. We have chosen motors that come with the best certificates and quality assurances, so we know that you are getting the best as well! We use High Efficiency motors constructed with superior materials, higher service factors, longer bearing lives, lower waste- heat output and less vibration. We also pass the motor warranty on to you for a full 5 year on single phase and a full 10 year on 3 phase!!

Receiving Tank

These units comes mounted on a 120 gallon Horizontal painted receiving tank equipped with auto drain, hydraulic hoses and fittings.

These tanks are made in the USA and have ring based design to prevent cracking, Standard NPT ports, ASME, NBBI, & CRN approvals, they are rated up to 450 degrees F, and they are coated with anti-corrosive/ rust prevention blended steel to increase the tanks life.

Patented Swingarm Feature:

This feature makes for easy maintenance on your rotary screw. You simply take out the pin and swing your dryer to the side, having easy access to the door panel on your rotary screw. This feature also makes your entire system compact and takes up less floor space. This system is everything you need to run clean air in your shop!

Programmable Logic Controller

These rotary’s are controlled by a user friendly Logika PLC (Programmable Logic Controller). This controller makes this unit bullet proof. These controllers have may many features that are extremely user friendly and easy to use. Here are some of its key features.

variable speed ready to Control the speed of the motor
Adjust Pressure – to what pressure range you need. This can be set by the customer, this unit has a shutdown in case the unit goes over pressure. the unit has a maximum pressure setting – the computer will sense that it is going over pressure and will shut down.
Low Oil Shutdown – if the controller senses that the unit is going into high temperature it will shut it down. It will also shut down if the compressor runs low on oil.
Reverse Fault – the controller will control when the unit is wired up if it is running backwards, it will sense a reverse rotation fault and shut the unit down
High Voltage Fault – if the voltage is 15% over the power supply voltage rated on the Emax compressor data plate, the unit will shut down. Also if the voltage is 15% under it will shut is down as well.
Over AMP Shut down – if the motor is pulling to many amps it will shut down. You can check the amp draw of the electric motor as it is running and also on the exhaust fan motor
Clock and Date – Built in Clock and Date to help keep track of preventative maintenance services.
Light – Has a built in light for dark locations.
Parameters- has a maintenance parameter system to create and maintain the parameter and control information.
Hour meter – Built in hour meter to keep track of the running hour on the machine.
Fault History -The PLC stores history if the unit shuts down, information on why it shut down is stored
Maintenance Service – Keeps track of when to change the air filter, oil filter and the coalescing filter along with the unit needs greased. When they need changed the PLC will sound an alarm. After changing you simply reset that filter back to zero and start the maintenance tracker again.
Air Differential Control- with differential control you have a wide range of pressure settings. You can take the kick-in pressure all the way down to 100 PSI and all the way up to 145 PSI. You can adjust this range anywhere in between. You can also set the high end down to a lower pressure where ever the customer unit pressure is desired. The Polar Compressor is factory set at 120 kick in and 145 kick out. The lower the pressure the higher CFM and the more hours you will get on your screw compressor, so keep the pressure as low as possible.
Built in Timer -will sense when the unit is not being used for a period of 20 minutes under no load, this will shut down the machine automatically so it will restart as air pressure goes down to the kick- in set point.
On- line demand – this setting is made for high volume and will bypass the automatic kick-off mode. It allows the unit to keep running on continuous run mode for high air demand.
Warranty – These PLC’s carry a 5 year warranty
Daily / weekly Schedule – This unit can be programmed to start in the morning, can shuts its self at lunch if needed and can turn itself in the even as well, or when ever needed.
Self-Start – if the power is lost this unit will automatically restart itself, this eliminates a maintenance crew to have to restart after the shutdown.
Master Slave – this controller can switch from one unit to the other and maintain the same use of hours, it can adjust the pressure to be the lead or the lag unit.

Specifications
Specifications

Specifications

CFM @ 100 PSI	24
Max PSI	145
Variable Speed Drive	Altivar 71
Pump Model	Rotocomp -EVO02
Dimensions LxWxH	71 x 27 x 70
Motor RPM	1750
Motor Phase	Single
Voltage available	208/230
Tank Size	120 Gallon
Tank orientation	Horizontal
Tank Outlet Size	3/4"
Tank Drain	Timed Automatic
Certifications	UL,CSA, ASME
Warranty	10 Year Airend, 5 Year Motor, 5 Year Parts
Running AMP	32
Recommended Breaker	50 AMP
Product Source	America, Germany, Italy - NO China!
Drive Type	Belt Driven
Dryer CFM	30 CFM
Dryer Drain	Built in timed automatic
Dryer Filtration	Built in coalescing

Specifications

Voltage 208V

Voltage 230V

HP 7.5 HP

CFM 21-30

Tank Size 120 Gal

Tank Orientation Horizontal

Phase 1 Phase

Speed Variable

Mount Type Tank Mount
