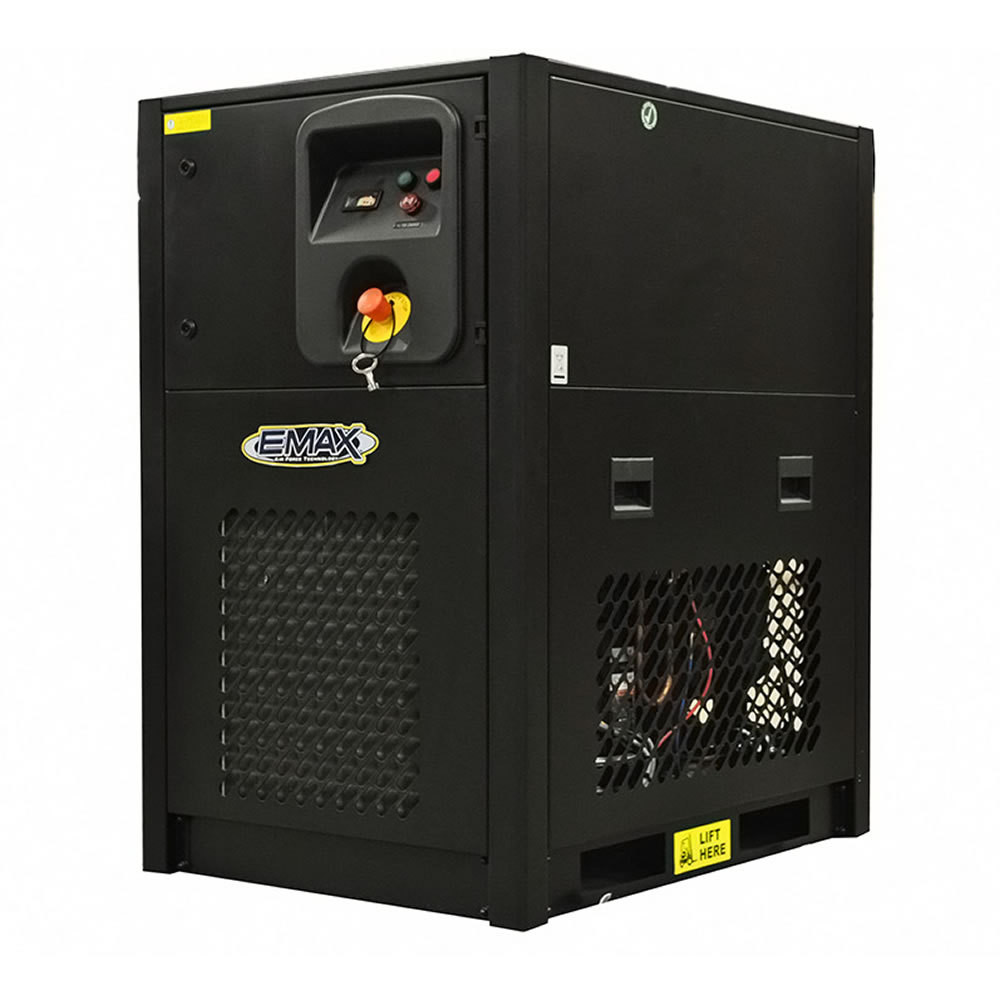

Our EMAX air dryer is the only energy efficient dryer systems with aluminum refrigerated air inner cooler. The air is filtered of all solid particles 0.01 micron and larger. Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. We designed them with Non-corrosive inner and after cooler. Our dryers feature stainless steel heat exchanger for maximum dryer life and less maintenance. Emax Air dryers are UL-CSA approved scroll compressor & electric system for high efficiency and durability. They feature adjustable hot bypass for complete dryer function in low and high CFM flow preventing dryer freeze up.
Keep Water, Oil, And Dirt Out of Your Compressed Air
Energy Efficient Aluminum Refrigerated Air Cooling System
Rust Free, Stainless Steel Heat Exchanger
Refrigerated Air Inlet Inner Cooler
Environmentally Safe
Compact And Efficient
Easy To Install
Added Features
| CFM | 58 |
| Dimensions LxWxH | 16" x 18" x 24" |
| Product Weight | 90 |
| Voltage 60HZ | 115 |
| Amp Draw | 7.2 |
| Dew Point (degrees F) | 37-50 |
| Pipe Size:Inlet & Outlet (inch.) | 3/4" |
| Max Ambient Temp.(degrees F) | 122 |
| Refrigerant Type | R-134A |
| Max Rated Inlet Temp (degrees F) | 140 |
| Dryer Drain | Built in automatic |
| Dryer Filtration | Built in coalscing Filter |
