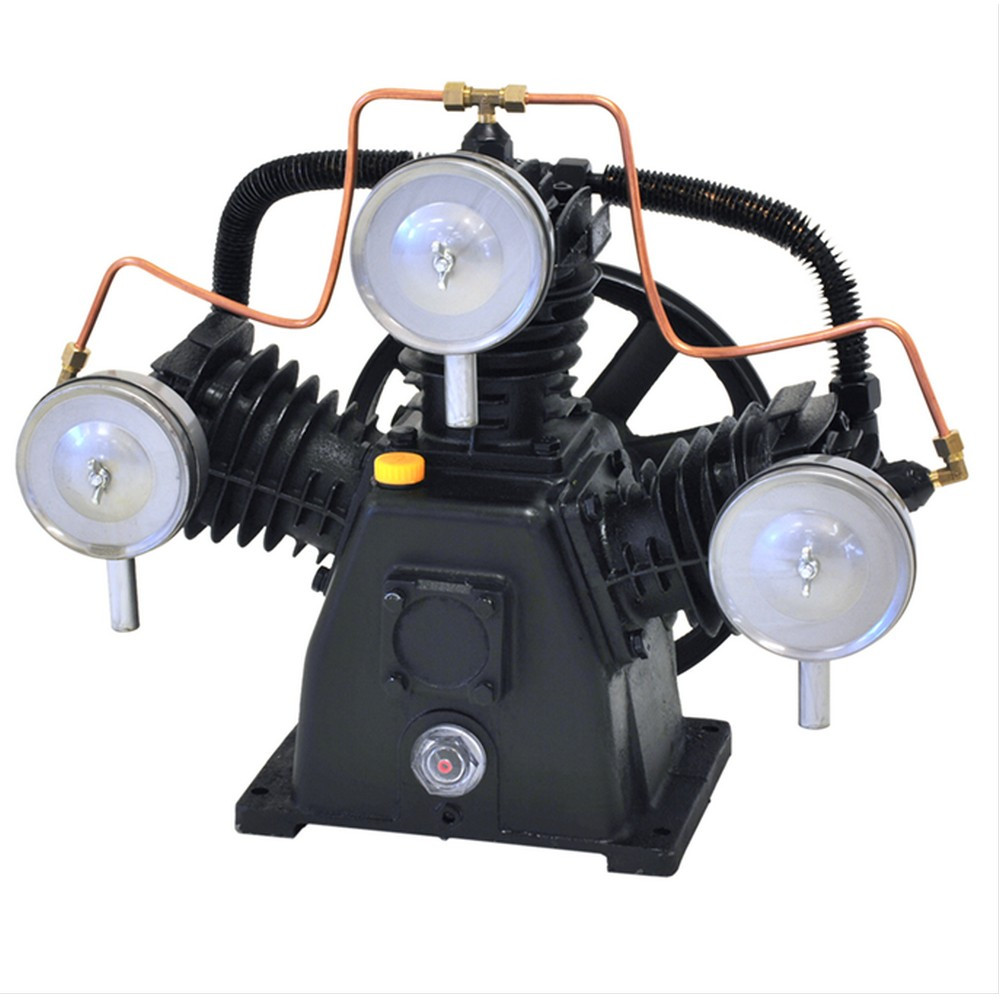

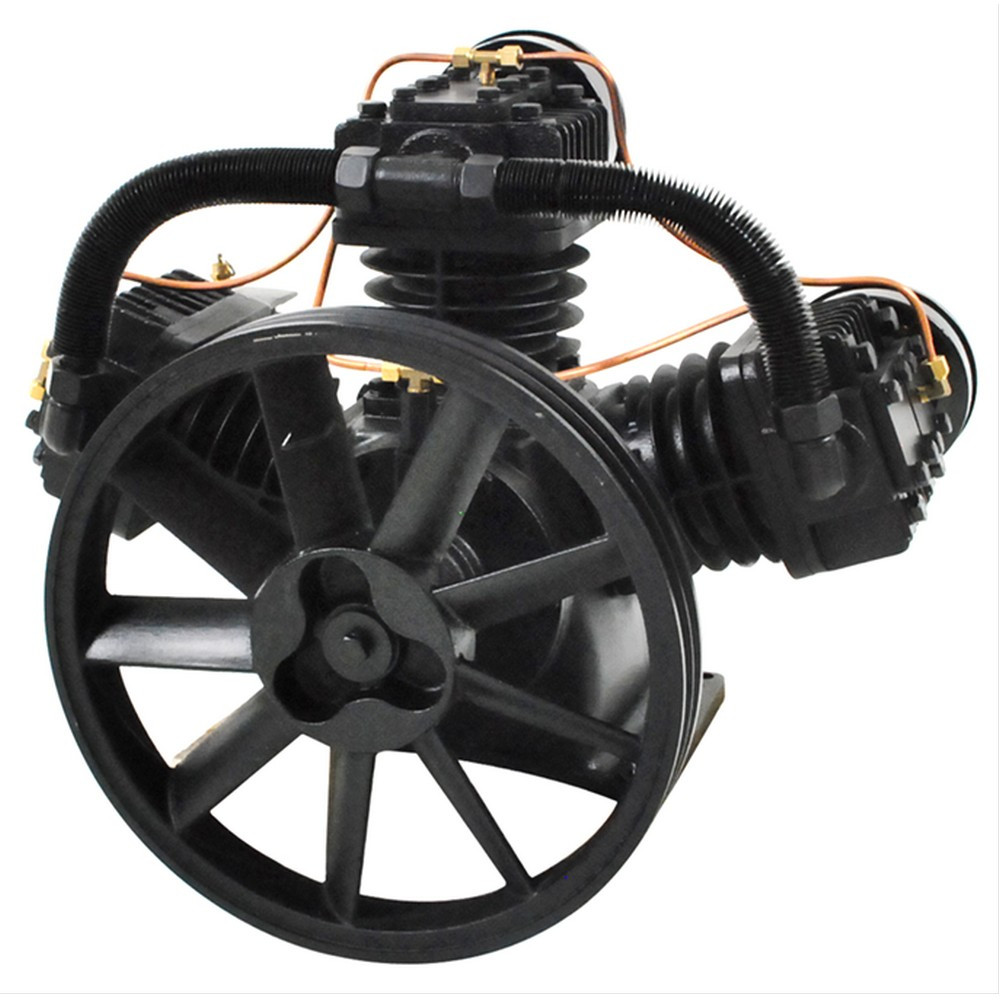

EMAX APP3Y0518S : 5 HP 18 CFM Single Stage Reciprocating Air Compressor

Name: EMAX APP3Y0518S : 5 HP 18 CFM Single Stage Reciprocating Air Compressor
Brand: Emax
SKU: APP3Y0518S
Price: 499 USD
Availability: InStock

Emax

$499.00

Write a Review

SKU:: APP3Y0518S
Shipping:: Free Shipping
Voltage:: 208V
Voltage:: 230V
CFM:: 11-20
HP:: 5 HP

Product Description

This Emax 3 Cylinder Heavy air compressor pump with 18 CFM Displacement and a Free Air (usable air) of 14 CFM @ 90 PSI can’t be beat. This pump has a maximum PSI of 135. It takes 19.5 amps (running amps) to pull this pump. This pump can be slowed down by putting a smaller pulley on your motor and it can be ran with a 3 HP motor pulling 15 amps on 220V (running amps). Minimum RPM is 600 and a maximum RPM of 1080.

Features:

Solid cast iron 3-cylinder piston series pump, oil lubricated design to extend pump life, (based on B-10 bearing life rating)
Cool-Tek – the coolest running compressors in the industry, air stream technology provides 35% lower operating temperature, reduces moisture build up and extends pump life
valves, deliver maximum air flow and reliability with low replacement costs, easily accessible design provides easy maintenance and durability
Industrial grade ball bearing for maximum performance and extended pump life
Built-in head unloaders designed for continuous run applications
Bolt pattern: 8-1/4 in. x 5-1/4 in.
Pump flywheel included on pump
Solid cast-iron cylinders, crankcase, flywheel, crankshaft, and valve plates
Steel Automotive-Type Filters – not plastic
Large site glass for viewing your oil level
dimensions of this pump are: 19” W x 15” D x 16” H and Flywheel is 10.5
weight: 80 lbs
includes oil -holds 1.5 quarts of oil

Specifications
Specifications

Specifications

CFM @ 90 PSI	14
Compressor Stage	Single
Horse Power	5
Pump Material	Solid Cast Iron
Pump Model	APP3Y0518S
Dimensions LxWxH	15" X 19" X 16"
Product Weight	80
Flywheel DIMS	10.5
Oil Capacity	1.25 Quarts

Specifications

Voltage 208V

Voltage 230V

CFM 11-20

HP 5 HP
