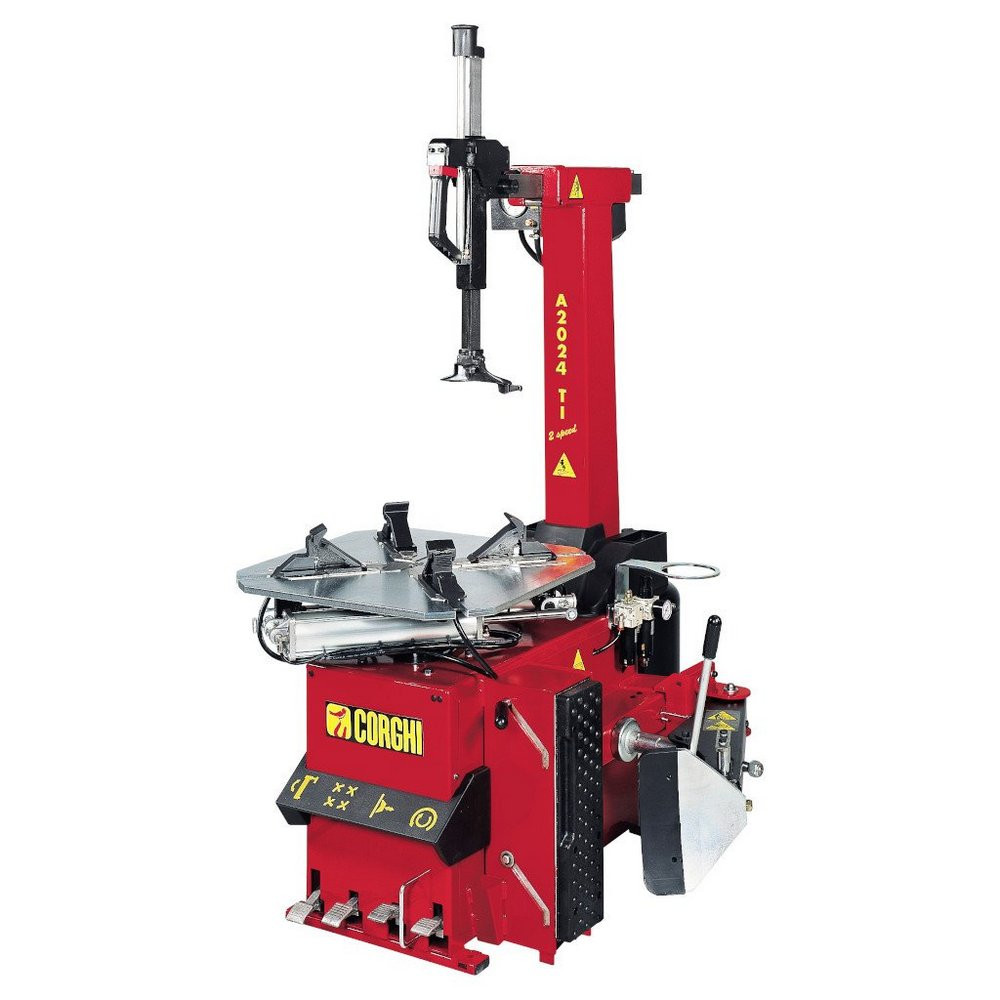

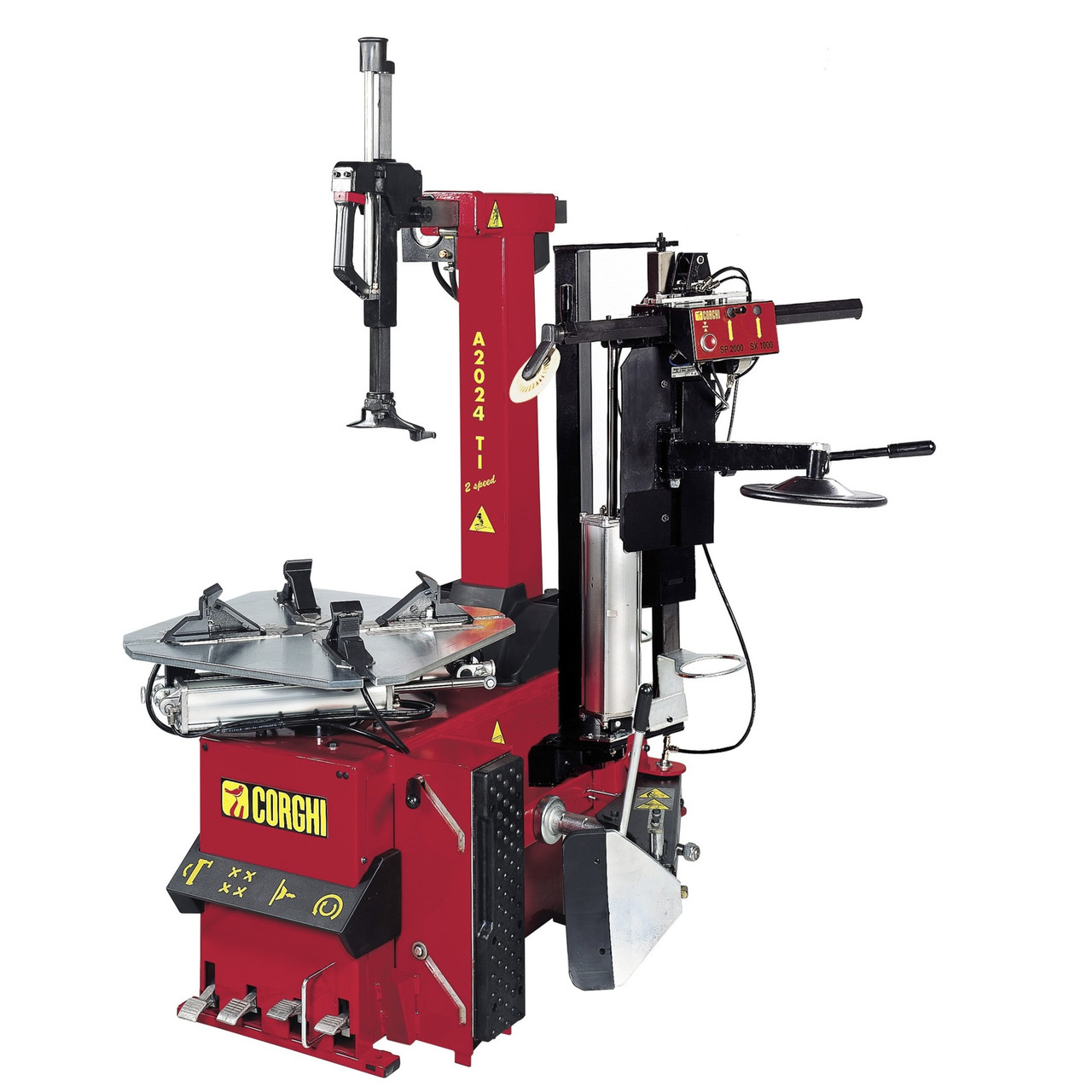

Corghi A2024Ti : Tilt-Back Performance Tire Changer (Air)

Product Description

The 2024 HP is the strongest built, largest capacity, tilt back rim clamp machine available. It handles wheels up to 26" (out of the box) and by adding a simple economical expansion kit, you can increase up to a 30" wheel.

This machine has also incorporated an ergonomic adjustable bead breaker shovel that allows you to adjust the shovel upward to be on the centerline of larger diameter wheels.
This machine can truly cover with ease the widest range and combination of wheels and tires of any machine on the market. Like all Corghi machines you get: Flexibility, Durability, Reliability at the most competitive price.

• Inside Clamping Capacity: 13"-26"
• Outside Clamping Capacity: 10"-24"
• Maximum Tire Diameter: 43” (1100 mm) (*)
• Maximum Tire Width:14” (360 mm)
• Head Clamping: Pneumatic
• Column: Pneumatic Tilting
• Drive System: Variable Air
• Rotation Torque: 958 ft/lb
• Rotation Speed: 6-15 rpm
• Maximum Bead Breaking Range: 18” (457 mm)
• Bead Breaking Force: 2756 lbs. (7600 N)
• Power Requirements: None
• Shipping Weight: 571 Lbs.
