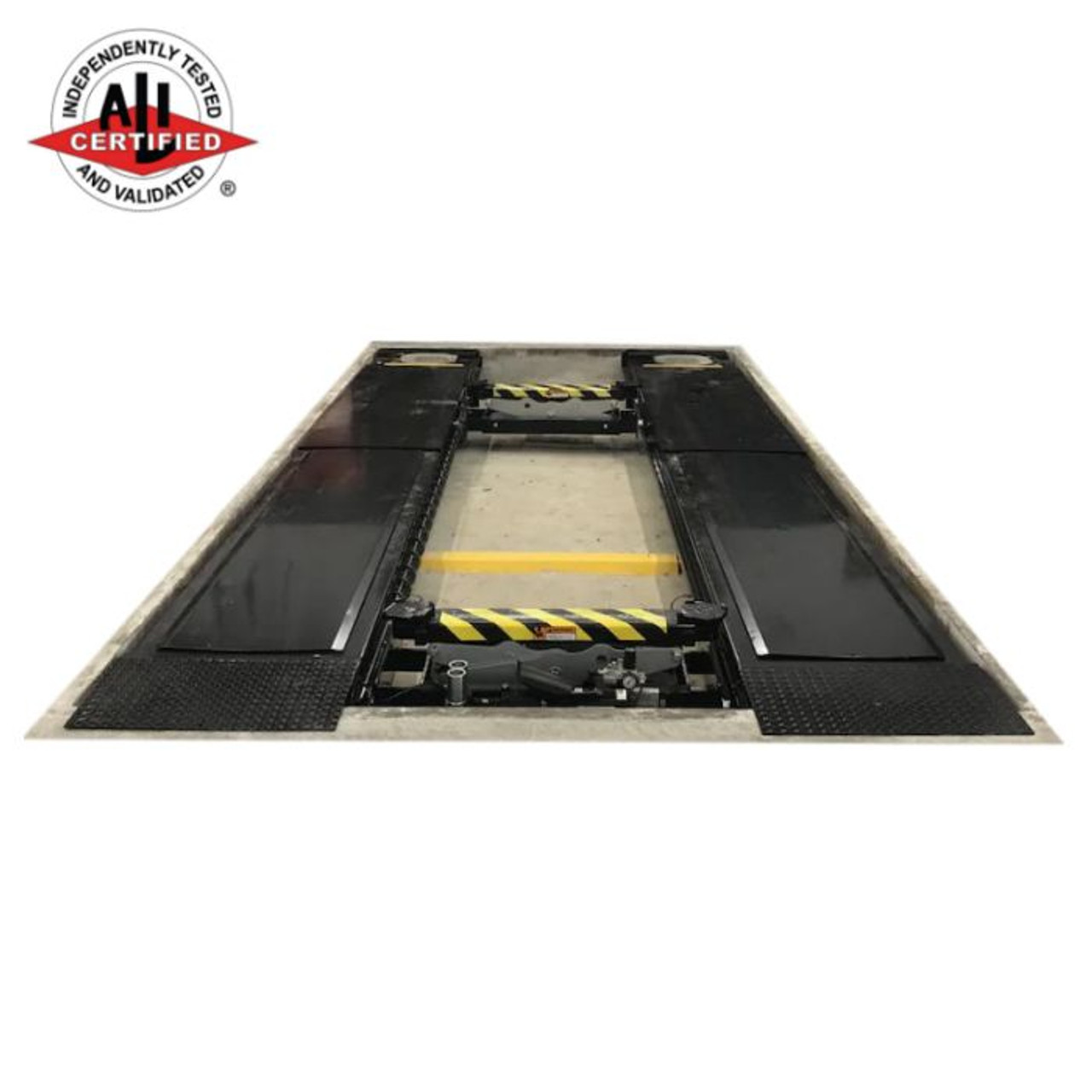

Challenger SX14-Flush : 14,000 LB Flush Mount Alignment Scissor Lift

Name: Challenger SX14-Flush : 14,000 LB Flush Mount Alignment Scissor Lift
Brand: Challenger Lifts
SKU: SX14-Flush
Price: 39905 USD
Availability: InStock

Challenger Lifts

$39,905.00

Write a Review

SKU:: SX14-Flush
Shipping:: Free Shipping
Capacity:: 14000
Design:: Scissor
Type:: Alignment
Application:: Alignment
Application:: Tires & Brakes
Height:: Full Rise

Product Description

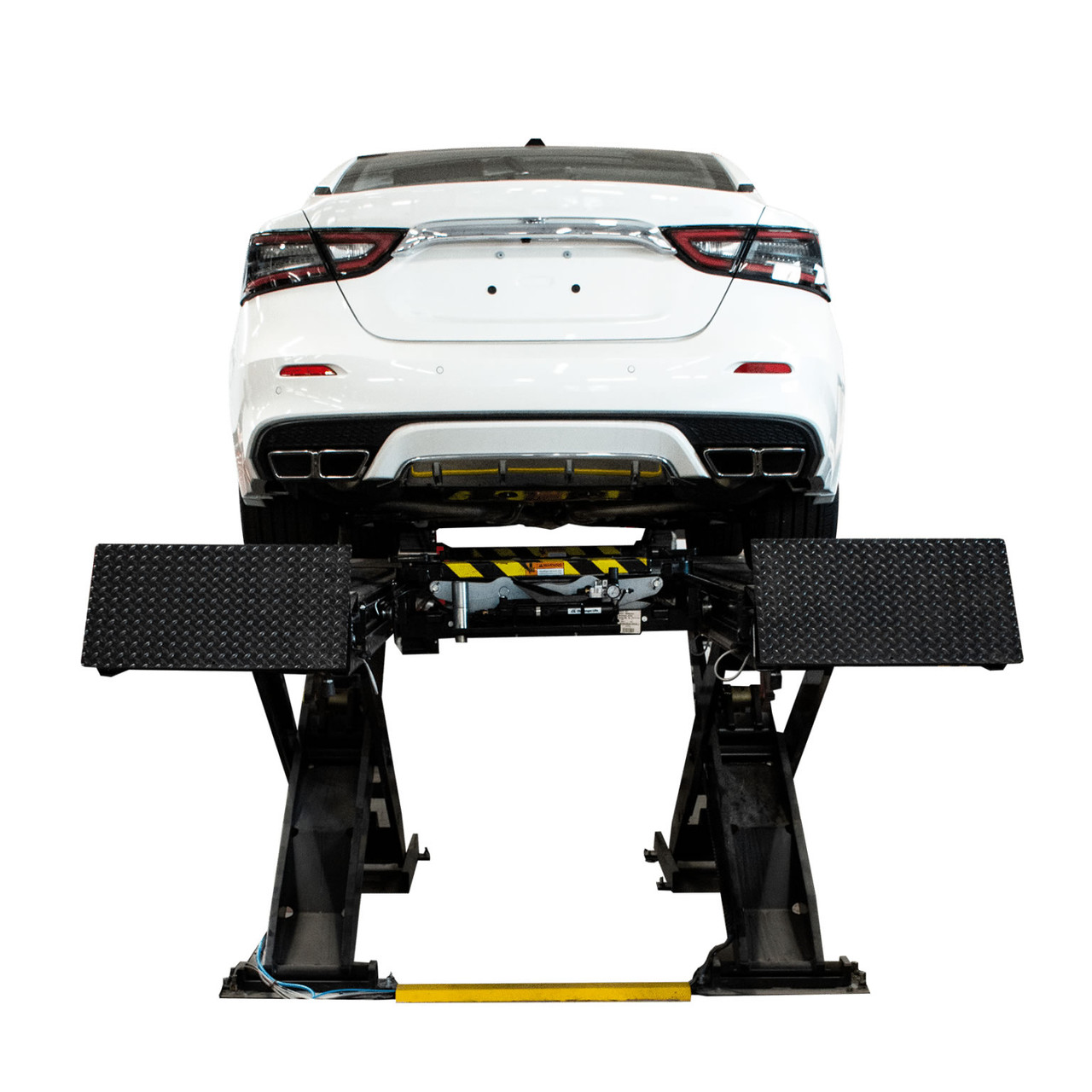

Challenger SX14 series scissor lifts are easy to operate and load. Adjustable turn plates allow for a wider range of wheelbase alignments. The SX14 features LED lighting, single locking point rear slip plates, photo cell to ensure runway synchronization and optional extended ramps that accommodate low-clearance vehicles. These alignment racks are available in flush or surface-mounted models. Kit includes the lift, two rolling jacks, adjustable turn plates, and an airline kit for dual jack operation.

Features:

Package includes two (2) rolling jacks, turn plates, and an airline kit for dual jack operation
Extra wide runway width accommodates single and dual rear wheel vehicles
Photo cell ensures runway synchronization
Automatic light feature illuminates the underside of the vehicle and turns off when lift is lowered below 18”
Maintenance-reduced rear slip plates use oversized, encapsulated bearings to protect against environment debris
Twin hydraulic cylinders provide smooth operation
Approach ramps are equipped with end rollers to minimize noise and reduce floor damage
Single point air actuated lock release allows ergonomic working height for technicians to increase productivity and minimize fatigue
Powder coat finish provides long-lasting durability
Can be mounted above ground or flush
ALI certified

Specifications
Specifications

Specifications

Model Number	SX14	SX14-ER	SX14-FM
Description	Standard	Extended Ramps	Flush Mount
Lifting Capacity*	14,000 lbs.	14,000 lbs.	14,000 lbs.
Rise Height	77”	77"	66.5"
Overall Length	265”	283"	265"
Overall Width	91.25”	91.25”	91.25”
Width of Runways	25.5”	25.5”	25.5”
Between Runways	40”	40”	40”
Lowered Height	10.5”	10.5”	-
Maximum Wheelbase	183”	183”	183”
Wheel Alignment (Max.)	176"	176"	176"
Wheel Alignment (Min.)	70.75"	70.75"	70.75"
Motor	3 HP	3 HP	3 HP
Voltage (Single Phase Std.)	208-240v (23 FLA)	208-240v (23 FLA)	208-240v (23 FLA)
Speed of rise	75 s	75 s	75 s
Air Required (filtered/lubricated)	90 - 120 psi (20CFM)	90 - 120 psi (20CFM)	90 - 120 psi (20CFM)
Min. Recommended Bay Size	14' x 28'	14' x 28'	14' x 28'
ALI/ETL Certified	Yes	Yes	Yes
Color Available	Black	Black	Black

Specifications

Capacity 14000

Design Scissor

Type Alignment

Application Alignment

Application Tires & Brakes

Height Full Rise
