Autel MSULTRA EV : Ultra Tablet w/ EV Diagnostics

Name: Autel MSULTRA EV : Ultra Tablet w/ EV Diagnostics
Brand: Autel
SKU: MSULTRAEV
Price: 6195 USD
Availability: InStock

Autel

$6,195.00

Write a Review

SKU:: MSULTRAEV
UPC:: 849438016234
Shipping:: Free Shipping
Type:: EV Diagnostics Tablet
Application:: Automotive
Category:: EV Diagnostics Tablets

Product Description

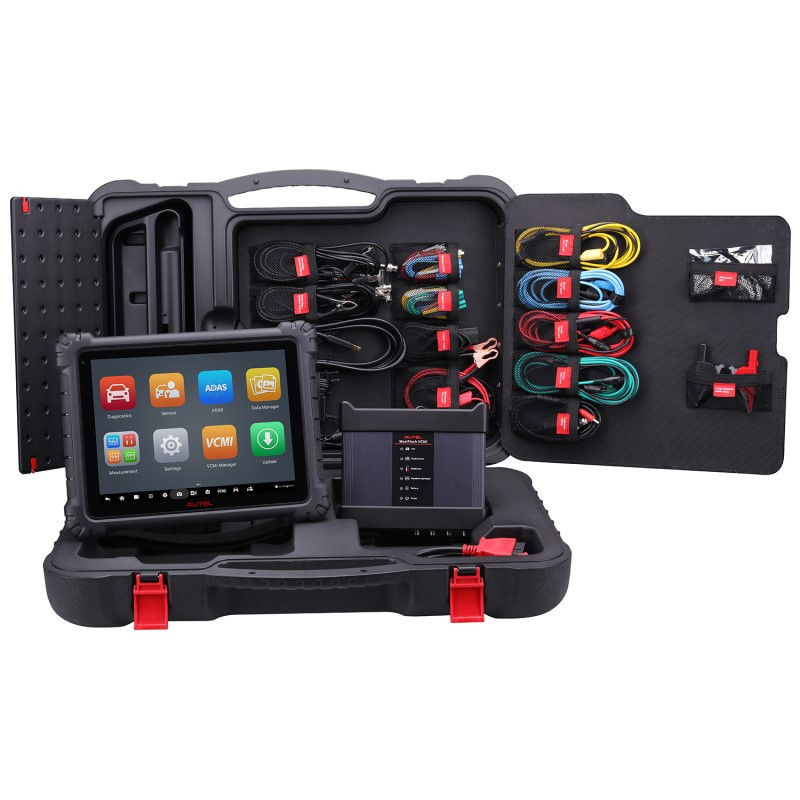

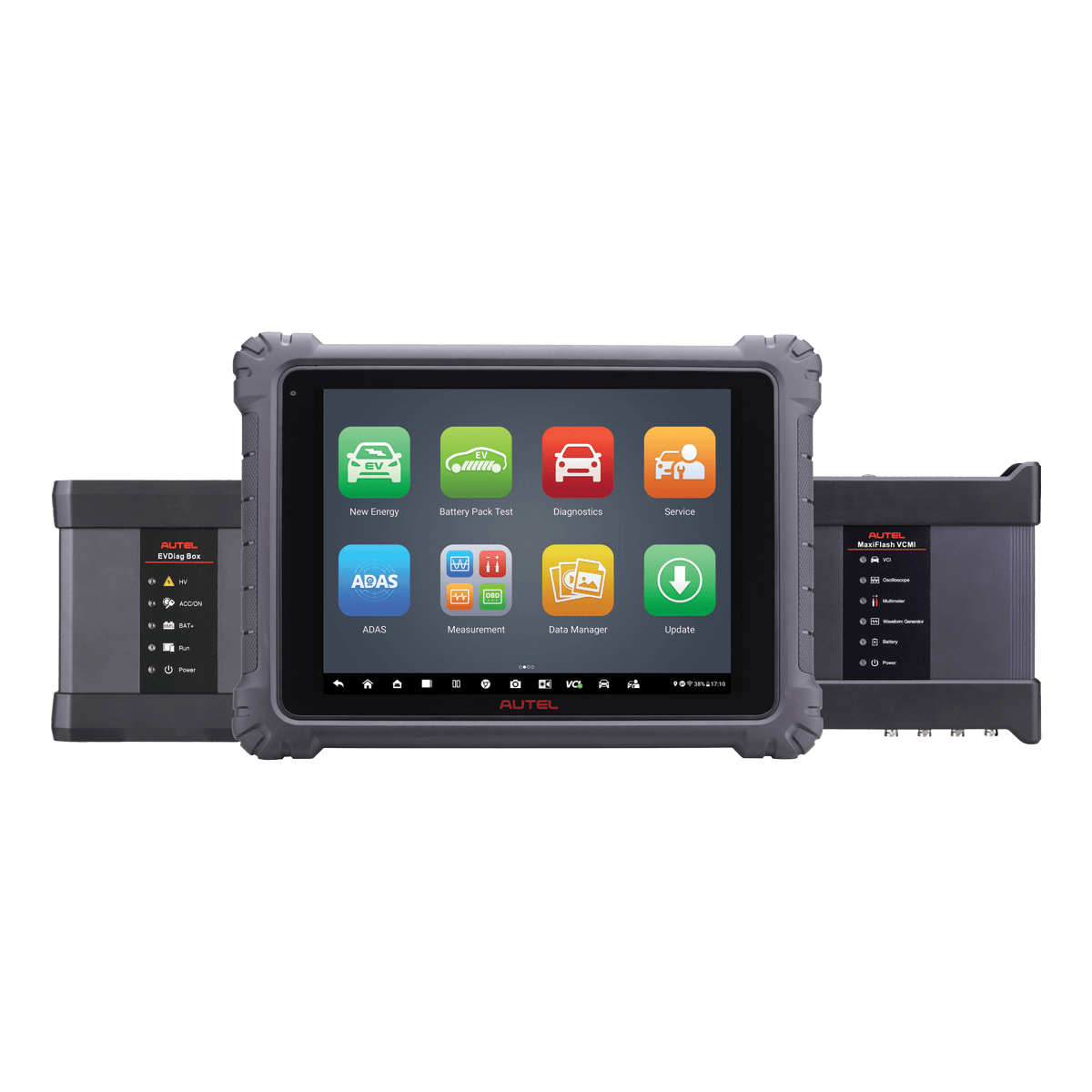

The MaxiSys Ultra EV is a new generation of intelligent diagnostics for electric, hybrid, gas, and diesel vehicles. The Ultra EV provides a comprehensive analysis of electric and hybrid vehicles with expanded topology mapping and battery pack analysis that can be performed via OBD or directly with included specialty cables and jumpers. The Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing. The 12.9-inch Ultra EV touchscreen tablet comes equipped with the MaxiFlash VCMI (5-in-1) measurement device, Bluetooth-enabled vehicle communication interface and J2534 pass-thru programming device, and a dedicated EVDiag box.

Features:

Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data
Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions
State of Charge and State of Health analysis for true battery condition
Battery pack analysis can be performed via OBD or analyze the pack directly with included specialty cables and jumpers; the Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing.
Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Specifications
Specifications

Specifications

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 256GB On-board Memory
Display	12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity	WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jac
Power and Battery	18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″)
Weight	2.18kg (4.81 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Specifications

Type EV Diagnostics Tablet

Application Automotive

Category EV Diagnostics Tablets
