Challenger VLE10 : 10,000 LB Versymmetric 2-Post Lift

Name: Challenger VLE10 : 10,000 LB Versymmetric 2-Post Lift
Brand: Challenger Lifts
SKU: VLE10
Price: 4964.48 USD
Availability: InStock

Challenger Lifts

$4,964.48

Write a Review

SKU:: VLE10
Shipping:: Free Shipping
Capacity:: 10000
Configuration:: Versymmetric
Country of Origin:: Asia
Design:: Two-Post
Overall Height:: 144''
Overall Width:: 132''
Inside Columns:: 110''
Colors:: Red
Colors:: Blue

Current Stock:

Quantity:

Adding to cart… category.add_cart_announcement

Product Description

Challenger adds the industry leading Versymmetric® Technology to the popular economy grade 10,000 lb 2-post lift, the LE10. Expand your service capabilities with the VLE10’s ability to lift a wide range of vehicles, including Forbes Top 20 Best-Selling Vehicles of 2020.

Features:

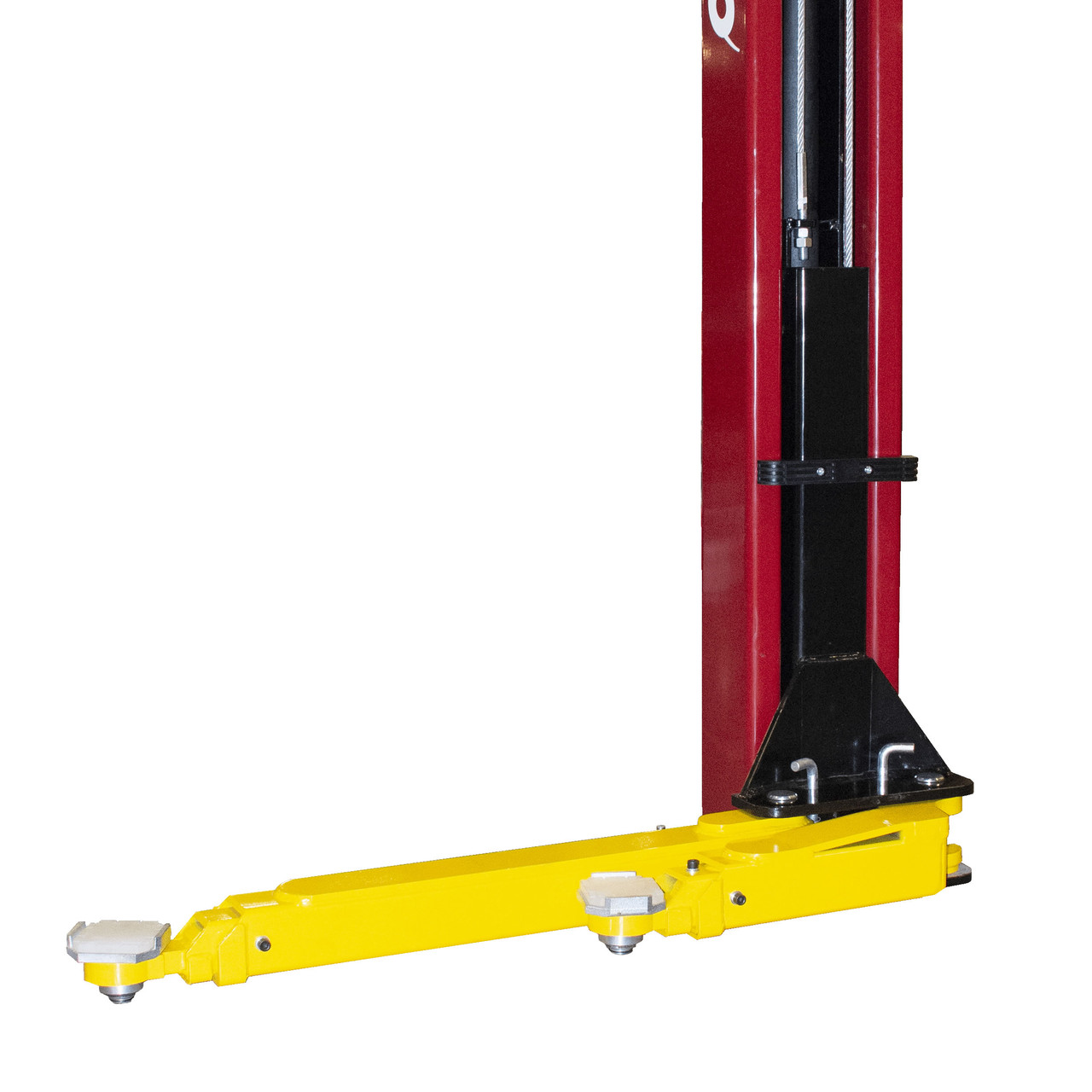

3-Stage Versymmetric front arms and 2-Stage rear arms provide a wide arm sweep for asymmetric and symmetric lifting in the same service bay.
11.875ft standard height fits in service bays with 12ft ceiling height.
Double telescoping screw pads with rubber foot pad.
Padded overhead shut-off system prevents vehicle damage.
Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL series lifts are now standard on the VLE10.
Rubber door guards protect vehicle from door damage.
Premium powder coat finish provides long-lasting durability.
Plated arm restraints and arm pins inhibit rust and provide long-lasting durability.

Specifications
Specifications

Specifications

Lifting Capacity	10,000 lbs
Lift Configuration	Symmetric and Asymmetric
Arm Configuration	3-Stage Versymmetric® Front/2-Stage Rear
Max Load Per Arm	2500 lbs
Rise Height (screw pads at highest position)	74.75"
Overall Height	Standard: 143.875" Extended Height: 167.875"
Overall Width	131.625"
Drive-Thru Clearance	98.375"
Floor to Overhead Switch	Standard: 137" Extended Height: 161"
Front Arm Reach	22.3125"-39.375"
Rear Arm Reach	38.375"-55.375"
Screw Pad Height	4.25"-6.75"
Between Columns	110.25"
Motor/Voltage	2HP, 208v-230v, 60Hz, 1Ph
Rise Time	44s
Ceiling Height Required	Standard: 12' Extended Height 14'

Specifications

Capacity 10000

Configuration Versymmetric

Country of Origin Asia

Design Two-Post

Overall Height 144''

Overall Width 132''

Inside Columns 110''

Colors Red

Colors Blue
