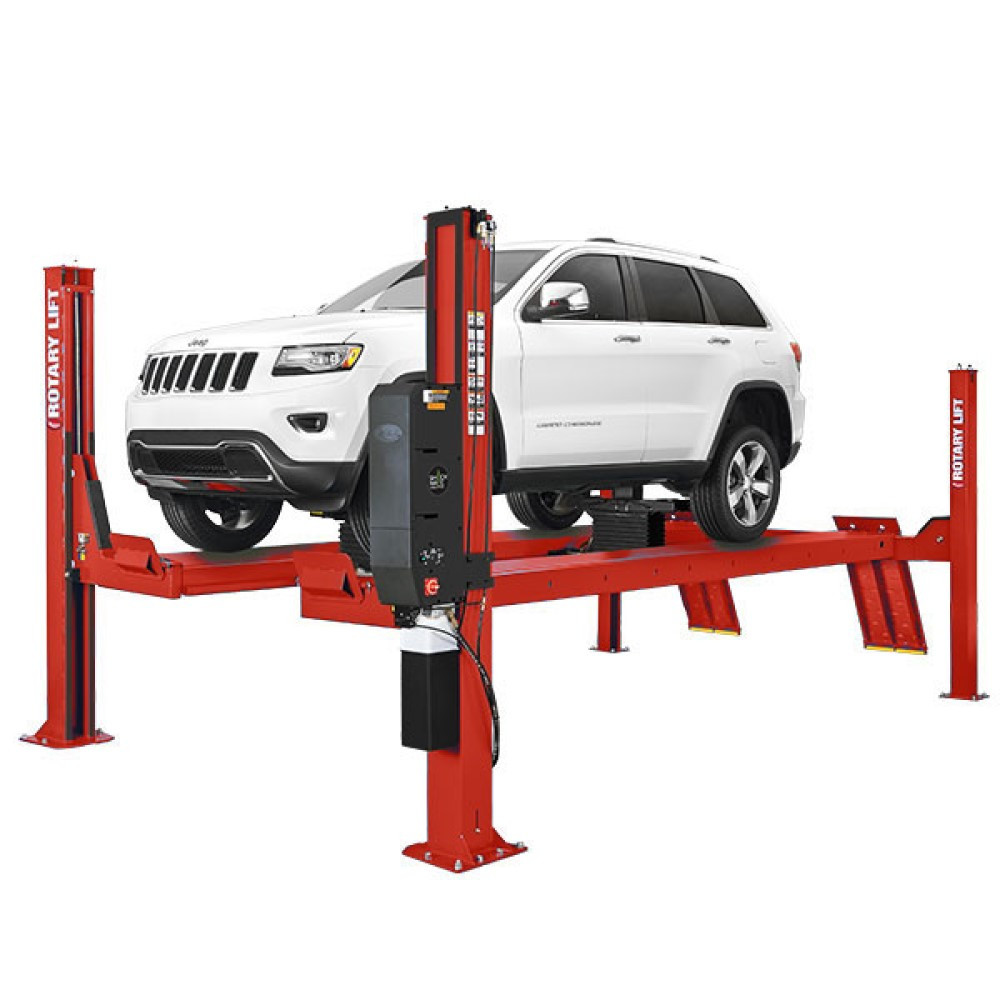

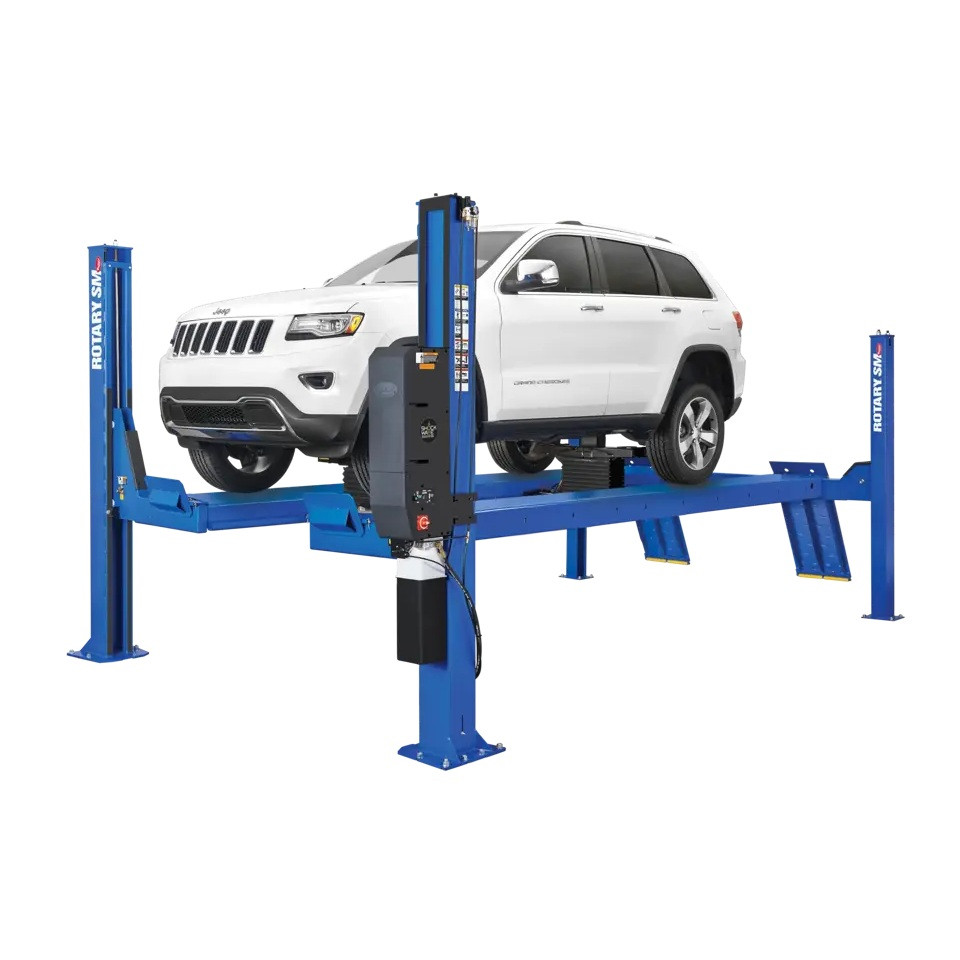

Specification | SMO14-EL |
Max Wheelbase | 215″ |
Rise | 78 3/4″ |
Length Overall | 23′ 10″ |
Width Overall | 11′ 8 1/2″ |
Inside of Columns | 116 1/4″ |
Between Columns | 227 3/4″ |
Height of Columns | 9′ 1 1/16″ |
Width of Runways | 20″ |
Height of Runways | 7″ |
Width Between Runways (min.) | 43″ |
Width Between Runways (max.) | 43″ |
Lifting Capacity | 14,000 lbs. |
Motor | 2 HP |
Voltage Single Phase | 208v-230v |
Time of Full Rise | 65 seconds |
Min. Bay Size | 15’x28′ |
Â
Specifications
Capacity 14000
Design Four-Post
Type Open-Front
Colors Red
Colors Blue
Colors Black
