Specifications
Specifications
Capacity 14000
Design Four-Post
Type Closed-Front

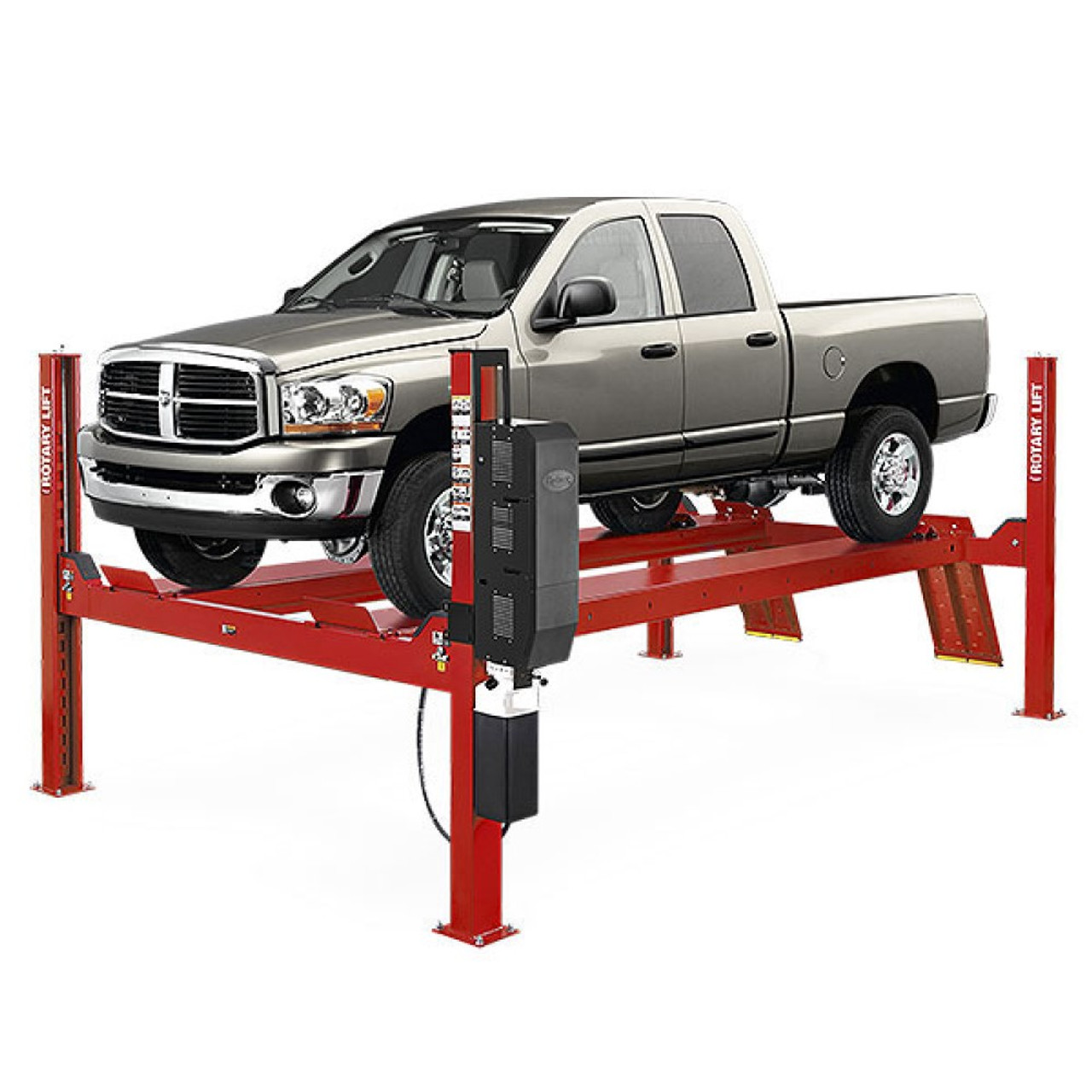

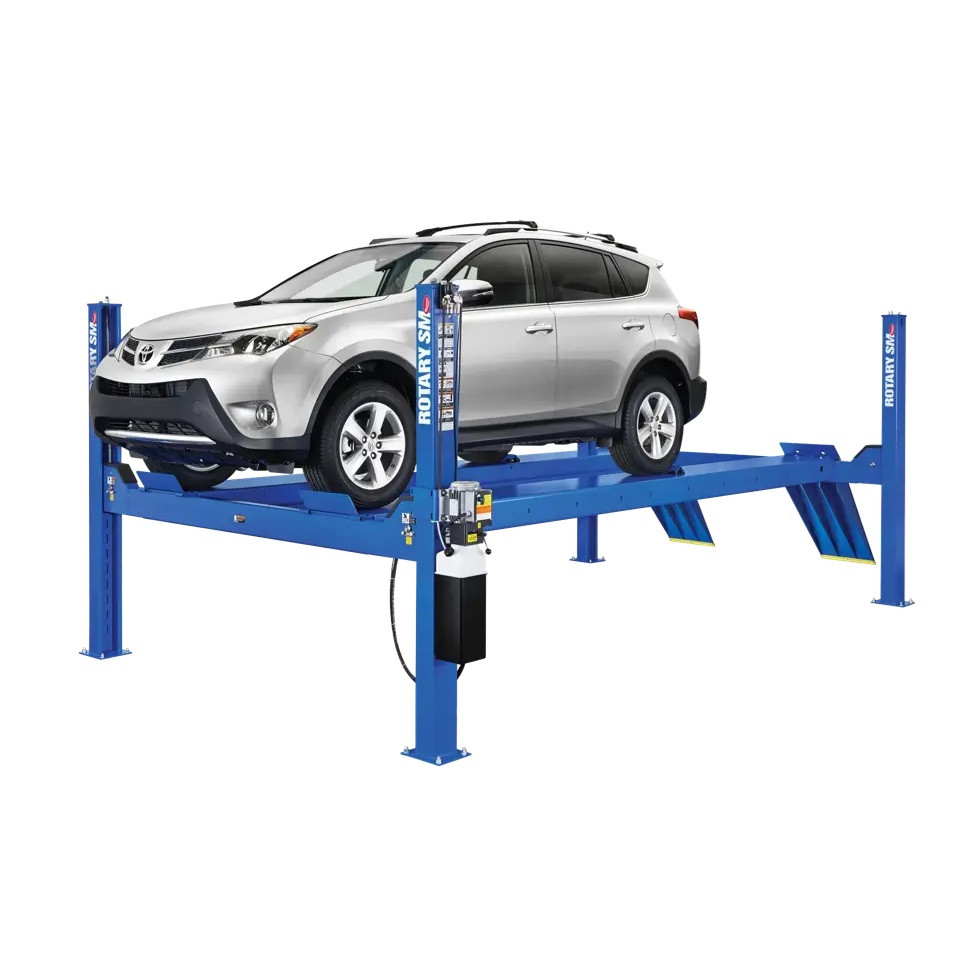

Cars. SUVs. Trucks. Vans. They can all drive right onto the SM14 and be in the air in no time. The gold standard of four post lifts, the SM14 is engineered with single-piece, non-welded runways to provide maximum long-lasting strength. Its louvered ramps provide improved traction and come with a powder-coated Hammer Tone paint finish for improved durability. And most importantly, the SM14’s adjustable latch bars ensure that the runways are level at any of the multiple locking positions.
Features:
Model | SM14-L | SM14-EL |
---|---|---|
Max Wheelbase | 182″ (4622mm) | 215″ (5461mm) |
Rise Height | 78 3/4″ (2000mm) | 78 3/4″ (2000mm) |
Length Overall | 20′ 10″ (6350mm) | 23′ 7″ (7188mm) |
Width Overall**† | 10′ 11 3/4″ (3346mm) | 10′ 11 3/4″ (3346mm) |
Inside of Columns** | 116 1/4″ (2953mm) | 116 1/4″ (2953mm) |
Between Front and Rear Columns | 195 1/4″ (4959mm) | 228 1/4″ (5798mm) |
Height of Columns | 7′ 6 1/2″ (2299mm) | 7′ 6 1/2″ (2299mm) |
Width of Runways | 20″ (508mm) | 20″ (508mm) |
Height of Runways | 7″ (178mm) | 7″ (178mm) |
Width Between Runways | 43″- 46″ (1092-1168mm) | 43″- 46″ (1092-1168mm) |
Lifting Capacity | 14,000 lbs. (6350kg) | 14,000 lbs. (6350kg) |
Motor | 2 HP | 2 HP |
Motor Shockwave | 5 HP | 5 HP |
Batteries Not Included | 2 Standard Group 24 | 2 Standard Group 24 |
Voltage Single Phase | 208v-230v | 208v-230v |
Voltage with Shockwave | 110V | 110V |
Time of Full Rise | 65 seconds | 65 seconds |
Full Rise/Decent Shockwave *** | 35 secs./18 secs. | 35 secs./18 secs. |
Min. Bay Size | 15’x26′ | 15’x28′ |
