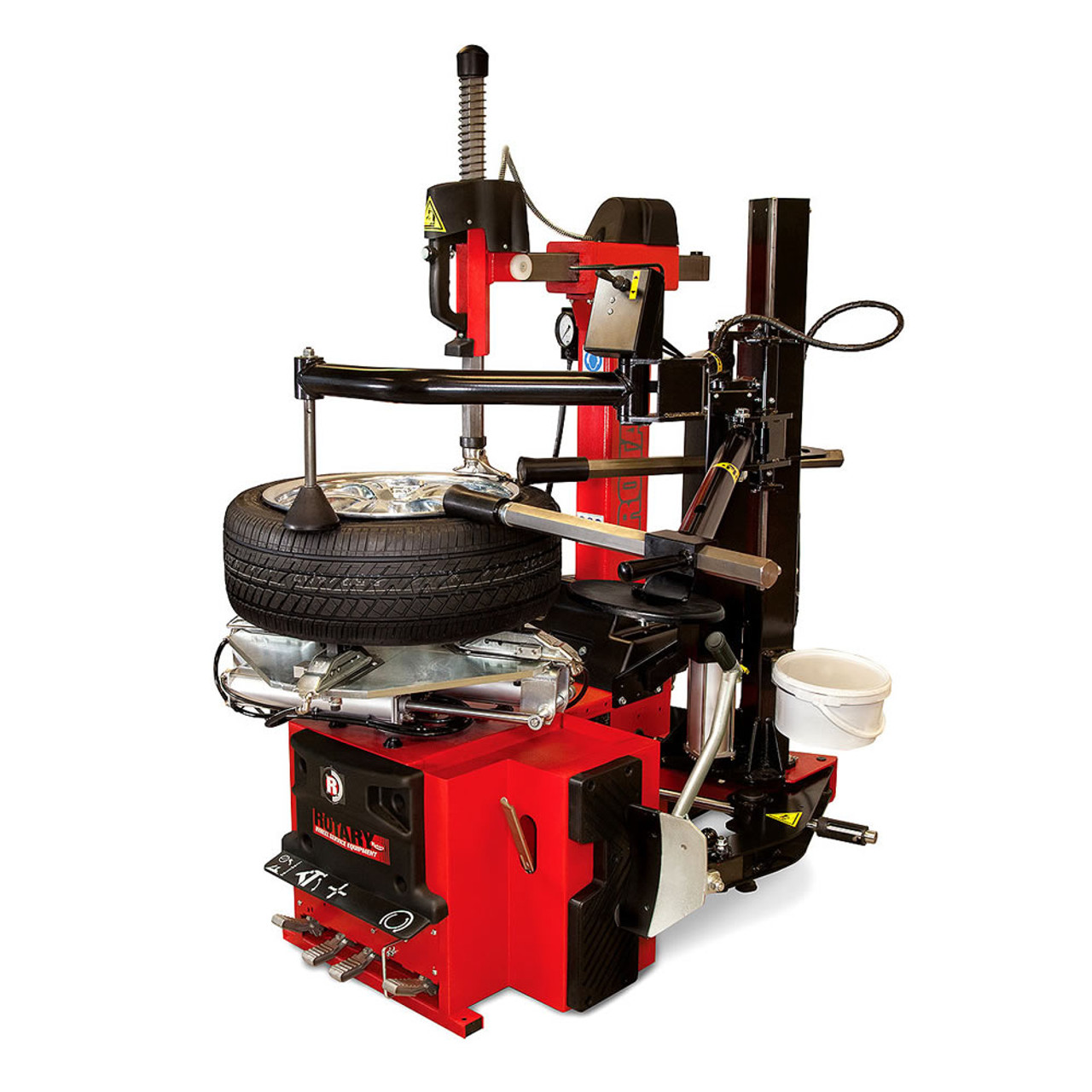

Rotary R145DR : Performance Tilt Back Tire Changer

Product Description

Rotary R145DR Tilt back VSC Tire Changer with Variable Speed 220Volt Motor and Robust Bead Press System

The R145DR is an automatic tire changer with an innovative electric motor inverter, which gives the ability to regulate the chucking table rotation speed to reduce the stress on the bead to avoid any damage to the tire. This tire machine is also equipped with the Fast Inflation (FI) configuration.

Features:

• TiltBack Column – Provides Less Flex than Swing Arm
• FI Configuration (quick inflation for tubeless tires)
• 220V power-driven motor
• Invemotor 0-16 Variable Speed Control
• Designed for Large and Wide Tires
• Shown with standard helper included
• Hand operated bead breaker handle

Specifications:
• Chuck rotation speed (rev/min) 0-16 rpm / 7,3
• Maximum torque to chuck 885 Ft/L bs (1200 Nm)
• Self-centring lock: external 10”- 26”
• Self-centring lock: internal 12”- 28,5”
• Tool working span 8”- 32”
• Maximum tire diameter 45” (1143mm)
• Maximum tire width 17” (431mm)
• Bead breaker cylinder power at 145 psi 6,745 Ft/L lbs (3060 kg)
• Power supply* (Model 145DR) Motor 220v / 1Ø / 60 Hz / 1 Hp
