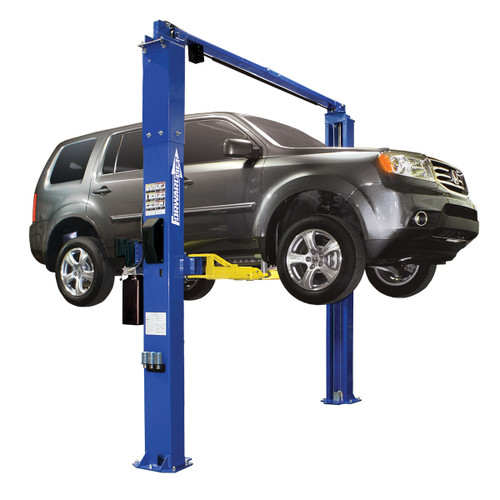

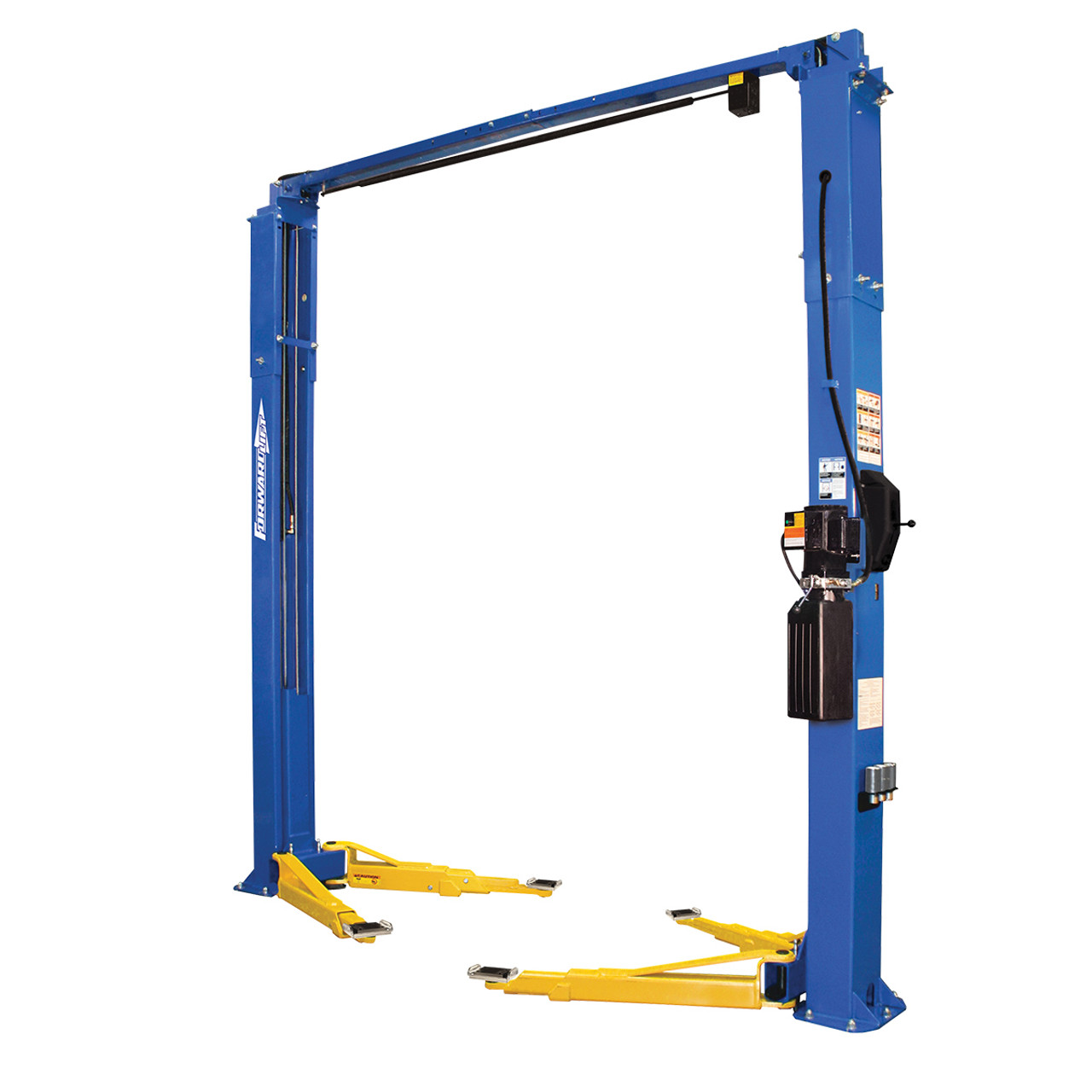

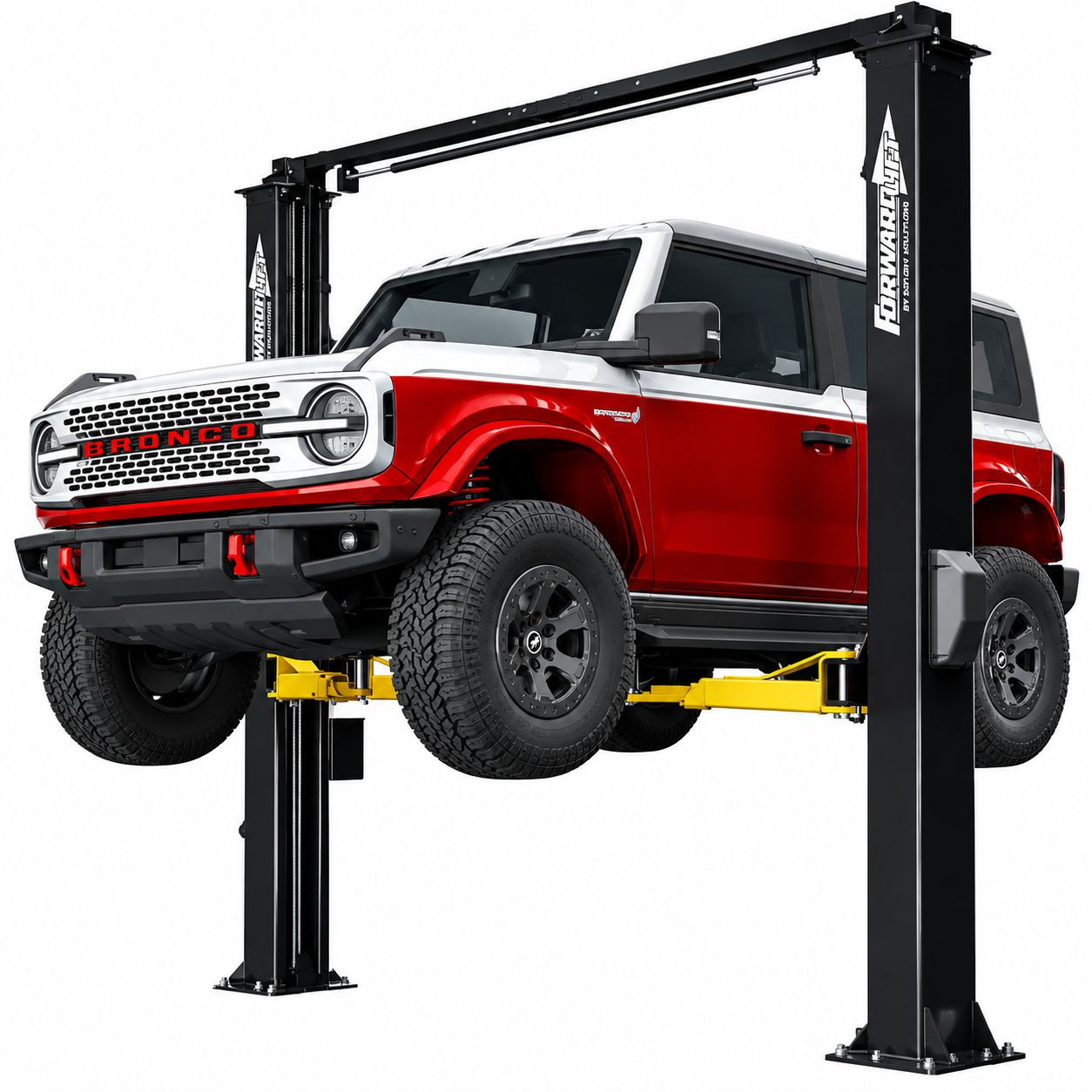

Forward F10 : 10,000 lb. Symmetric 2 Post Lift

Name: Forward F10 : 10,000 lb. Symmetric 2 Post Lift
Brand: Forward Lift
SKU: F10
Price: 4952 USD
Availability: InStock

Forward Lift

$4,952.00

Write a Review

SKU:: F10
Shipping:: Free Shipping
Capacity:: 10000
Configuration:: Symmetric
Design:: Two-Post
Overall Height:: 143''
Overall Width:: 131''
Inside Columns:: 115''
Colors:: Red
Colors:: Blue
Country of Origin:: Asia

Current Stock:

Quantity:

Adding to cart… category.add_cart_announcement

Product Description

F10 Two-Post Lift Features:
Frame engaging rubber padded truck adapters with multiple adapter extensions to raise most vehicles on the road today. Includes four of each of the following extensions: 3.5″ and 5″.

Additional Features:

10,000 lbs. capacity for raising most passenger cars, trucks and vans.
Third party tested by ETL and approved by ALI.
3-stage front and 2-stage rear arms
Adapter storage bracket kit
Hydraulic cylinders in each column:
- Direct pull lifting technology
- Top mounted
- Full stroke
- Cylinder rod concealed inside carriage

Specifications
Specifications

Specifications

Specifications	F10N400MBL*
Capacity	10,000lbs
Max. Rise w/5″ extension	76 1/4″
Overall Height	11′ 9″
Optional Extended Height	13′ 9″ with T100295 kit
Overall Width	10′ 9″ or optional 11′ 5″
Drive through clearance	99″ or optional 105″
Overhead switch height	137 1/8″
Front Arm Reach (Min/Max)	24 1/2″ / 58″
Rear Arm Reach (Min/Max)	36″ / 58″
Min/Max Adapter Height	3 3/4″ without extension 8 3/4″ w/5″ extension
Width Inside Column	109″ or optional 115″
Voltage/Amps	208-230V, 17 amps
Motor/Phase	1PH / 2HP / 60Hz
Ceiling height required	12′
*Lifts available in blue (BL) ONLY Specifications subject to change without notice or liability

Specifications

Capacity 10000

Configuration Symmetric

Design Two-Post

Overall Height 143''

Overall Width 131''

Inside Columns 115''

Colors Red

Colors Blue

Country of Origin Asia
