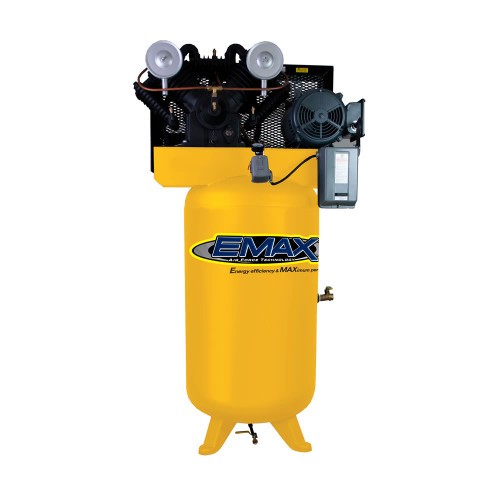

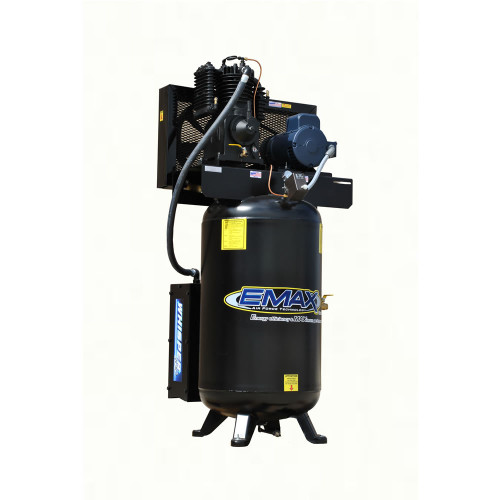

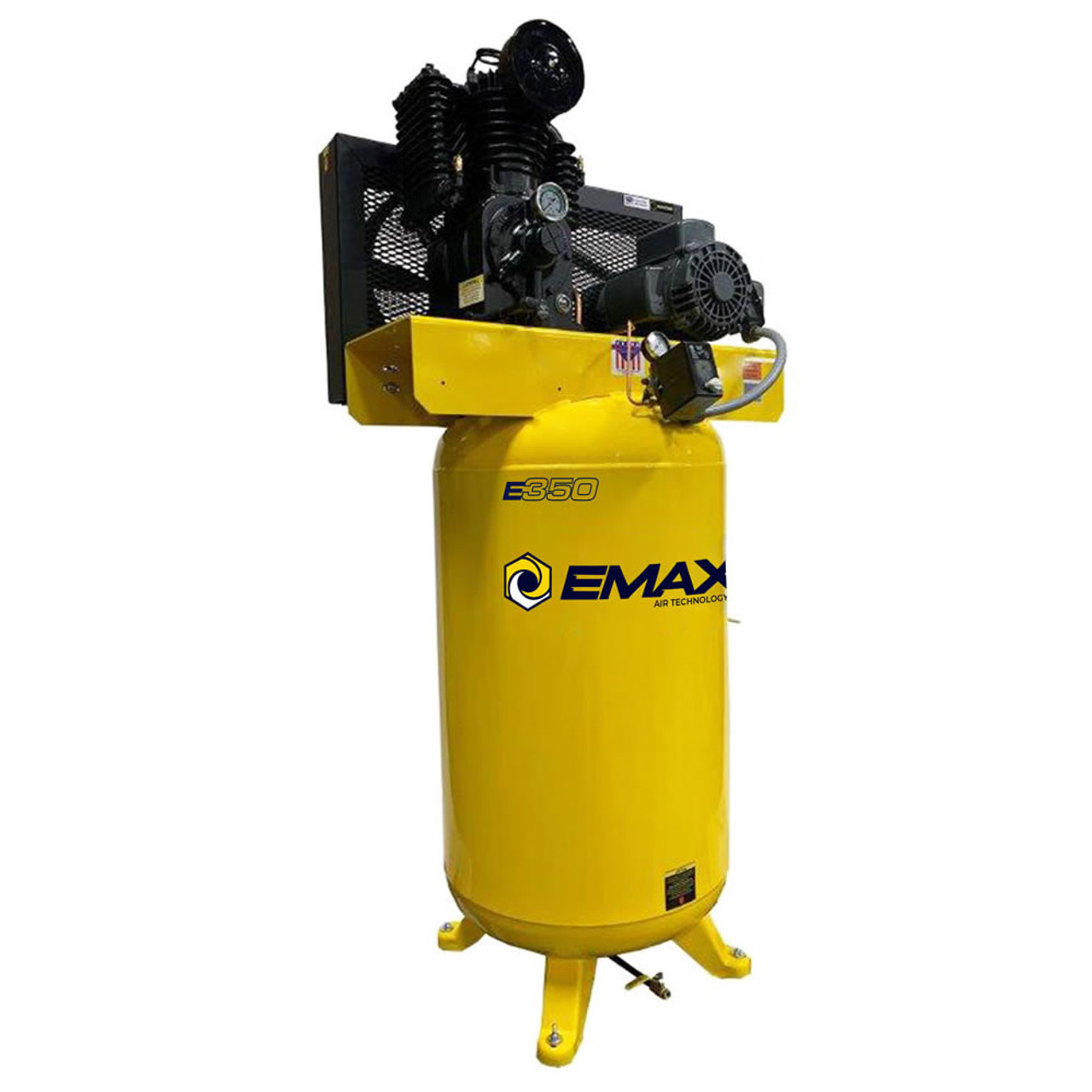

EMAX EI05V080I1 : Industrial 5 HP 19 CFM 1P 2-Stage 80 Gal. Vertical

Name: EMAX EI05V080I1 : Industrial 5 HP 19 CFM 1P 2-Stage 80 Gal. Vertical
Brand: Emax
SKU: EI05V080I1
Price: 2899 USD
Availability: InStock

Emax

$2,899.00

Write a Review

SKU:: EI05V080I1
Shipping:: Free Shipping
CFM:: 11-20
HP:: 5 HP
Motors:: Simplex
Tank Orientation:: Vertical
Voltage:: 208V
Voltage:: 230V
Tank Size:: 80 Gal
Phase:: 1 Phase

Product Description

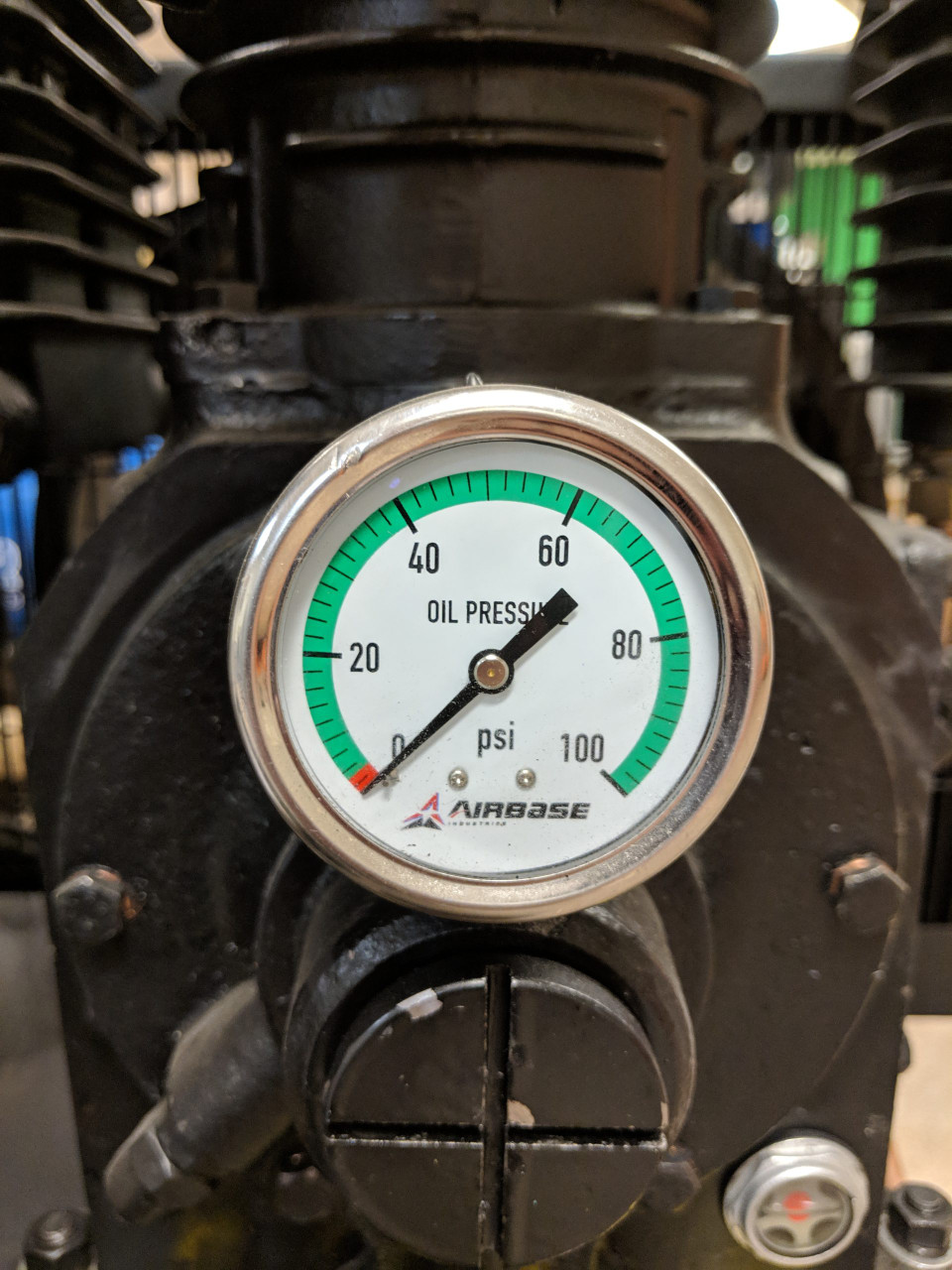

EMAX EI05V080I1 Emax Industrial 5 Hp 1- Phase 2-Stage 80 Gal. Vertical Stationary Electric Air Compressor-With Pressure Lube Pump

Our Industrial Series offers all the same quality and durability as our Plus series without all the extra cost of added features. We offer this series so that anyone can afford to have an EMAX Compressor.

This Industrial 5 HP 2 Stage Inline 1 Phase Vertical 80 Gallon Piston Air Compressor is designed for up to 50,000 hours industrial use with proper maintenance. This unit features our low RPM pumps and delivers 19 CFM @ 100 PSI. Our unit is SUPER COOL & SUPER QUIET!

Our pumps also feature several other key components that ensure durability and performance!

All steel connecting rods with replaceable rod bearing inserts. This allows our rods to be rebuilt! 99% of our competitors now use “throw-away” aluminum connecting rods in their pumps that have no re-build capability.
Removable 100% cast iron cylinders. These solid cast iron cylinders are more stable under heavy workloads and do not warp from heat. Most of our competitors are using aluminum cylinders with a pressed-in sleeve that warp under extreme heat. This makes competitor pumps good for about a 40-50% duty cycle – while claiming a 100% duty cycle. Most of the pumps with aluminum cylinders have to be replaced in 1-2 years because they would not hold up under heavy use. Not our Air pumps! Our solid cast iron cylinders can “take the heat” and are designed to perform on heavy load demands.
All cast iron cylinder heads. Cast iron heads are more durable and dependable for trouble free operation.
“Disc valve design” intake and exhaust valves. Disc valves have been around for over 100 years and have been proven to perform. Most of our competitors are using “throw-away” reed valves which are not nearly as durable and can’t be re-built. Our disc valves come right out of the top of the cylinder head where they can be serviced in minutes instead of hours like reed valves.
Top quality compression and oil rings. Our rings ensure performance with low oil carry over (1-5 PPM).
Precision ground pistons machined to tight tolerances ensures low oil carry over.
Premium “non-absorbent” gaskets prevent oil seepage from pump.
All cast iron flywheel with built-in fan. The extra weight of our cast iron flywheel during run cycle gives the pump more “throw” on the compression stroke which will result in fewer loads on the electric motor. Some manufacturers use aluminum flywheels that do not have the proper weight ratio to give the proper throw on the compression stroke when the pump is running.
Built-in head unloaders. These unloaders are built into the intake valve assembly on the compressor head and perform a valuable function. They unload or open the intake valves under constant run applications. This feature reduces internal pump heat from compression because the intake valve is held open throughout the unloading cycle. This allows fresh air to come into the cylinder chamber. Under the compression stroke, the unloader holds the intake valve open allowing the air to blow back out the intake filter. This fresh air absorbs the heat out of the pump under heavy workloads.
Built-in inter-cooler and after-coolers. The inter-cooler allows air to be cooled between stages while the air cooled after-cooler provides a second cooling stage that cools the air before it goes into the tank. Our after-cooler also includes an all copper main feed line from the pump into the tank.

Specifications
Specifications

Specifications

CFM @ 100 PSI	19
Compressor Stage	Two
Pump RPM	800
Pump Material	Solid Cast Iron
Pump Model	APP2I0524TP
Dimensions LxWxH	31"X33"X75"
Product Weight	576
Motor RPM	1750
Motor Phase	Single
Voltage available	230
Tank Size	80 Gallon
Tank orientation	Vertical
Tank Outlet Size	3/4"

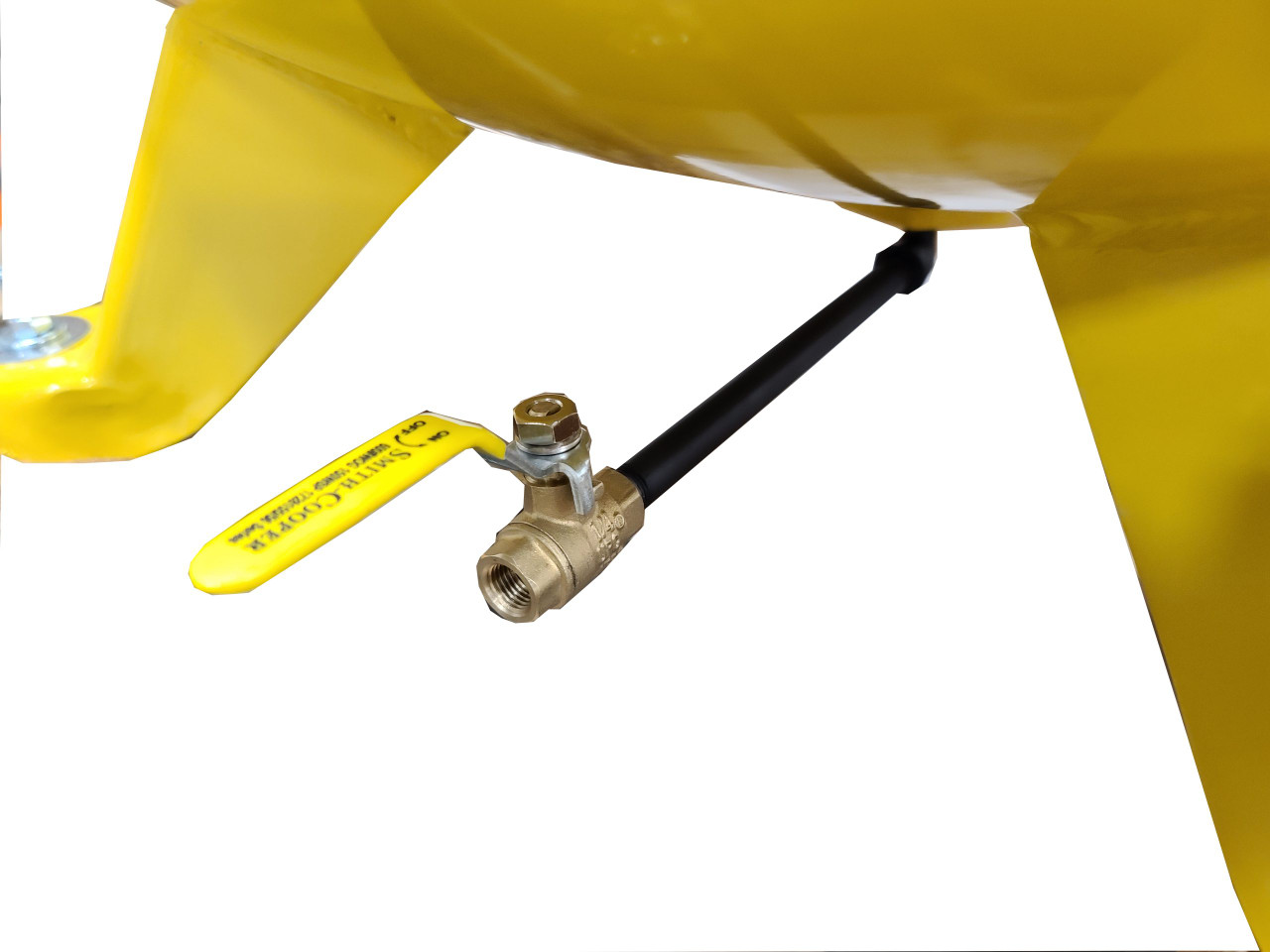

Tank Drain	Manual
Certifications	CSA, ASME,ETL
Warranty	1 Year Standard, 5 Year Extended, Lifetime Extended
Running AMP	24
Recommended Breaker	40 AMP
Max PSI	175
Oil Capacity	2 Quarts
Drive Type	Belt Driven
Tank Size	80 Gallon

Specifications

CFM 11-20

HP 5 HP

Motors Simplex

Tank Orientation Vertical

Voltage 208V

Voltage 230V

Tank Size 80 Gal

Phase 1 Phase
