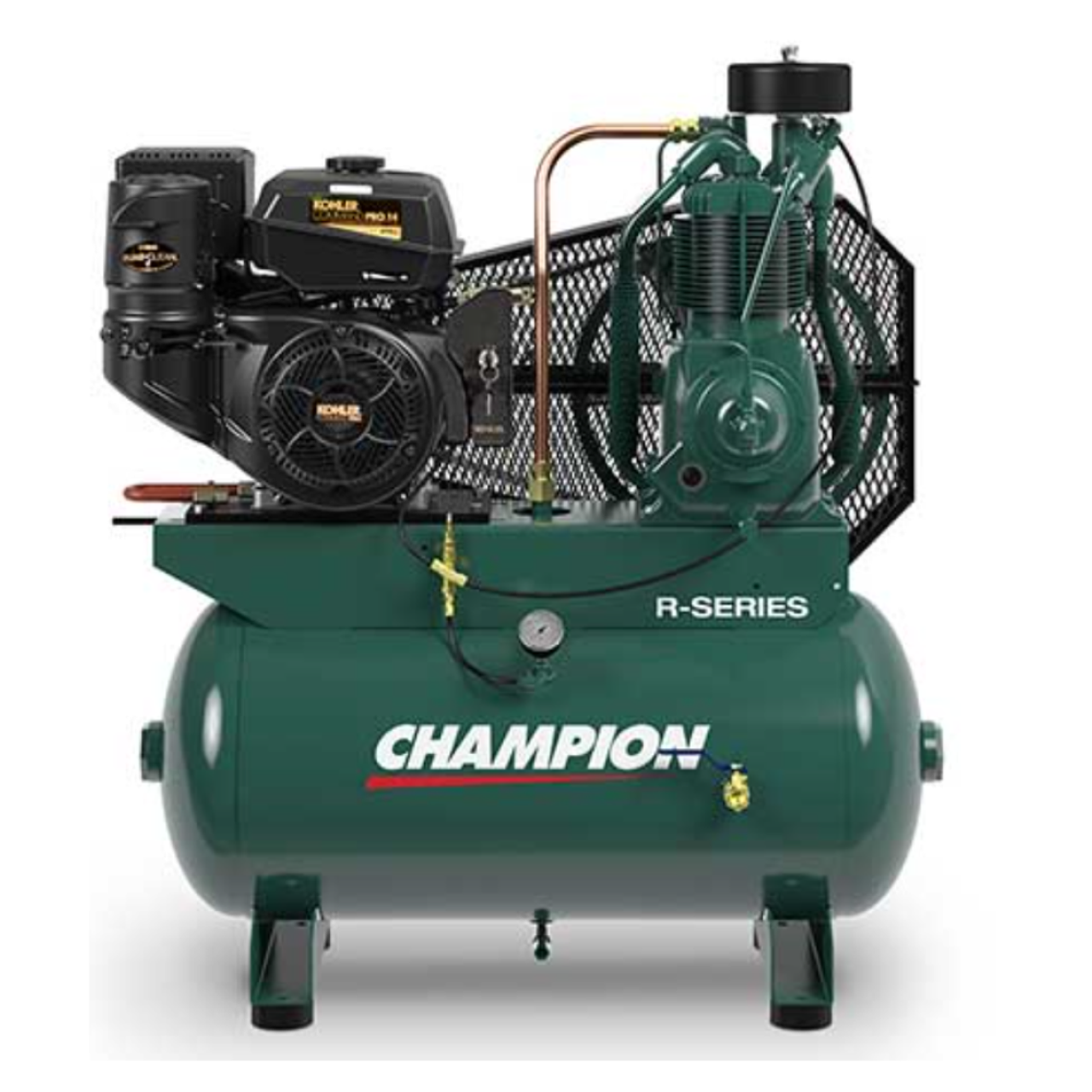

Champion HGR7-6K : 14 HP 60 Gal. Gas Powered Compressor

Name: Champion HGR7-6K : 14 HP 60 Gal. Gas Powered Compressor
Brand: Champion
SKU: HGR7-6K
Price: 4309.07 USD
Availability: InStock

Champion

$4,309.07

Write a Review

SKU:: HGR7-6K
Shipping:: Calculated at Checkout
CFM:: 21-30
HP:: 14 HP
Tank Size:: 60 Gal

Product Description

Champion HGR7-3K 14 HP, 30 Gallon Horizontal Engine Driven Compressor

Champion is the leader in manufacturing dependable compressed air systems. Champion offers a complete line of engine driven compressor packages from 9.1-22.5 HP to meet any application. With an engine driven package there is no need to worry about electrical service. Engine driven air compressors are designed to provide compressed air in remote locations or for emergency production line needs.

R-Series Engine Drive Compressor Features:

All engines come standard with electric key start switch R Series Compressor pump All pumps come standard with head unloaders for constant load/no load operation ASME coded receiver (EXCEPT Base Mount and Low Profile tank models) Intake Filter / Silencer Enclosed Belt Guard Vibration Isolators

R-Series Design Features:

Engine | Comprehensive gas or diesel engine offering with sizes from 9.1-22 HP Flexible Oil Drain Hose | Clean services without messy oil spills Belt Tensioning System with Engine Slide Base | Provides easy service adjustments to the drive belt. The base plate also provides a sturdy platform to assist in vibration reduction High Mounted Pressure Gauge | Easy to read and reduces the risk of damag Simple Mounting Feet | One piece design for easy mounting Precise Throttle Control | Designed to provide accurate load control and easy starting Industrial Duty Cogged V-Belts | Provides maximum reliability and service life with minimal adjustments Top Plate Design | Extra clearance allows an abundant amount of room for hands and tools when servicing Pilot Unloader Valve | No more draining the tank pressure from job site to job site. With a simple flip of the valve, the package can be started with a fully pressurized tank Legendary Compressor Pumps | Utilizes the R & PL Series compressors for the most dependable package in the industry

Standard Features: Two-Stage Compressor Pump Available in Splash or Pressure Lubrication ASME & CRN Certified 30, 60, 80 Gallon Horizontal Air Receiverso Manual Receiver Drain Valveo Pressure Relief Valveo Service Valveo Pressure Gaugeo Receivers Include Vibration Isolators Belt Driven Electric Start Totally Enclosed Belt Guard Oil Level Sight Glass Reliable, High Flow Disc Valves Intercooler for Cooling Between Stages Precision Balanced Flywheel for Optimum Compressor Cooling Gasketless Designed Integral Cylinder/Head 5 Year Compressor Pump Warranty Pumps Factory Filled with ChampLub Lubricants and are tested at the factory prior to shipment Available with Preset Pressure Ratings up to 250 PSIG with the PL-Series Pump

Specifications

Specifications

CFM 21-30

HP 14 HP

Tank Size 60 Gal
