Beissbarth Easy Tread : Tire Diagnostic System (Flush)

Name: Beissbarth Easy Tread : Tire Diagnostic System (Flush)
Brand: Beissbarth
SKU: 1 691 200 049
Price: 26860 USD
Availability: InStock

Beissbarth

$26,860.00

Write a Review

SKU:: 1 691 200 049
Shipping:: Free Shipping

Product Description

Tire diagnostic system Easy Tread 2.0 | Underfloor

NEW: Easy Tread 2.0 comes standard with a connectivity kit to digitize and automate your vehicle acceptance:

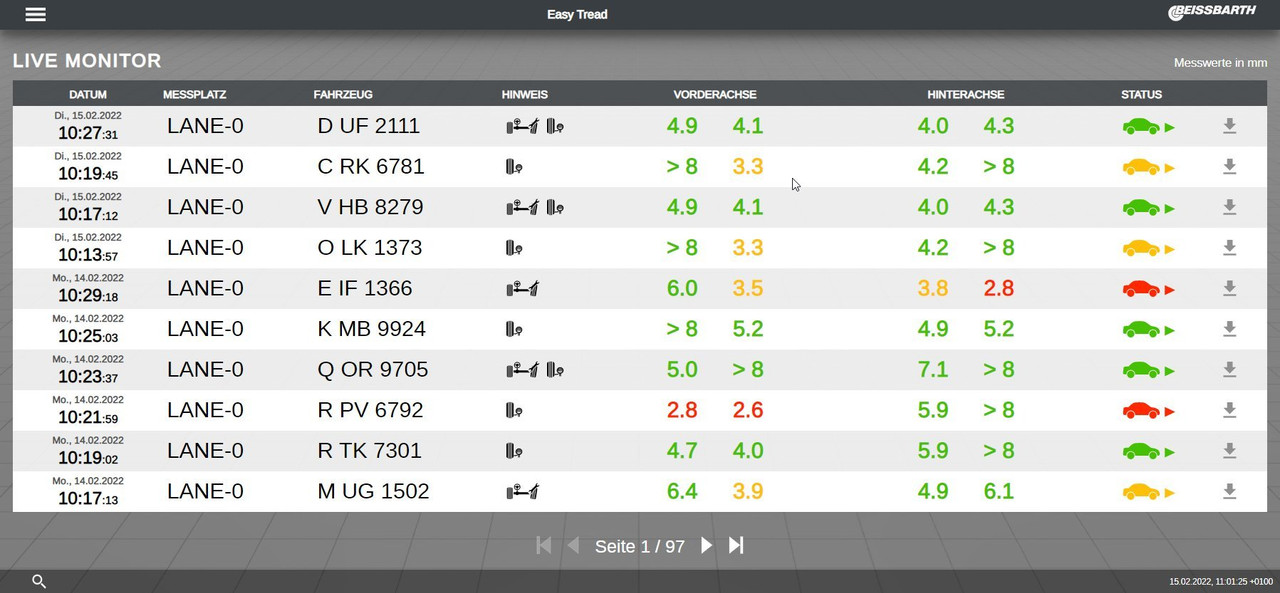

Live view of all crossings of multiple Easy Treads in the same workshop network
20% faster readings
Connection option via ASA interface
Simplified connection to local workshop network
New interface for easy integration into third-party systems
Direct connection of monitors and TVs without using the browser
Optimized statistics functions

Easy Tread - Tire diagnosis while driving over

Especially in electric vehicles, the high weight and torque cause enormous wear on tires and chassis components. With the automatic tire diagnosis of every vehicle entering the company, you not only keep the tire business in your company, but also create a basis for strong customer loyalty through the issue of safety. The immediate evaluation of the tire wear pattern simultaneously generates service options for wheel alignment and, if necessary, subsequent calibration of driver assistance systems.

Measurement of tread depth and evaluation of abrasion pattern in seconds
Issue of concrete recommendations for action for the vehicle

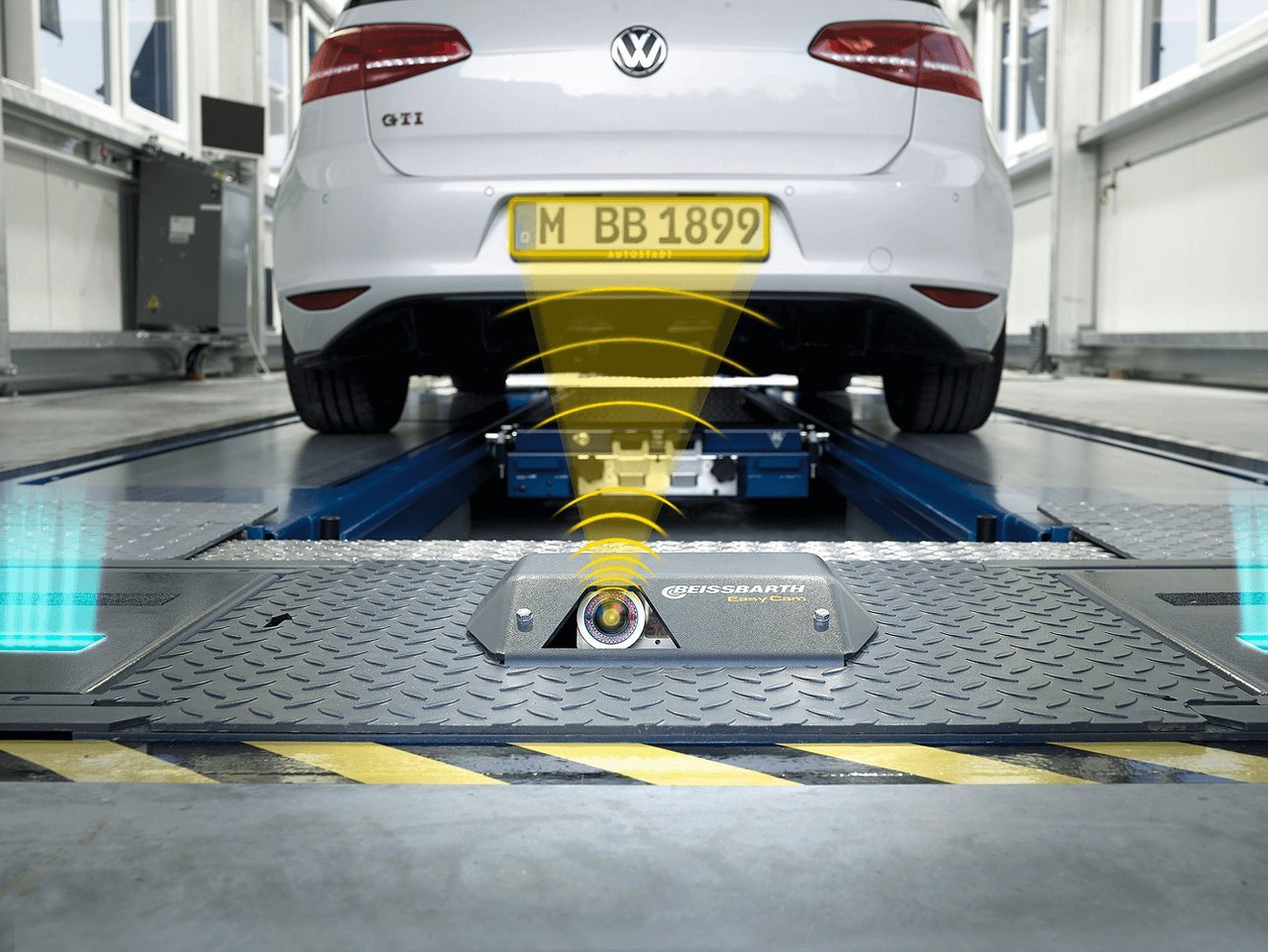

Automatic recognition of national and international license plates
Measurements possible in both directions
Up to 8 km/h crossing speed
High measurement accuracy due to maximum tire contact area
Access to measured values even without a PC (e.g. via tablet, TV, mobile phone)
Performance statistics for better control and targeted optimization of your processes
No moving mechanical components (low maintenance)
Quality from Germany

Scope of delivery:

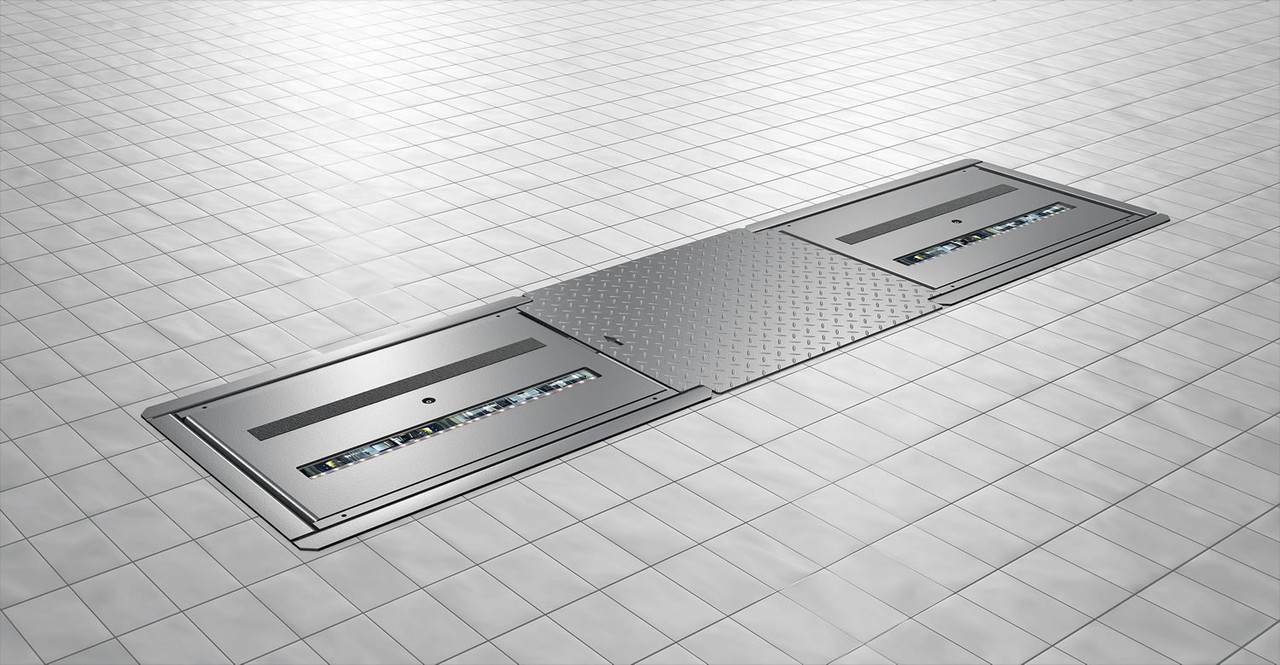

Easy Tread modules for underfloor installation (measurement modules, LAN cable, main switch box)

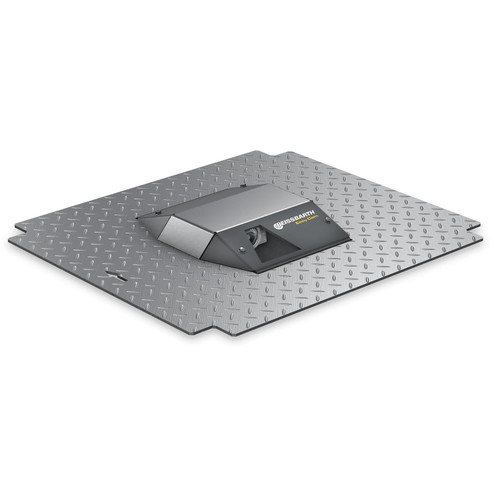

ANPR camera with cover plate

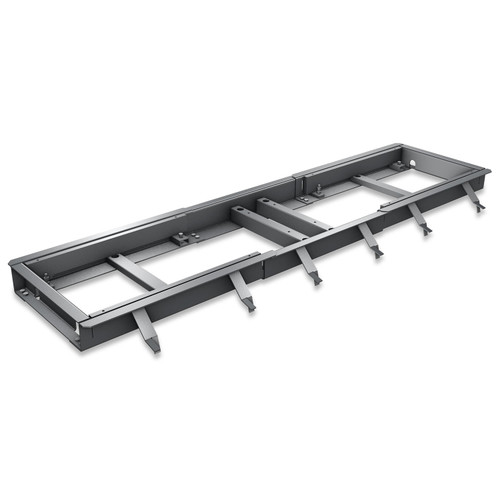

Foundation frame
Connectivity Kit

Note: Foundation work is required.

Specifications
Product Videos

Specifications

Tire width max.	450mm
Weight	230
Protection class	IP65
depth	1040mm
Height	85mm
Packaging Unit	1 pallet(s)
Electrical connection	100 - 230V \| 50 - 60 Hz \| 1 ph
Width	2245mm
Axle load max.	4t
Working temperature	0 - 40 °C
Track width	1080 - 1820mm
Measurement accuracy	± 0.25mm
Speed max.	8km/h
Packaging length	1250mm
Packaging width	850mm
Packaging height	1050mm
Gross weight	258kg
Country of origin, customs	EN
Number of languages (software)	18
