Beissbarth Easy 3D Excellence: Camera Aligner w/ Premium Cabinet

Name: Beissbarth Easy 3D Excellence: Camera Aligner w/ Premium Cabinet
Brand: Beissbarth
SKU: 1690700113
Price: 23676 USD
Availability: InStock

Beissbarth

$23,676.00

Write a Review

SKU:: 1690700113
Shipping:: Calculated at Checkout

Product Description

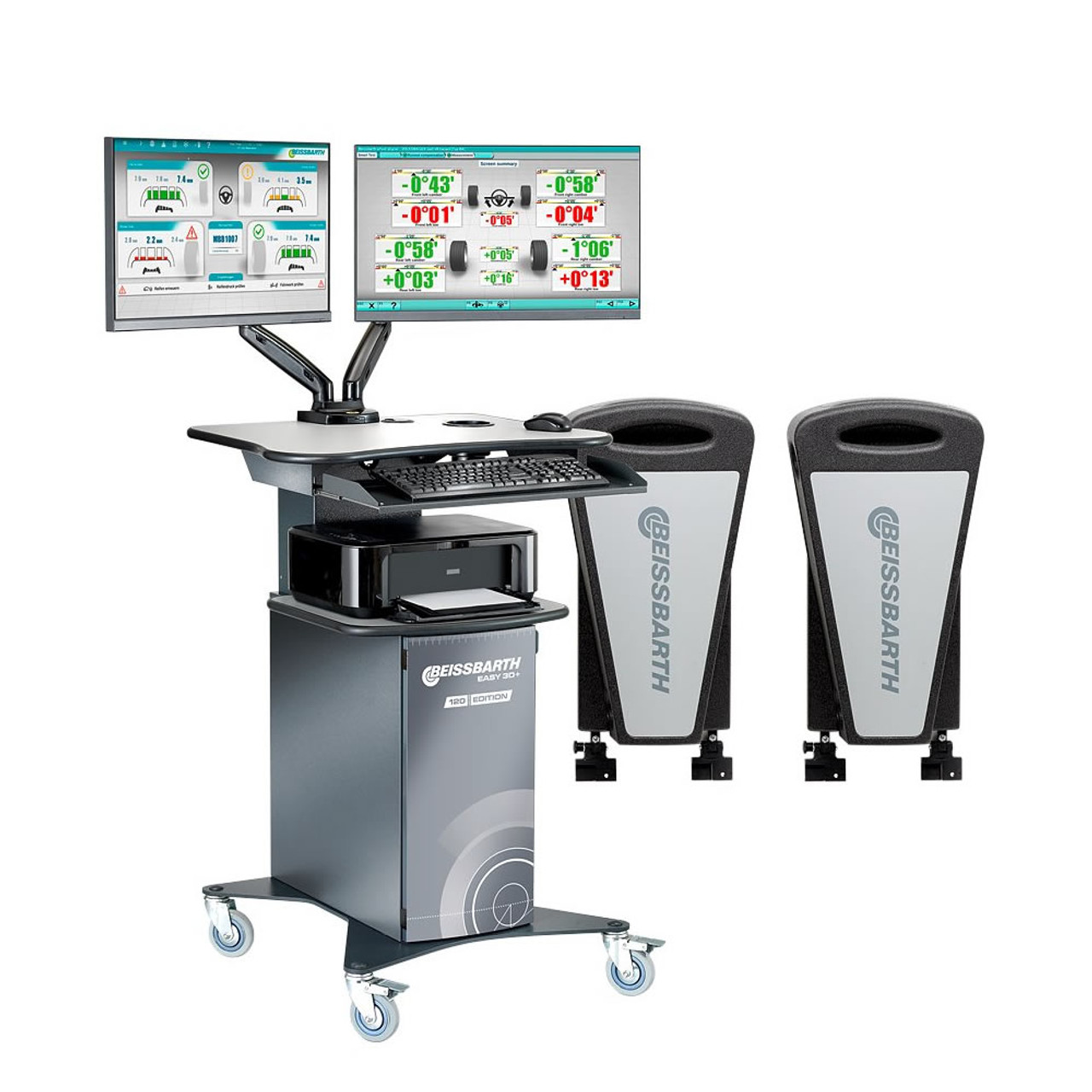

Wheel aligner Easy 3D+ | 120 Years Limited Edition

Wheel Alignment with 3D technology - High speed, high precision and easy to use | Cable version | with cabinet, High Performance PC, 2 x 27" monitor and printer | incl. lift adapter, cable set, turntable, wheel clamps and OEM magnetic clamp

NEW: Now with SmartTest - Quick alignment check with printout in under 90 seconds

•   Highly automated routine
•   Automatic target recognition
•   Automated printout of protocol and reset for next vehicle check

NEW: New cabinet with second monitor for parallel use of additional equipment such as tyre tread reader Easy Tread, diagnostic testers, dealer management systems, head light testers, etc.

Perfectly integrated in ADAS calibration and head light testing:

•   The space in front of the lift can be used for the ADAS calibration jig and head light tester
•   Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle
•   No need for extra cameras, cables, or clamps required for DAS calibration
Best in class: +/- 2 minute accuracy:
•   Engineered and produced in Germany
•   No fixed position for targets on the vehicle eliminates room for error
•   Plug & play: no calibration required for installation or for exchanging targets
•   Space-saving and easy storage of sensor heads on wall mount kit
•   Beissbarth DualView camera system for ultimate control, especially of complex chassis
•   OEM magnetic clamps for safe mounting on the wheel
•   120 year anniversary edition with 3 years of free vehicle spec updates

Scope of delivery:

•   Sensor head with DualView camera Technology
•   +Software with SmartTest and ADAS calibration Option
•   Target boards
•   Vehicle specs database
•   Cabinet
•   HighPerformance PC
•   2 x 27" Monitor
•   Printer
•   Multi-Fit wheel camp 13" - 22" with standard and Softline claws
•   OEM magnetic clamp
•   Lift Adapter
•   Cable set, 15 m
•   Turntable
•   Remote Control
•   Brake pedal depressor and steering wheel holder

Specifications

Specifications

Operating temperature 5 - 40 °C
Storage temperature -20 - 60 °C
Version 3D
Relative humidity, use (40 °C) 10 - 90 %
Height sensor head 130 mm
Width sensor head 320 mm
Depth sensor head 630 mm
Weight sensor head 9,3 kg
