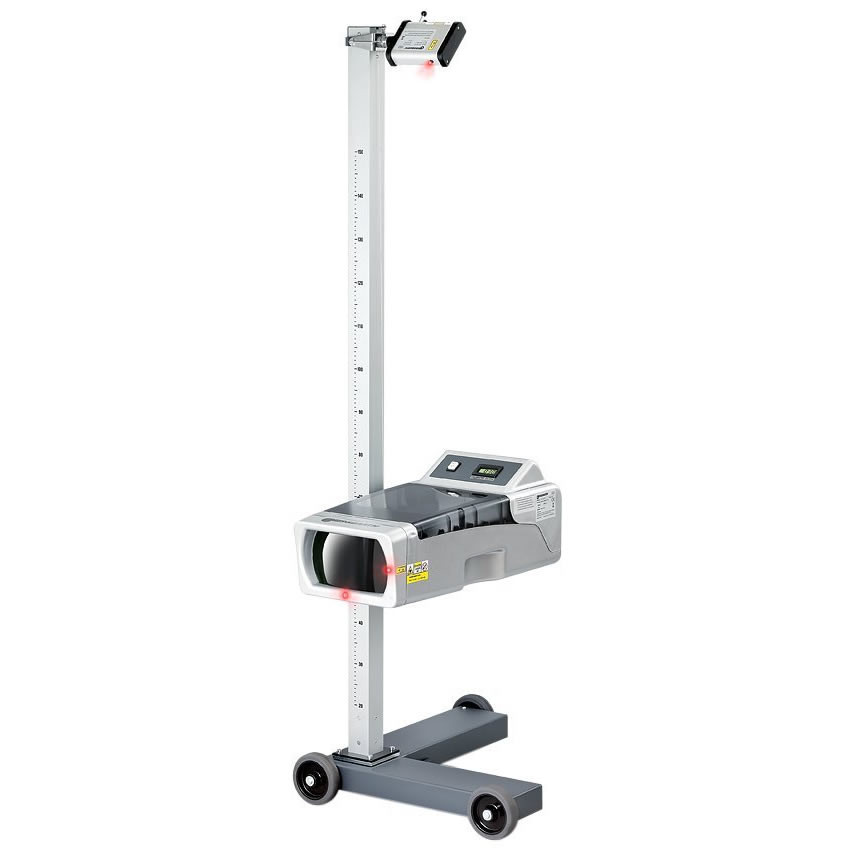

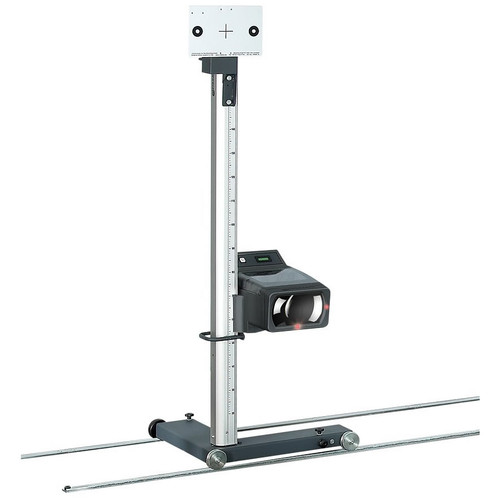

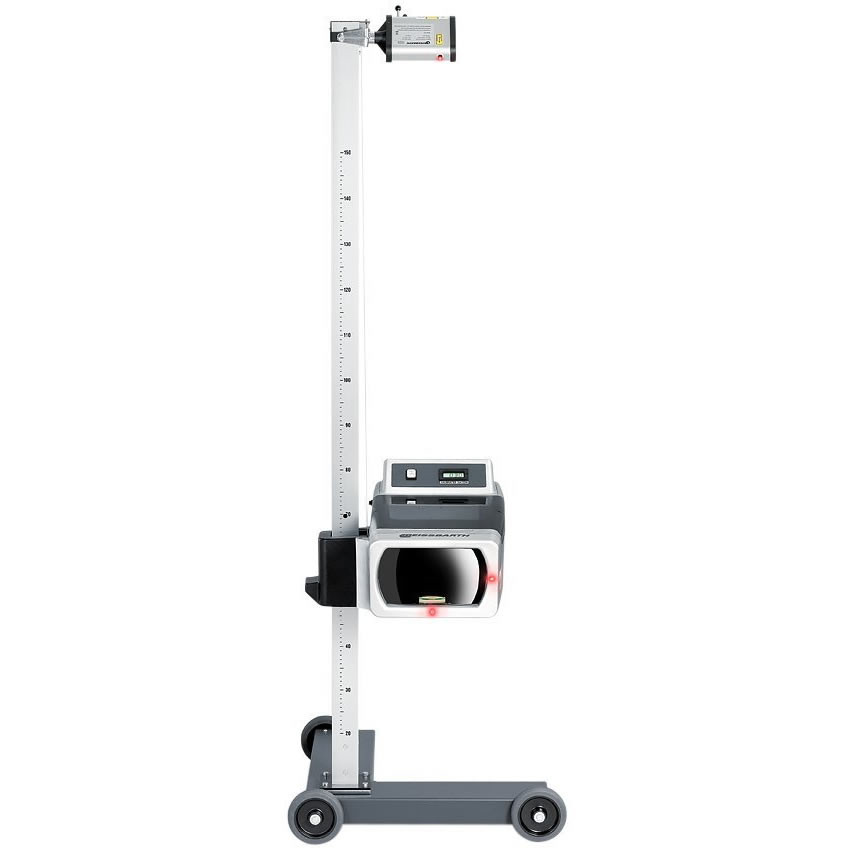

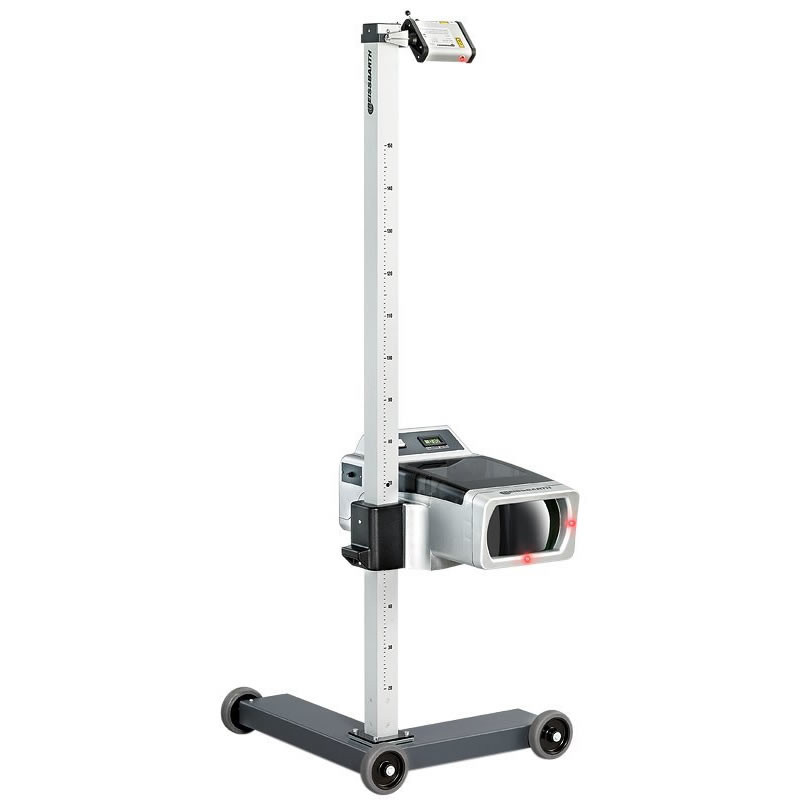

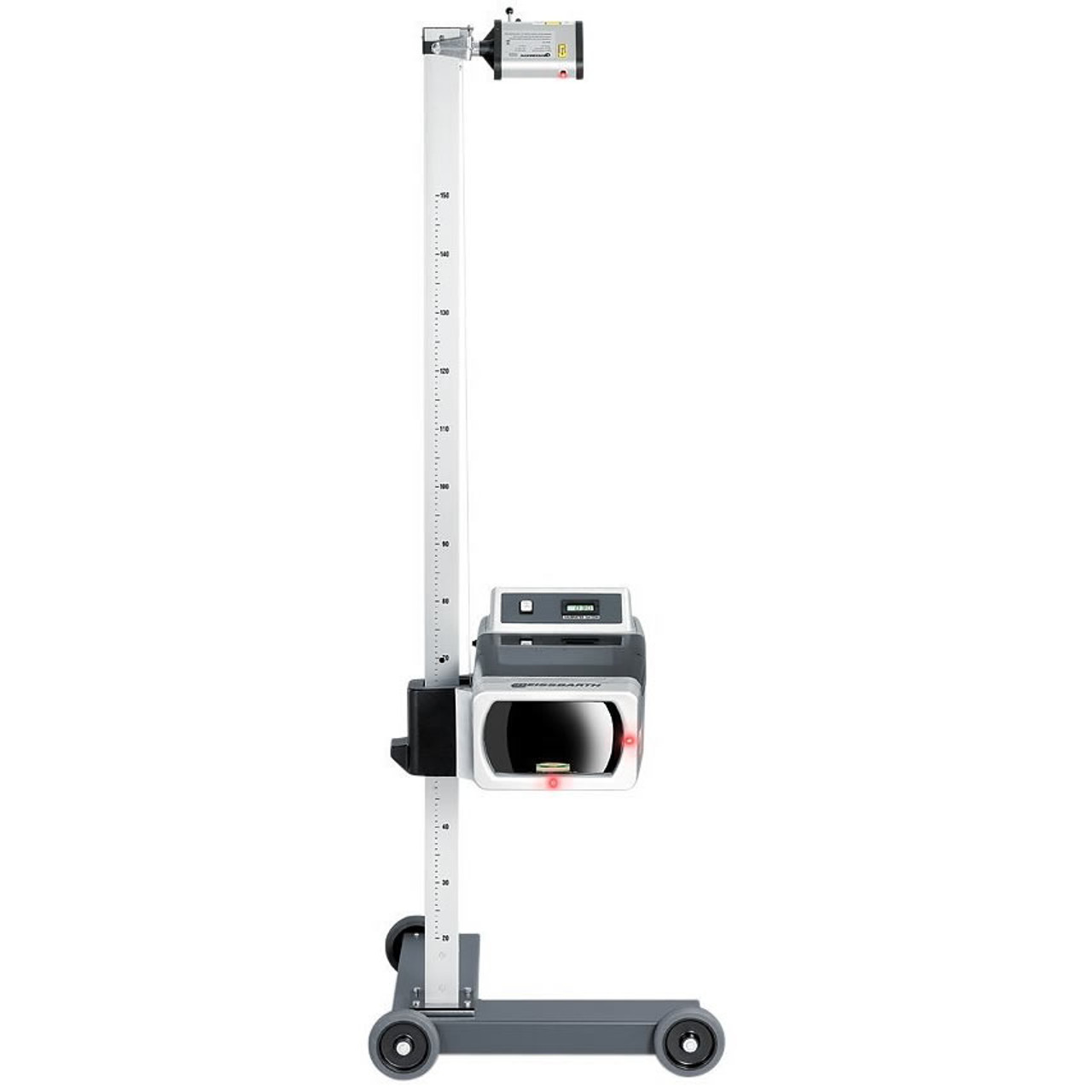

Beissbarth 1692104357 : MLD 10 Headlight Testing Device

Weight	33 kg
Operating temperature	5 - 45 °C
Battery voltage (DC)	9 V
Height of light center	250 - 1250 mm
Measuring range lowest stand/highest stand	0 - -400 mm
Illumination	(25m) 0 - 240 lx
Storage temperature	-25 - 45 °C
Version	- Analogue
Packaging length	1810 mm
Packaging width	660 mm
Packaging height	500 mm
Gross weight	53 kg
Measuring range low beam left/right	300 - -300 mm
Measuring range high beam left/right	50 - -300 mm
Relative humidity storage	20 - 80 %
Relative humidity, use	30 - 60 %
Radiant power alignment laser	5 mW
Operating voltage alignment laser	3 - 5 V (DC)
Laser class alignment laser	3R
Projection alignment laser	130° x 0,4 mrad
Laser diode alignment laser	635 nm
Laser class cross laser	3R
Projection cross laser	90° x 0,4 mrad
Laser diode cross laser	635 nm
Radiant power cross laser	5 mW
Operating voltage cross laser	3 - 5 V (DC)
Integrated inclinometer	No
