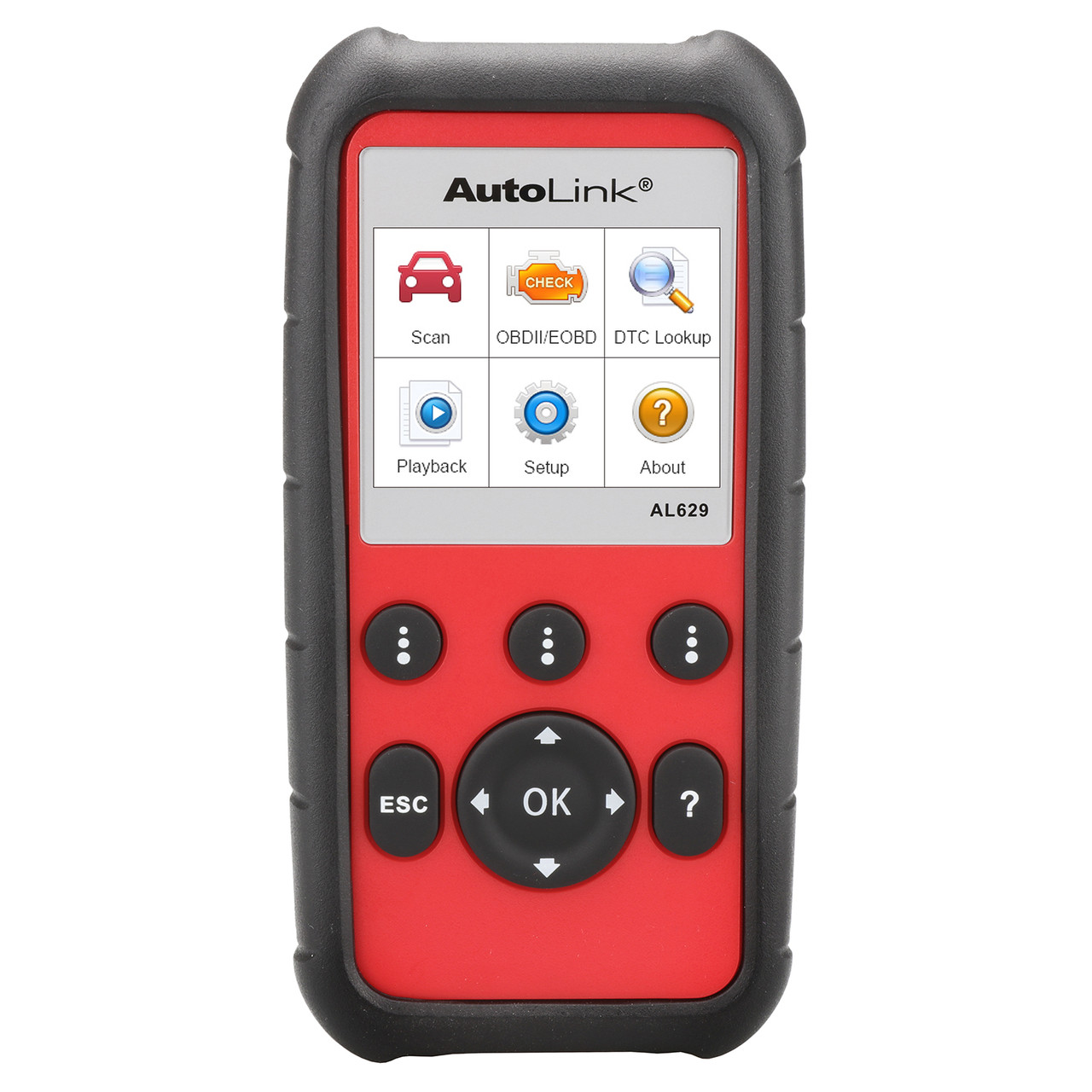

The AutoLINK AL629 can read and erase codes on domestic, Asian, and European vehicles, 1996 and newer. In addition to scanning engine codes, the AL629 can also scan ABS, SRS (airbag) and transmission systems for codes. The AL629 can retrieve vehicle information (VIN, CALID and CVN). The AL629 displays graphs, records, and plays back Live Data and supports all 10 test modes of the latest J1979 OBDII test specs. The AL629P also presents I/M Readiness (emissions) status. The tool also presents enhanced Mode 6 data. Users can view Data Trouble Code (DTC) definitions on screen. The AL629 features a 2.8” LCD display and can print a repair report when connected to a pc. Software updates, easily downloaded directly from Autel’s website, are free for the life of the tool.
Features:
| Display | 2.8-inch LCD (320 x 240 dpi) |
| Connectivity | USB mini 2.0 OBD II DB15 |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| External Power | 8.0 to 18.0 V power provided via vehicle battery |
| Dimensions (LxWxH) | 182.8 mm (7.2”) x 90.9 mm (3.6”) x 33.2 mm (1.3”) |
| Weight | 237.9 g (0.524 lb.) |
