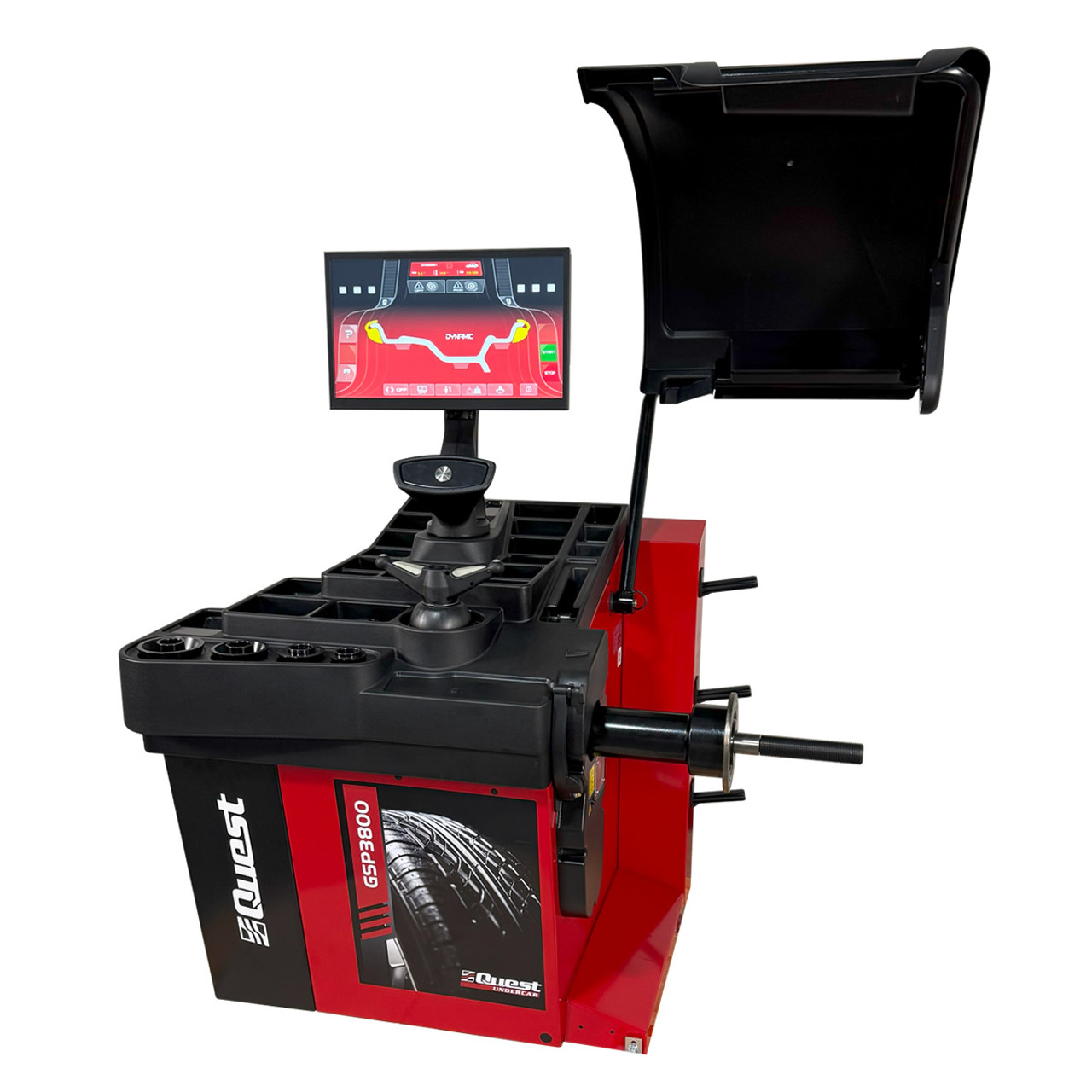

Quest GSP3800 : Hi-Performance Touch Wheel Balancer

Name: Quest GSP3800 : Hi-Performance Touch Wheel Balancer
Brand: Quest Undercar
SKU: GSP3800-TOUCH
Price: 9294.61 USD
Availability: InStock

Quest Undercar

$9,294.61

Write a Review

SKU:: GSP3800-TOUCH
Shipping:: Free Shipping

Product Description

The user-friendly graphic interface, together with the latest touchscreen technology on 22” widescreen monitor simplify and speed-up all operations and program selection.
New digital gauge for the acquisition of the diameter and distance with the AUTOSELECT UP function and new integrated LaserBlade pointer: the AUTOSELECT UP function automatically activates the balancing program avoiding selection via the keypad, while the LaserPlane pointer (inside the measuring arm) guides the operator in choosing the level within the alloy rim without any errors and with extremely good visibility
Three modes to position the adhesive counterweights: with the weight holder clip, with the 6 o’clock laser indicator, or manually at 12 o’clock.
TL3 automatic sensor for measurement of wheel width (optional)
RPA Sensor auto positions the wheel and is braked into position at the end of the spin (RPA).
Integrated LED spotlight to light-up the work area and make it easier to clean the rim, and apply the counterweights.
The EASY WEIGHT programme suite including, among others, also the MINIMUM WEIGHT software, comes as standard. It allows reducing, also through the analysis of the different threshold values, the number of weights based on vehicle type: fast or slow (unique on the market)
Sonar Runout (optional) provides diagnostics for wheel radial run-out that causes vibrations that cannot be fixed with a simple wheel balancing. The presence of the SONAR RUN-OUT sensor automatically activates the new BESTFIT software function which indicates on the screen the point of highest wheel run-out and suggests how to mount it on the hub of the vehicle, before tightening the bolts, to eliminate vibrations directly during the assembly on the vehicle.
Easy Tire Set provides optimal positioning on the vehicle for maximum comfort and vehicle safety. Only if equipped with SONAR RUNOUT Kit
Space-saving wheel guard designed to allow wheel balancer wall mounting as well holding wheels up to a maximum diameter of 44
To improve the ergonomics and make the access to the inner part of the rim easier for the operator.
Multi-function Button speeds up the different work programs.
Ergonomic Weight Tray provides functional large trays to hold the different types of counterweights and tools.
Comes standard with basic cone package, speed clamp, calibration tool. *Optional 8 Collet Package available upon request.

Specifications

Specifications

Balancing speed	75 / 85 / 98 rpm
Maximum wheel weight	75 kg
Resolution	1 g
Average measuring time	5,5 s
Shaft diameter	40 mm
Rim width setting range	1,5 - 20 "
Rim diameter setting range	1 - 35 "
Rim diameter measurable with the sensor	10 - 28 "
Maximum wheel width	560 mm
Maximum wheel diameter	1118 mm
