Emax APP4V2598TP : 25 HP 98 CFM Displacement 2 Stage Pump Reciprocating Bare Pump

Name: Emax APP4V2598TP : 25 HP 98 CFM Displacement 2 Stage Pump Reciprocating Bare Pump
Brand: Emax
SKU: APP4V2598TP
Price: 3299 USD
Availability: InStock

Emax

$3,299.00

Write a Review

SKU:: APP4V2598TP
Shipping:: Free Shipping
Voltage:: 208V
Voltage:: 230V
HP:: 25 HP
CFM:: 91-100

Product Description

EMAX APP4V2598TP 25HP 98CFM Displacement 2 Stage Pump Pressure Lubricated Reciprocating Bare Pump w/flywheel

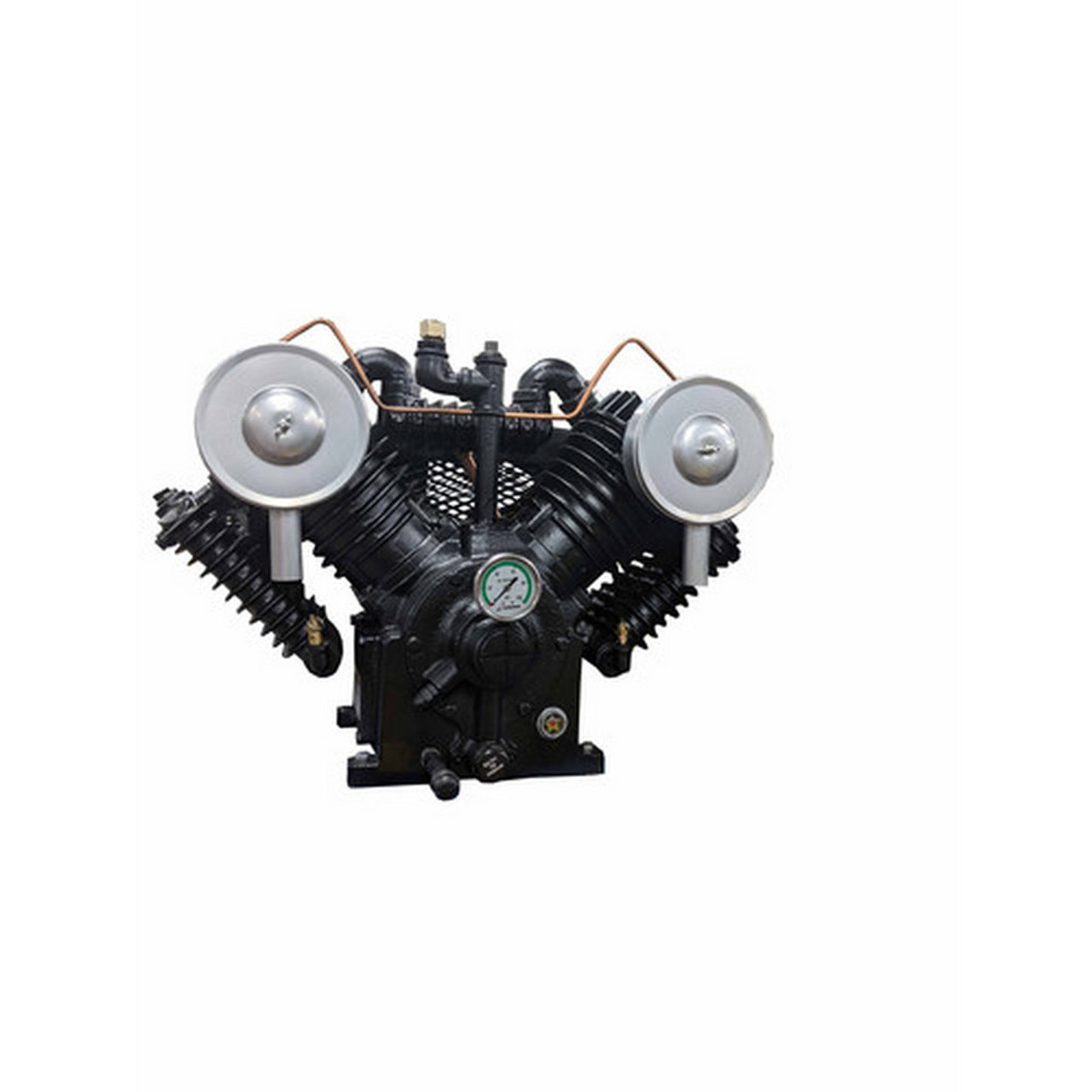

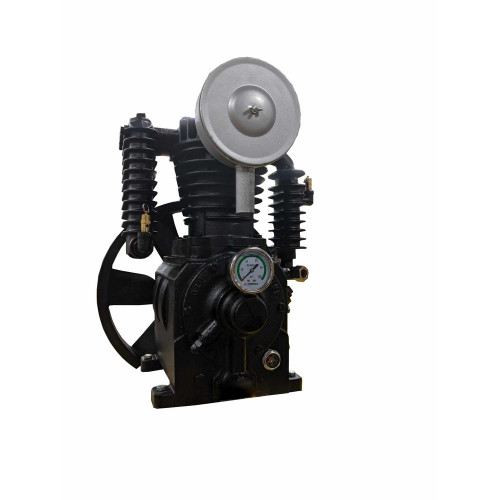

This Emax 25 HP, 4 Cylinder, 2-Stage, air compressor pump has 98 CFM Displacement.

This pump is ALL CAST IRON, (not aluminum). It has solid cast iron cylinder, cylinder heads, crankcase, flywheel, crank, and forged steel connecting rods – not aluminum! These rods also have a replaceable bearing on the crank journal and on the wrist pin journal. This is what most of the competition do not have.

This pump has large Timken-Style roller bearing on the crank ends on each end of the crankshaft. This ensures good crank stability and long compressor bearing life. Each cylinder is all cast iron with no sleeves or aluminum. All cast iron prevents cylinder distortion and egg-shaped cylinders when pump gets hot. This pump has 2 B-Section belt drive. Twin belt ensures better belt gripage and longer belt life. This pump has head unloaders. This is very nice for continuous run applications such as gasoline driven or electric driven high duty cycle applications. Head unloaders are an air cylinder in each head. When air is applied to them, they open or push the intake valves open allowing the pump to go into a free wheel mode. The cylinders are still moving in a free wheel mode, but it cannot compress the air because the intake valve is held open. This pulls cool air into the cylinder. The cool air absorbs the heat in the pump and blows it back out the intake valve. This is nice when you are sandblasting, etc., under heavy duty cycles. This pump has a site glass to view your oil level.

Specifications
Specifications

Specifications

CFM @ 100 PSI	98
Compressor Stage	Two
Horse Power	25
Pump Material	Solid Cast Iron
Pump Model	APP4V2598
Dimensions LxWxH	28" X 21" X 20.5"
Product Weight	350
Bolt Pattern	9.25" x 9.25
Oil Capacity	2 Quarts

Specifications

Voltage 208V

Voltage 230V

HP 25 HP

CFM 91-100
