Specifications
- Kit ideal for large AG and Construction OTR tire service inflation/deflation
- Kit promotes safety during inflation/deflation process
- Keeps tire techs out of trajectory rim/wheel area “danger zone”

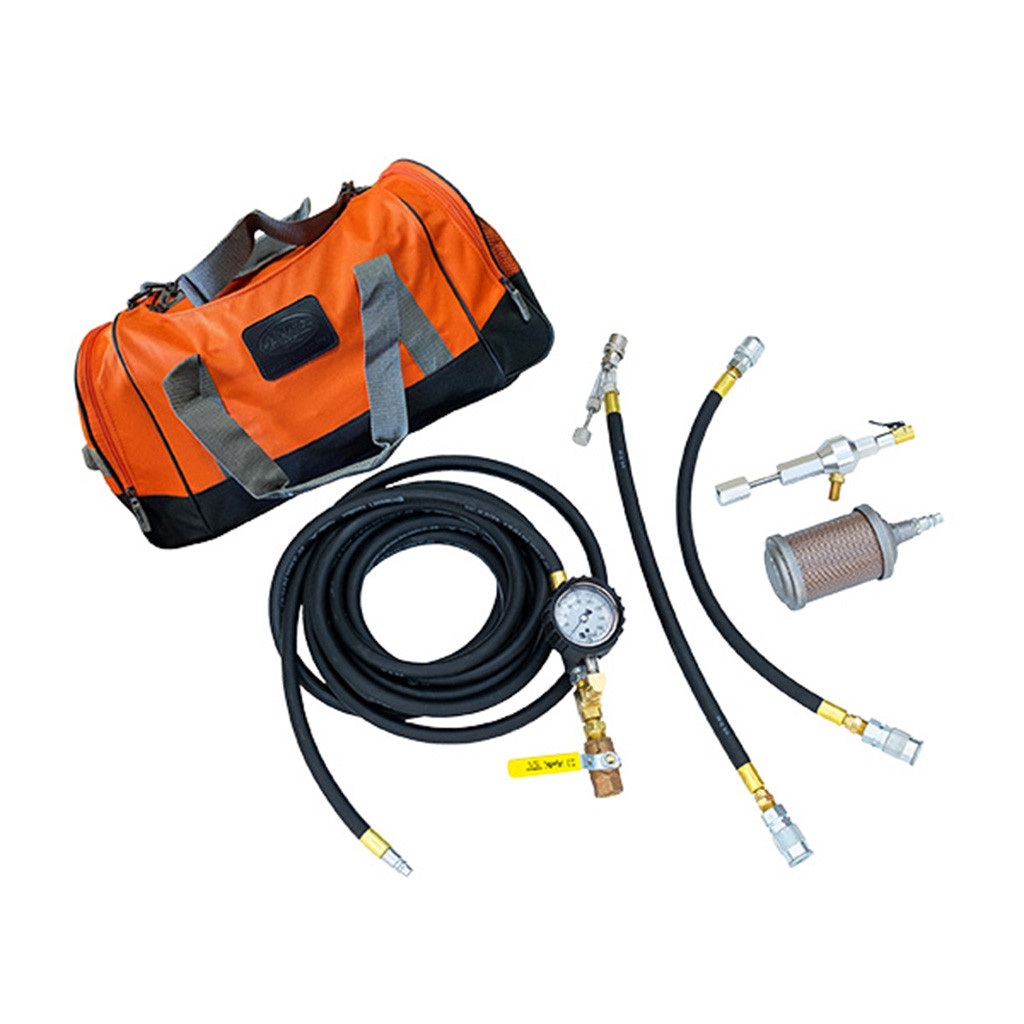

- Comes equipped with all hoses and fittings in Hi-Vis Carrying Bag*

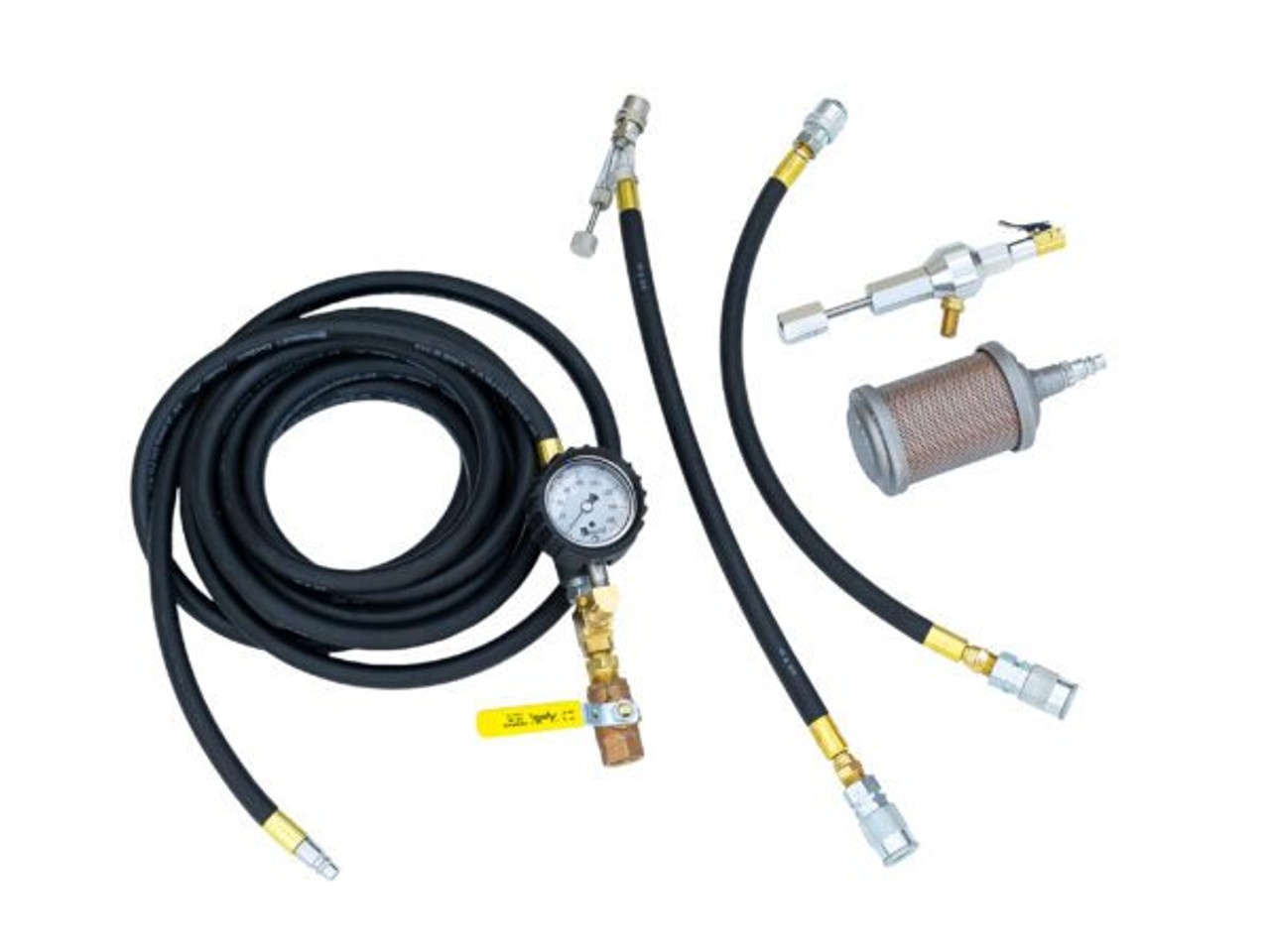

INFLATION / DEFLATION KIT COMPONENTS INCLUDE:

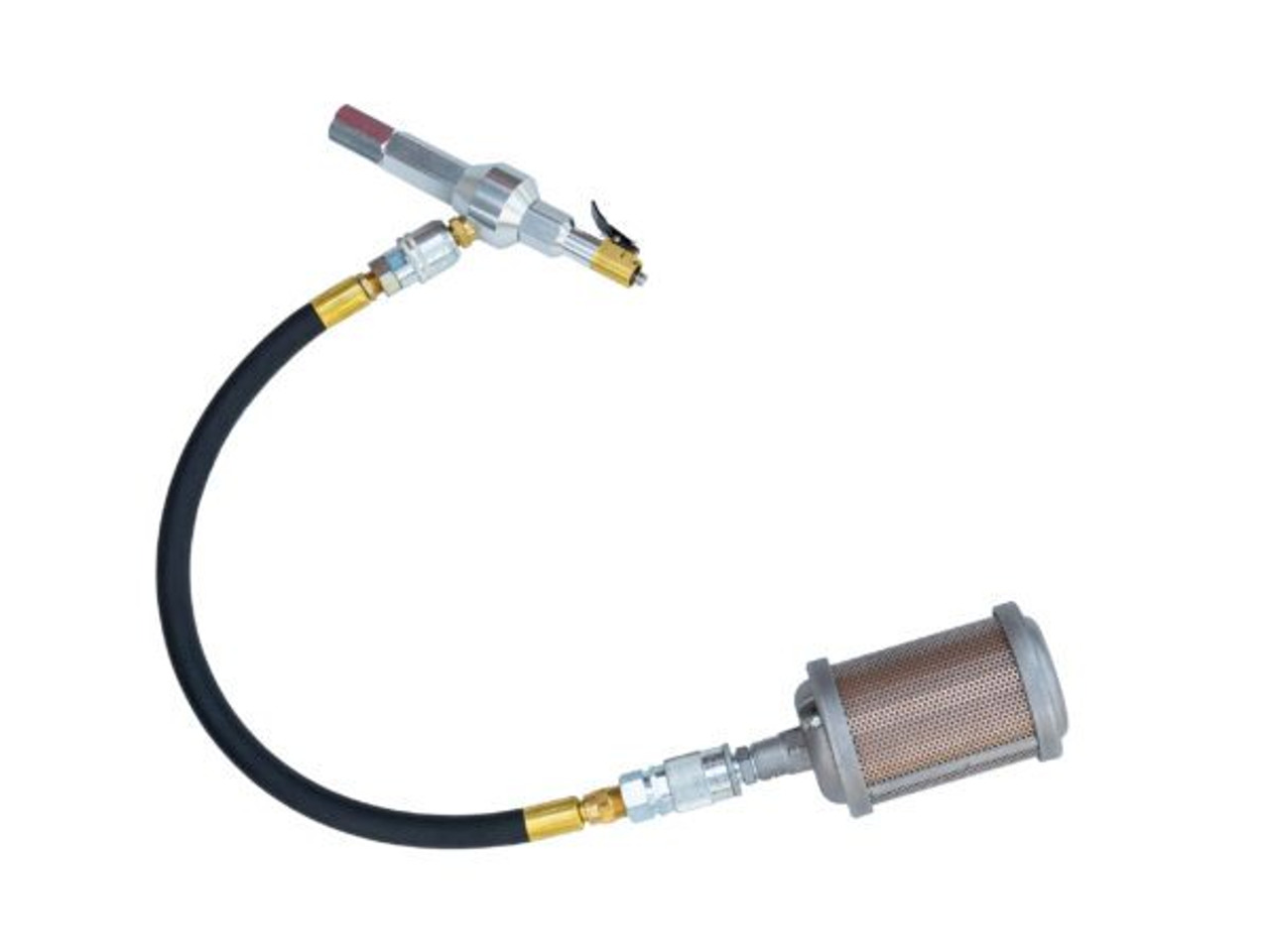

- Air Muffler
- 20” Hydraulic Hoses
- Standard Bore Core Remover and Inflation Chuck with
- Lock-on Chuck (shown on 20” hose)
- Reduces inflation time by 50%
- Features a more secure lock-on style chuck
- Made of durable steel, brass, and plastic
- 1/4 Female NPT allows easy attachment to air hose
- Ideal for nitrogen purging and inflation
- Retractable core housing allows safe removal and replacement of valve core
- 51236 Large Bore Core Remover Tool
- Prevents core loss during tire inflation and deflation (see details below)

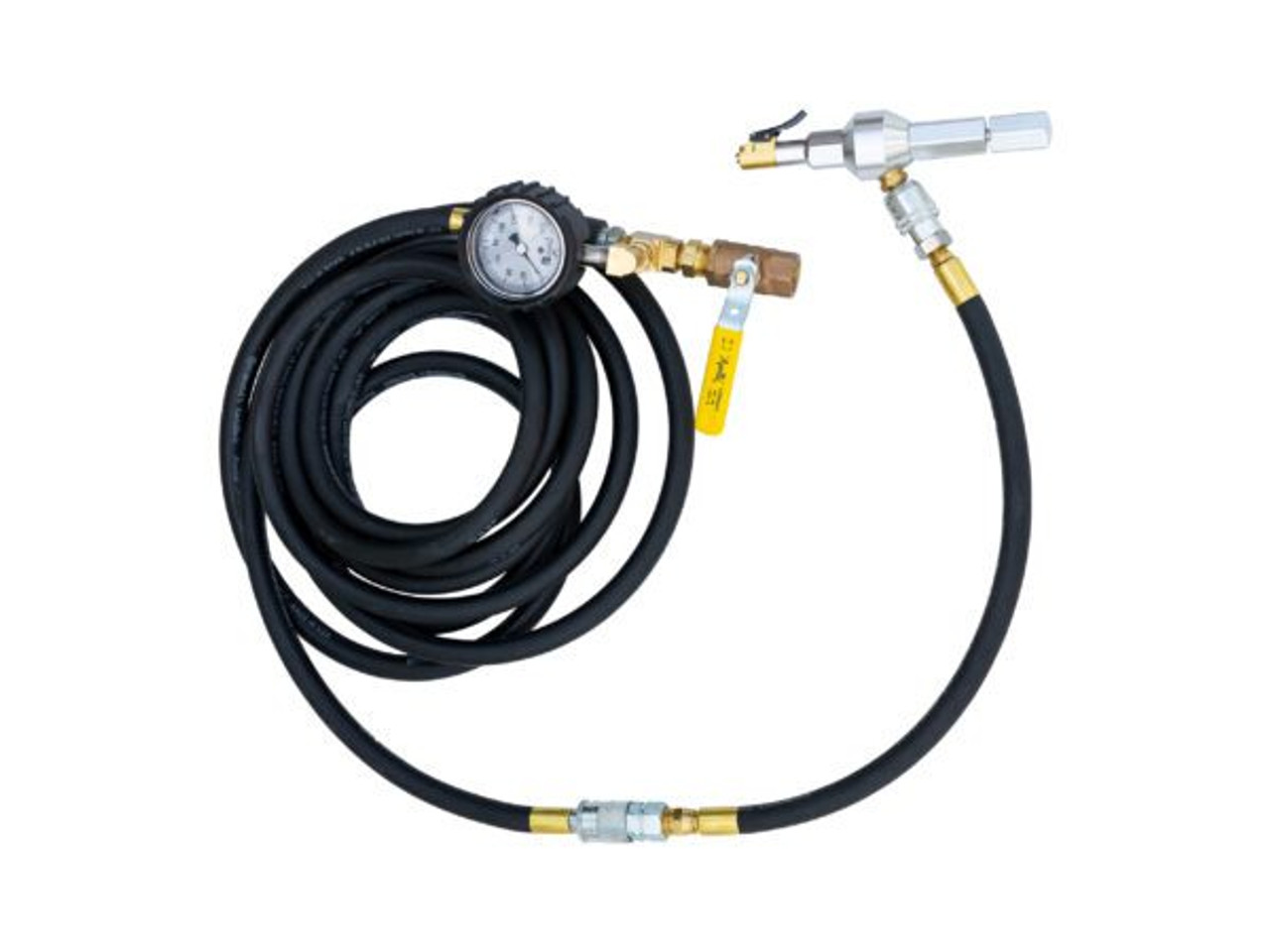

- 24682 20 ft. Inflation Hose with Liquid Dial Gauge
- Equipped with Safety Quick-Connect Coupler for fast and easy connection
- Hose rated at 300 PSI
- 1/2” Flow-Through On/Off Valve with 180 PSI Liquid Fill Gauge
