Beissbarth Titan T41 | 3-D Alignment w/ MultiFit Adapters

Product Description

Ultimate productivity - vehicle by vehicle

The T-Series is based on the existing Q.Lign platform and focuses entirely on wheel alignment. With Q.Lign T.41, workshops set the bar even higher and can thus exploit their full service potential.

Measurements at the highest level

• Camera beam measures permanently from a height of 2.8 meters
• No engine, no winch, no wear and tear
• No up, no down, no injuries or damage
• No procedure, regardless of whether short or long wheelbases

Everything in perfect view

• Four wheels, four cameras
• Separate camera for the rear axle for more precise tracking values ​​on the front axle
• Can be freely positioned within 1.8 to 3.3 meters of the front axle
• Measure and adjust stage heights from 0 to 2 meters at any time

Work smarter, not harder

• Measuring with every panel at all wheel positions reduces set-up times and clamping errors
• Active MEMS Technology for uncompromising accuracy
• Steering angle can be comfortably at ground level without a stool or ladder
• Remote access to logs from anywhere in the workshop

The world's first web-based wheel alignment device:

• Replaces the entire trolley with PC and creates more space
• Up to 95% less power consumption than PC-based systems

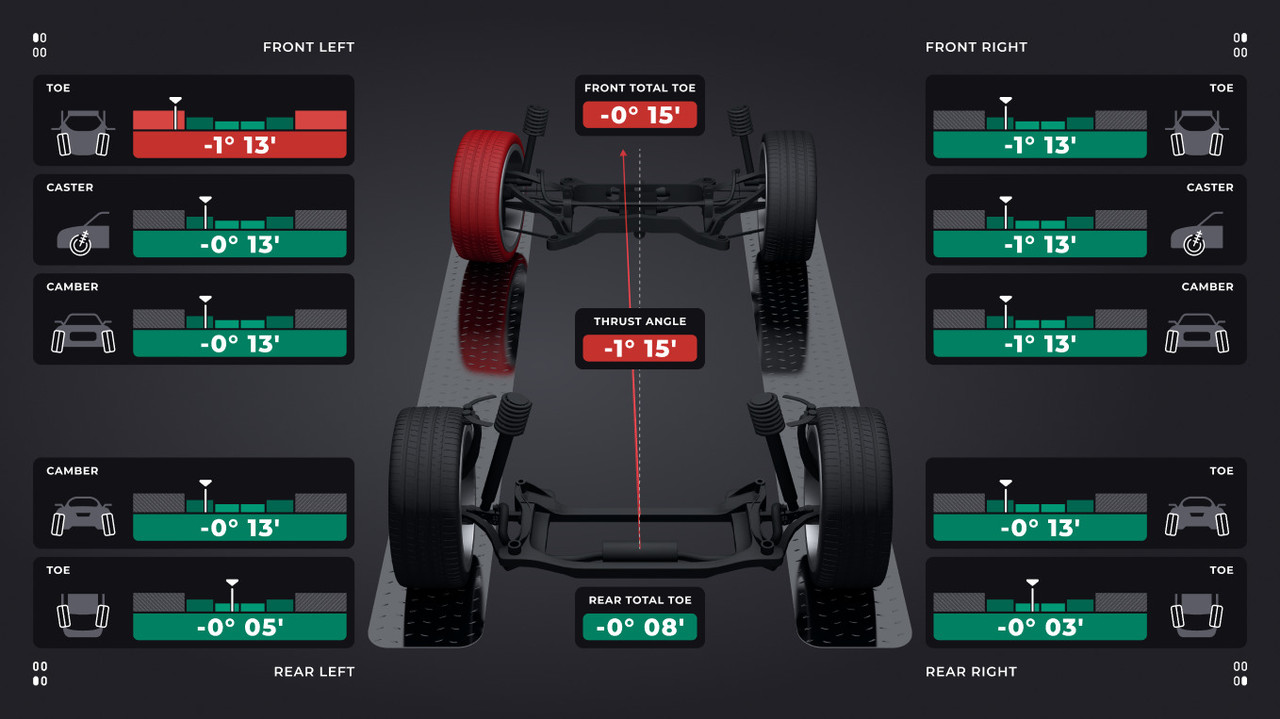

• Display the software on any TV, PC, laptop, tablet or smartphone
• Intuitive software, optimized processes, more productivity
• Easy integration of Q.Lign into the workshop network

Q.Grip: the last level before Touchless (OPTIONAL)

• Q.Grip wheel holder for attachment in seconds, without rim contact
• 5x faster than conventional holders
• No need to remove hubcaps
• No scratching of rims
• From 24" to 37" wheel diameter in under a second, without cranking

Space requirements

• At least 2800mm height
• At least clear width of 2800mm for four-post lifts

Scope of delivery:

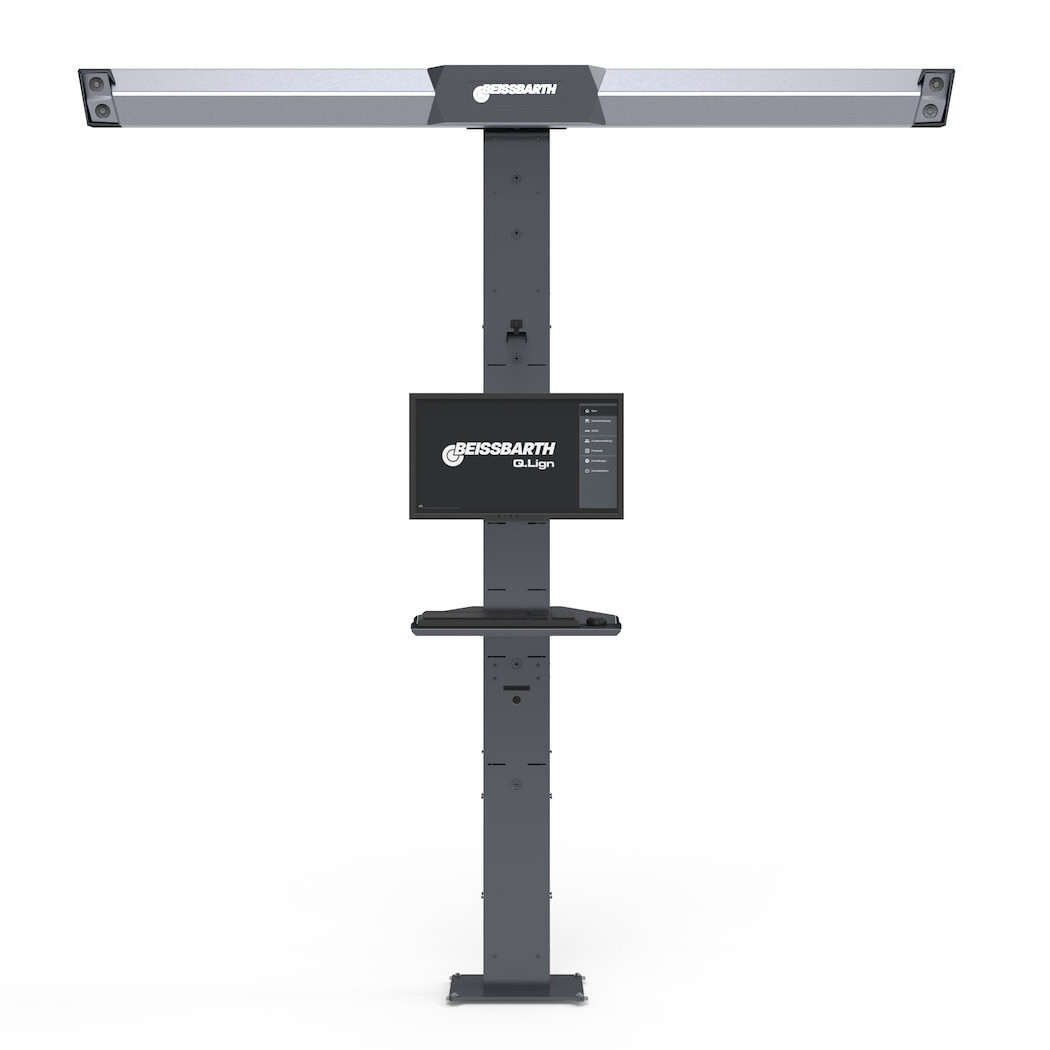

• Measuring bar with 4 cameras
• Standing column with shelf
• Q.Lign display module
• 4x measuring boards with AutoID
• 27" monitor, keyboard, mouse
• Brake tensioner and steering wheel lock
• Rotating base at the front with filling pieces

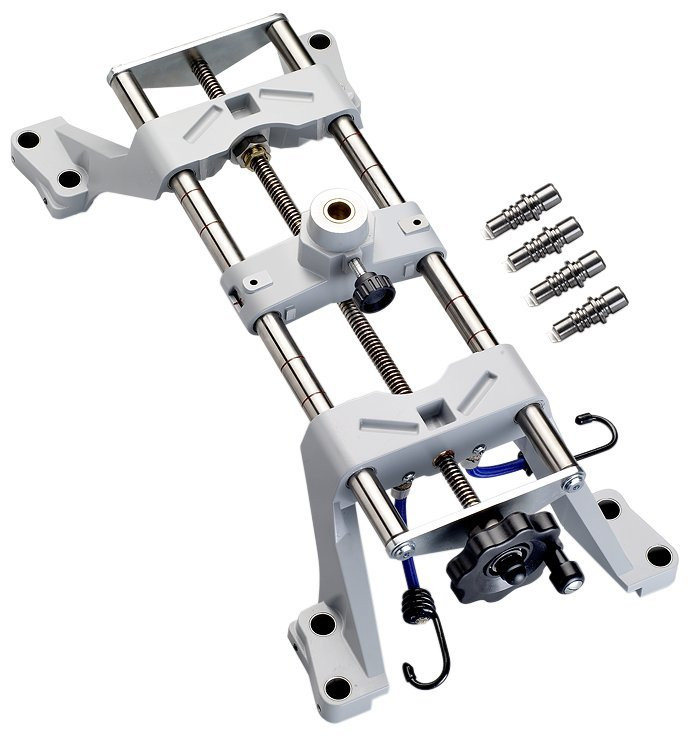

• MultiFit wheel holder (13"-22", optional up to 27")
• Bracket for MultiFit bike holder
