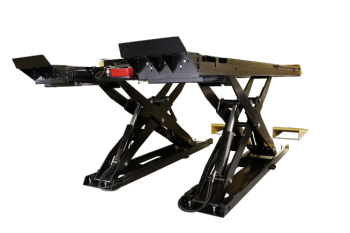

Hofmann EELR709APKG : 12,000 LB Alignment Scissor Lift

Product Description

The Hofmann 12k Scissor Alignment Lift is a rugged 12,000 lb capacity scissor alignment lift with open front design that provides easy access to alignment service and calibration areas. “Pro-Style” 24" wide runways provide easy drive-on for large vehicles. Hydraulic equalization and full support rear member deliver repeatable smooth level lifting. Flush mounted rear slip plates with heavy-duty encapsulated bearings support and offer smooth movement to ease rear alignment adjustments.

·         Adjustable turnplate pocket depth ensures level positioning of turnplates

·         Expandable approach ramps provide multi-tiered drive on approach to suit vehicle clearance and bay length. Extends up to 87". Retracts into itself 35" minimum

·         Each heavy-duty rolling jack is easy to position and provides 6,000 lbs of wheelfree^® lifting

·         Lifts straight up - no for or aft movement

·         Cross aligned heavy duty hydraulic cylinders maintain constant level lifting with supporting reinforcing rear mount cross member

·         Dual engaging twin interlocking mechanical safety racks with pneumatic release

·         Smooth lift operation with captured re-enforced glide blocks

·         Single point safety lock release system

·         Compact, enclosed control console

·         On-board Filter/Regulator/Lubricator (FRL) protects air systems

·         Powder coat finishing with non-skid runway platform surface

·         Certified to the current ANSI/ALI ALCTV:2011 lift standard

·         Flush mount model available (EELR724APKG)
