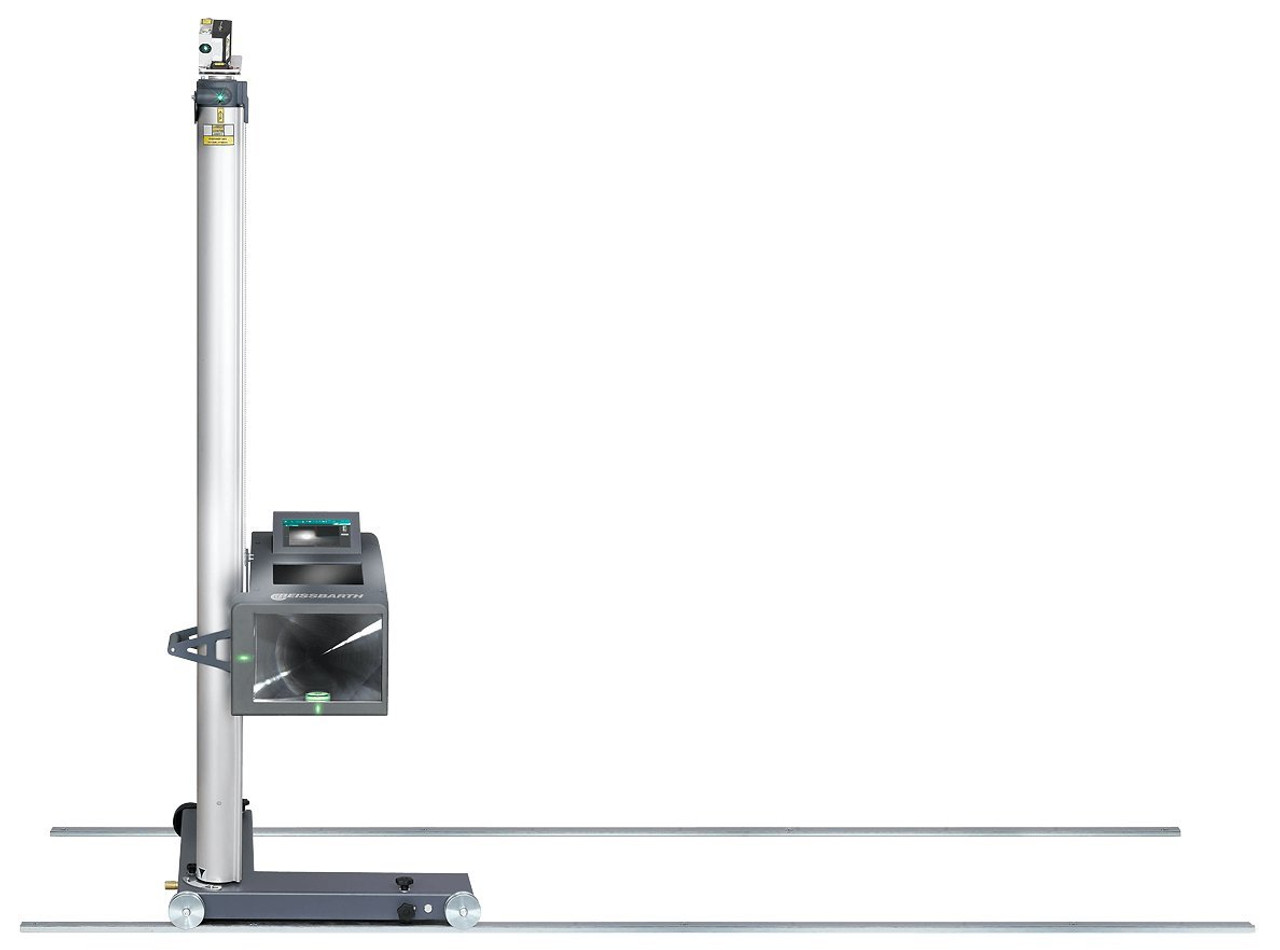

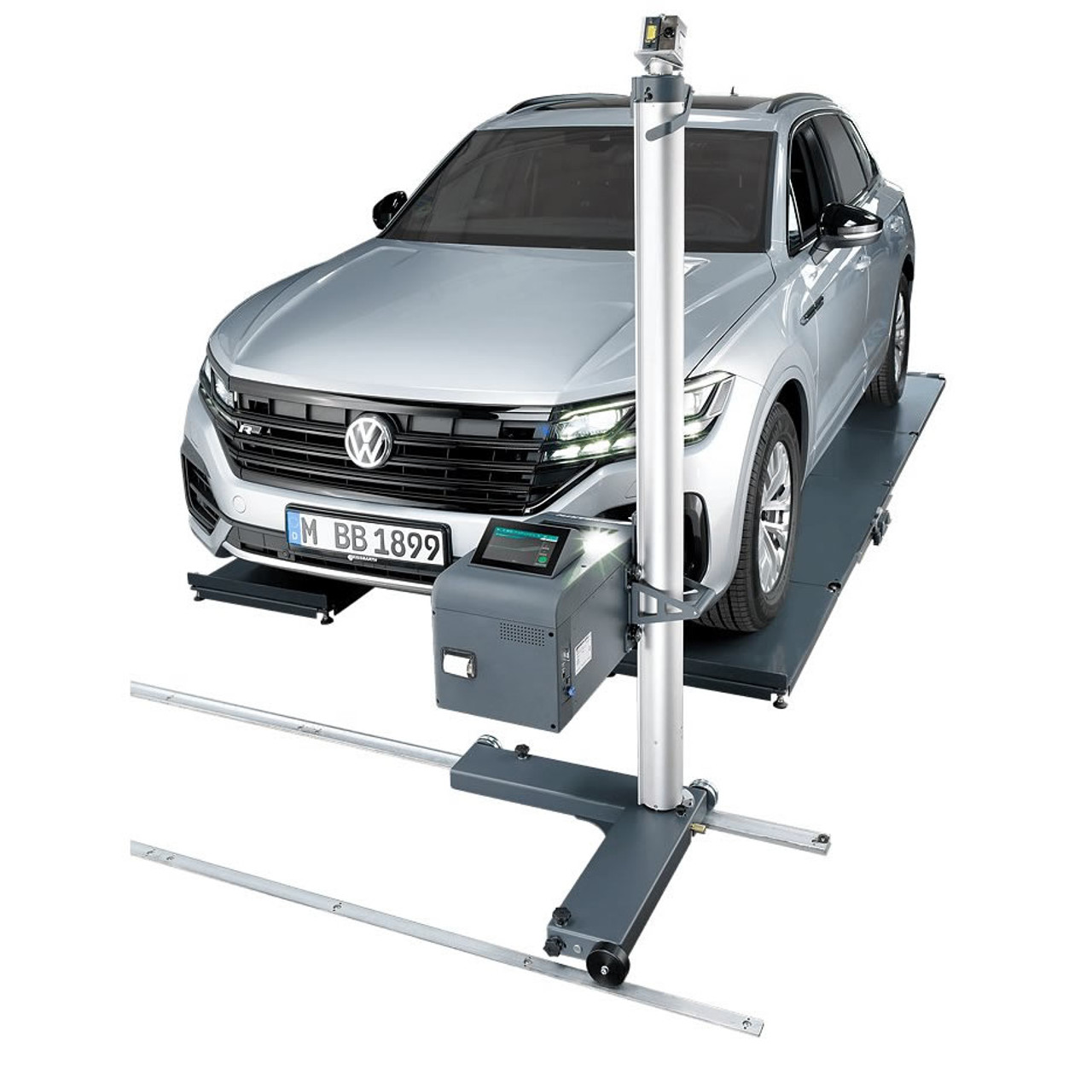

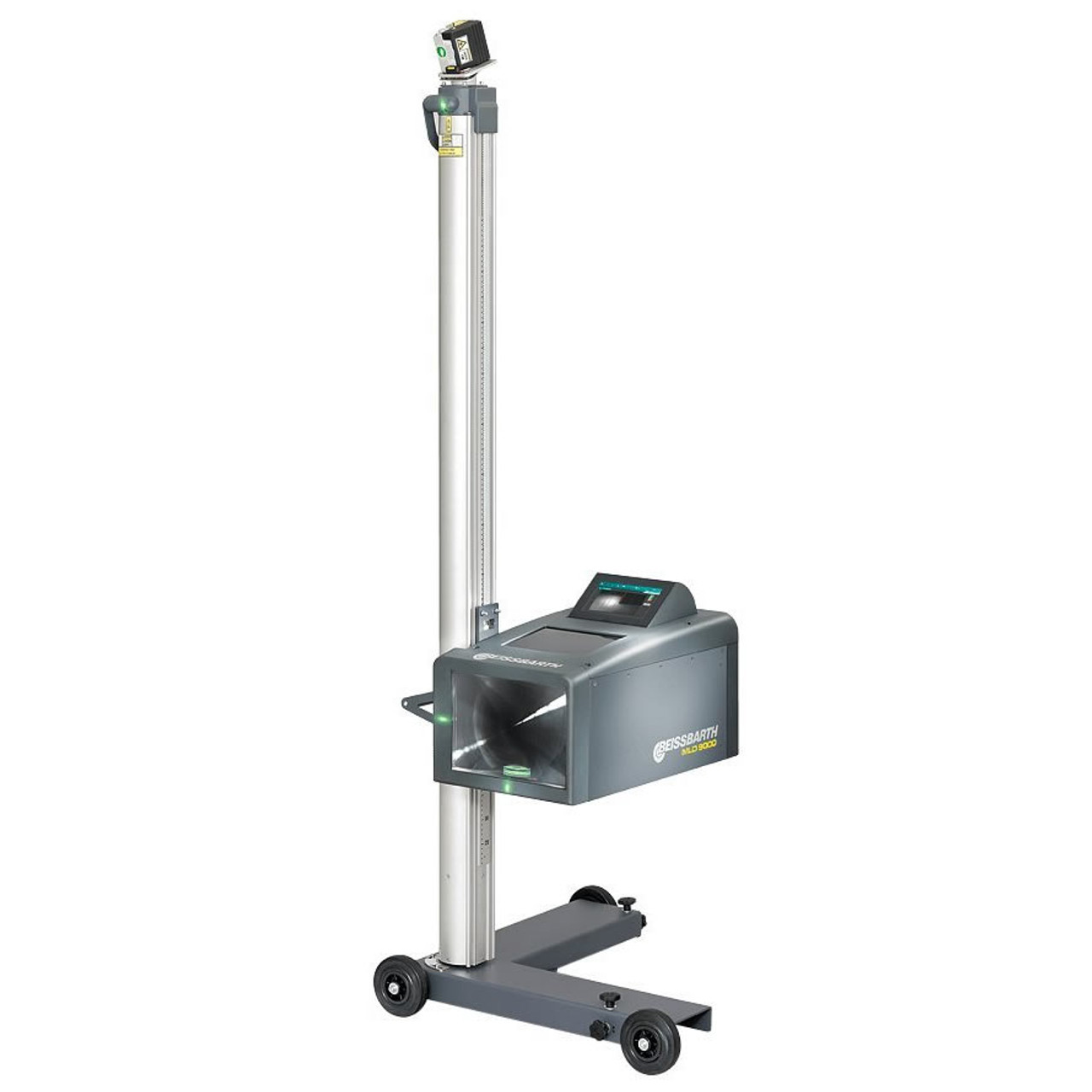

Beissbarth MLD 9000 with inclinometer - measure and adjust headlights digitally

StVZO §29 HU headlight test guideline: MLD 9000 can be calibrated in accordance with legal requirements

TÜV-certified - type approval TPN 2023-05-2208486 in accordance with guidelines for the testing of headlight alignment test devices (StVZO §50 paragraph 5)
Two-dimensional spirit level for horizontal leveling of the light box
Levelable 3-wheel trolley (fits common rail systems)

Digital headlight testing with MLD 9000: Intelligent, fast and precise

The MLD 9000 (1692104346) supports leveling accuracy using software correction via a built-in inclinometer
Precise green alignment lasers for precise alignment with the vehicle. Green laser diodes are particularly visible to the human eye because the eye has its maximum spectral sensitivity in the green range
Cross laser for precise positioning in the center of the headlight
For all light sources (xenon, bi-xenon, LED, bi-LED, halogen) and glare-free high beam systems (Dynamic Light Assist - DLA, Matrix1, HD-Matrix2, ILS Ford)
All vehicles (cars, trucks and motorcycles)
All headlights (main, fog and additional lights)
High-resolution (5 megapixel) CMOS camera for real-time digital image processing
Measurement results optimized in real time with live images
Comparison of the measured values with limit values and clear red-green assessment
Measured values storage and archiving in database
Measurement result logging possible via PDF
Time-saving quick measurement
Exact definition of the light-dark boundary without annoying blue fringes
Workshop-suitable touch screen display (7")
Continuously swiveling display for different areas of use (e.g. at the HU for testing or in the workshop for setting) and for adapting to local lighting conditions
Intuitive, simple user guidance
Visual and acoustic signals to support the measurement process
Independent thanks to battery operation
Measured values: Horizontal and vertical deviation (pitch angle), intensity, roll angle, yaw angle
Interfaces: LAN, USB, RS232
Live firmware update possible

Highest mechanical precision and durability (suitable for future legal requirements):

Newly developed, torsion-resistant and specially hardened aluminum column
Easy to use, robust sliding system for precise height adjustment and comfortable working
Robust and durable counterweight system with timing belt
Determination of the headlight installation height using an adjustable, specially made aluminum scale or using the optional height sensor
Optional: Fine adjustment of the column with 1 minute accuracy

Networking: Test results via WLAN - quickly and clearly on the PC

Screen mirroring on the workshop PC
Measurement protocol storage in the network
Connection to Bosch Connected Repair (activation for a fee)
ASA ready

Certificates: CE, TUV, EMC, FCC, FDA

Note: Vehicle-specific photographs such as Ford Matrix, Skoda Matrix, or Skoda Kink require separate activation.

Specifications

Specifications

operating temperature	5 - 45°C
Electrical connection	100 - 240V \| 50 - 60 Hz
Battery voltage (DC)	12V
Height of the light center	240 - 1500mm
Measuring range above/below	800 - -800mm
Light intensity	0 - 150000 cd
Illuminance	(1m) 0 - 150000 / (25m) 0 - 240 lx
Storage temperature	-25 - 45°C
execution	- digital
Packaging length	650mm
Packaging width	1800mm
Packaging height	700mm
Gross weight	40kg
Measuring range low beam right/left	1000 - -1000mm
Measuring range high beam right/left	1000 - -1000mm
Relative humidity storage	20 - 80%
Relative humidity application	30 - 60%
Radiation power alignment laser	≤2mW
Operating voltage for alignment laser	3 - 5V (DC)
Laser class alignment laser	2
Projection alignment laser	130° x 0.4 mrad
Laser diode alignment laser	520 +/- 5nm
Laser class cross laser	2
Projection cross laser	90° x 0.4 mrad
Laser diode cross laser	635 nm
Radiation power cross laser	5mW
Cross laser operating voltage	3 - 5V (DC)
Integrated inclinometer	- Yes
