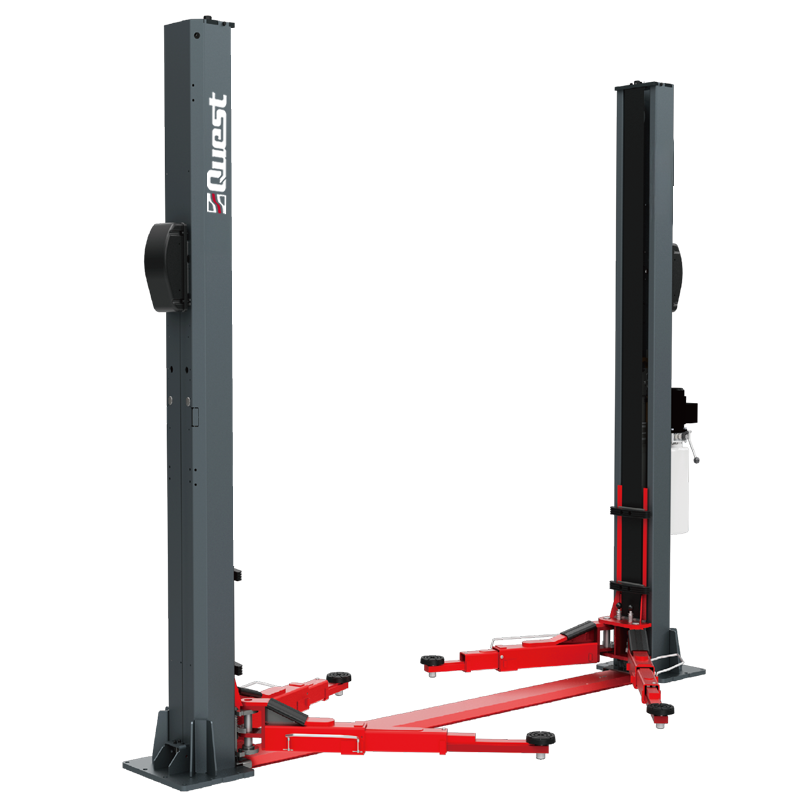

10000 lb. capacity and 9’4” overall column height, Quest Alpha45M 2-post is ideal for low ceiling applications. 3-stage front and 3-stage rear arms provide maximum sweep, arm retraction and reach. A low-profile drive-over floor plate allows for easy vehicle positioning, which makes it great for home enthusiast garages or professional service shops. The Alpha45M also features double-telescoping screw footpads, a durable powder coat finish and plated arm pins.
• Overall Height : 112”
• Overall Width : 137.1”
• Lifting Height : 78”
• Drive Through Clearance : 98”
• Single Point Lock Release
• CE Certified
Lifting Capacity : 4500kg / 10,000lbs
Lifting Time: 50s
Lowering Time: 50s
Lifting height : 80"
Lowered Pad height : 3.75"
Overall Width : 141.5" (including motor)
Overall Width : Baseplates
Weight : 1810lbs
Power Requirements : 220 / 1 Phase / 25amp
